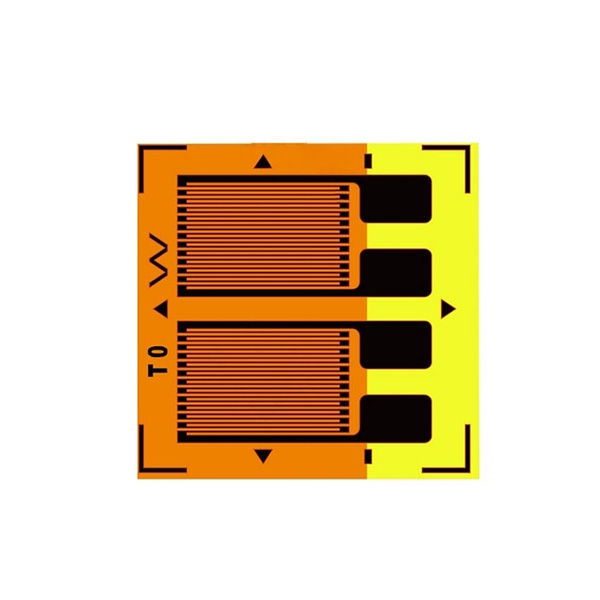

    Half Bridge Foil Type Strain Gauge

    0 review(s) | Add your review
    SKU: SUCH-SG-FB
    $12.91
    ● Resistance 350Ω / 1000Ω ● Insulation resistance ≥10⁴ MΩ ● Fatigue life (Room temperature) ≥10⁷ cycles ● Grid size/Base size: Various dimensions available
    *
    This product has a minimum quantity of 100
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Half bridge foil type strain gauge features dual parallel grids with temperature and creep compensation, providing stability and accuracy for sensors with small internal temperature gradients. Available in 350Ω or 1000Ω resistance values, SUCH strain gauge offers high insulation resistance and long fatigue life. Widely used in load cells, weighing systems, and stress analysis applications, various sizes and custom designs are available to meet specific requirements.

    Note: Various strain gauge models are available and support for customization. Please check with our customer service for detailed specs and pricing before ordering.

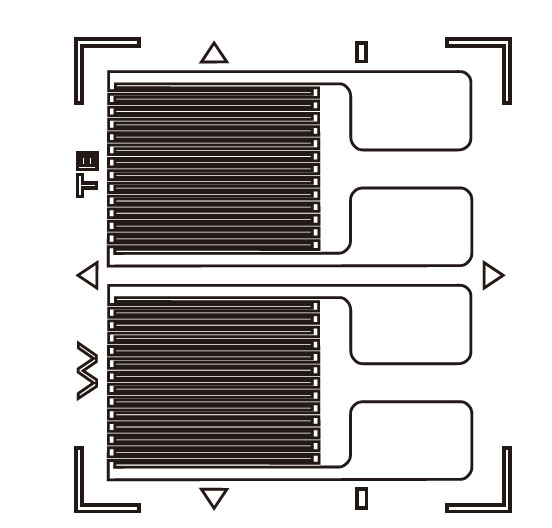

    Strain Gauge Structure Diagram

    Foil strain gauge structure diagram

    Strain Gauge Model (Unit: mm)

    Model Grid Size Backing Size
    BF(BA)350-2FB 2.0×3.2 5.7×7.7
    BF(BA)350-3FB 3.1×3.1 7.2×7.6
    BF(BA)350-4FB 4.0×2.7 8.1×6.9
    BF(BA)350-6FB 6.0×2.7 10.3×6.9
    BF(BA)1000-2FB 2.0×3.2 5.7×7.7
    BF(BA)1000-3FB 3.0×3.3 7.1×7.8
    Specs
    Resistance Nominal Value Deviation ≤±0.5%
    Resistance Average Value Tolerance ≤±0.1%
    Sensitivity Coefficient 2.0-2.2
    Sensitivity Average Value Dispersion ±1%
    Average Heat Output Coefficient 1 μm/m/℃
    Dispersion of Average Heat Output ≤30 μm/m/℃
    Insulation Resistance 104 MΩ
    Fatigue Life (Room Temp) ≥107
    Backing Material Phenolic (BF series)/ Polyimide (BA series)
    Working Temperature BF series: -30℃ to 80℃; BA series: -30℃ to 150℃
    Application
    Electronic scales

    Electronic Scale

    Medical equipment

    Medical Equipment

    Automation equipment

    Automation Equipment
