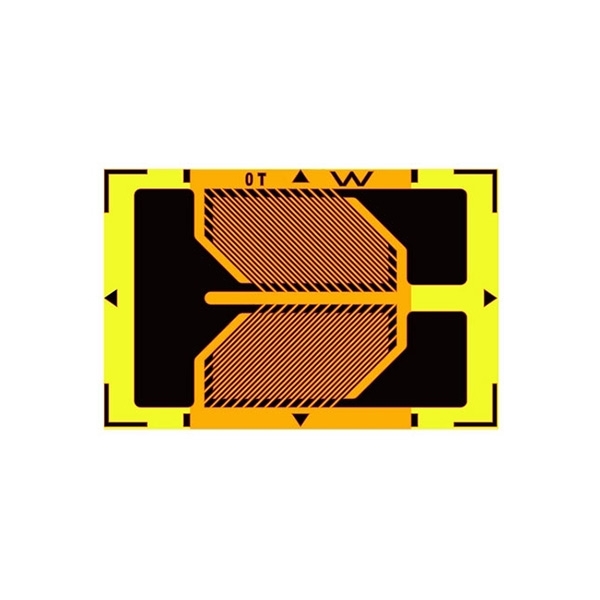

Half Bridge Shear Resistance Strain Gauge

SKU: SUCH-SG-HA

$12.91

● Resistance 350Ω/650Ω/1000Ω ● Resistance nominal value deviation ≤±0.5% ● Sensitivity coefficient 2.0-2.2 ● Fatigue life (Room temp) ≥10⁷ cycles

Model *

This product has a minimum quantity of 100

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Factory price half-bridge shear strain gauge offers high measurement accuracy and excellent stability. Available in 350Ω, 650Ω, or 1000Ω resistance values, it supports customization. Its precision-sealed construction ensures stable and reliable operation, making it suitable for various scales, industrial force measurement, stress analysis, and high-temperature melt pressure sensors. SUCH half-bridge strain gauge features a resistance deviation of ≤±0.5%, a sensitivity coefficient of 2.0-2.2, an insulation resistance of ≥10⁴ MΩ, and a fatigue life (at room temperature) of ≥10⁷ cycles, offering stable performance and a high cost-effective price.

Note: Various strain gauge models are available and support for customization. Please check with our customer service for detailed specs and pricing before ordering.

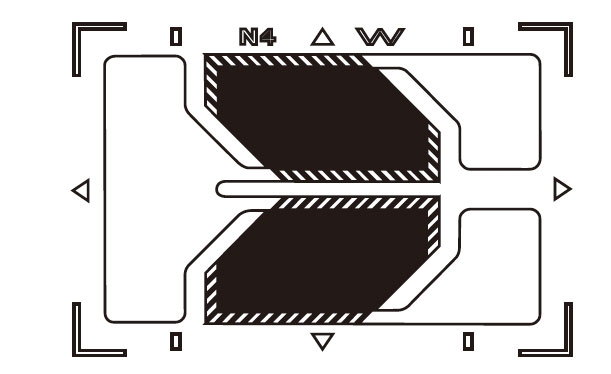

Strain Gauge Structure Diagram

Half bridge strain gauge structure diagram

Strain Gauge Model (Unit: mm)

Model	Grid Size	Backing Size
BF(BA)350-2HA	2.0×3.7	9.0×5.6
BF(BA)350-3HA	2.8×5.5	9.7×6.7
BF(BA)350-4HA	3.7×6.4	8.5×7.4
BF(BA)650-3HA	2.8×4.7	8.8×5.7
BF(BA)1000-3HA	2.8×5.5	9.7×6.7
BF(BA)1000-4HA	3.8×6.4	8.5×7.4

Specs

Resistance in OHMs	350Ω, 650Ω, 1000Ω
Resistance Nominal Value Deviation	≤±0.5%
Resistance Average Value Tolerance	≤±0.1%
Sensitivity Coefficient	2.0-2.2
Sensitivity Average Value Dispersion	±1%
Average Heat Output Coefficient	1 μm/m/℃
Dispersion of Average Heat Output	≤30 μm/m/℃
Insulation Resistance	10⁴ MΩ
Fatigue Life (Room Temp)	≥10⁷
Backing Material	Phenolic (BF series)/ Polyimide (BA series)
Working Temperature	BF series: -30℃ to 80℃; BA series: -30℃ to 150℃

Application

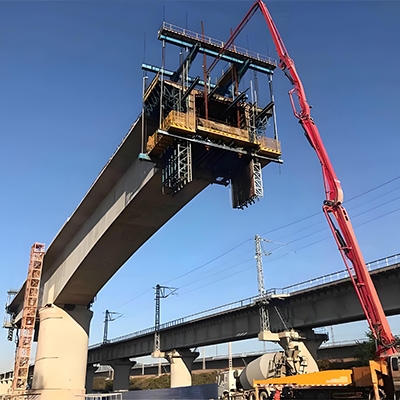

Lifting Equipment

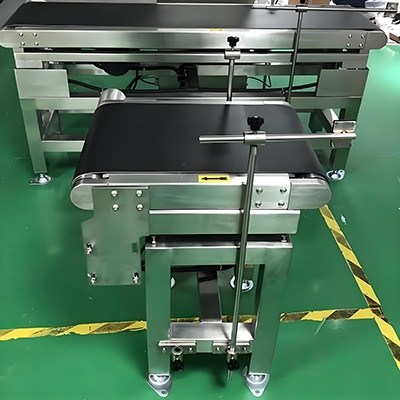

Weighing Equipment

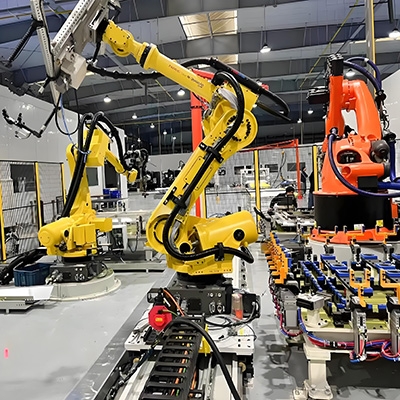

Automation Equipment

FAQ

Q1: What is the zero output of a sensor? ❯

Zero output is the potential difference between two points on the sensor's output terminals and is primarily determined by the matching of adjacent bridge arm resistors. When the bridge arm resistors are not perfectly balanced, a zero voltage will be generated even without an external force.

Q2: Why does bridge arm resistance change with temperature? ❯

Bridge arm resistance changes with temperature because the resistance of the strain gauge material fluctuates with temperature, leading to bridge arm mismatch and resulting in zero drift.

Q3: What is a temperature-compensating strain gauge? ❯

A temperature-compensating strain gauge reduces the effects of thermal output during temperature changes, minimizing resistance changes and thus reducing zero drift. While it cannot completely eliminate thermal output, it is much more stable than a conventional strain gauge.
