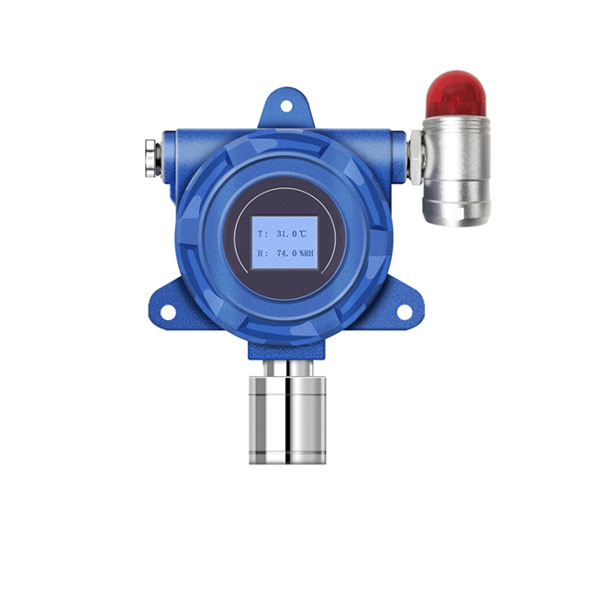

Industrial Temperature and Humidity Sensor, Explosion-proof

Industrial temperature and humidity sensor is a high-precision monitoring device designed for reliable operation in harsh and hazardous environments. It features a fully sealed explosion-proof housing for maximum safety and durability, along with a clear LCD display for real-time data reading. Operating within a wide temperature range of -20℃ to 60℃ and humidity range of 0–100% RH, it delivers accurate and stable performance with strong anti-interference capability. Supporting 4-20mA and RS485 (MODBUS RTU) outputs, this sensor ensures flexible integration with industrial control systems. Powered by 10–30V DC, SUCH temp humidity sensor is ideal for use in chemical plants, coal mining tunnels, HVAC systems, and other industrial environments requiring long-term stability and explosion-proof protection.

Feature

• High Accuracy and Stability: Industrial temp humidity sensor provides precise temperature and humidity monitoring with excellent long-term stability, ensuring reliable performance in industrial environments.
• Explosion-Proof Design: The transmitter features a fully sealed explosion-proof housing that enhances safety and durability in harsh or hazardous areas.
• Large LCD Display: Equipped with a clear LCD screen for direct real-time reading of temperature and humidity data.
  Industrial-Grade Quality: Built to withstand strong impacts, aging, and interference, delivering consistent results even in demanding applications.
• Easy Installation: External mounting holes allow quick and convenient installation, while maintaining fast response speed and high reliability.
  Infrared Remote Calibration: Supports non-contact calibration via infrared remote control, eliminating the need to open the housing for adjustments.
• Anti-Interference EMC Compliance: Designed to meet industrial EMC standards, effectively resisting electromagnetic interference for stable signal output.
• Durable Construction: Long service life with robust materials, ensuring superior resistance to corrosion and environmental stress.
• Wide Measurement Range: Suitable for precise monitoring across broad temperature and humidity ranges, ideal for industrial plants, chemical facilities, and HVAC systems.

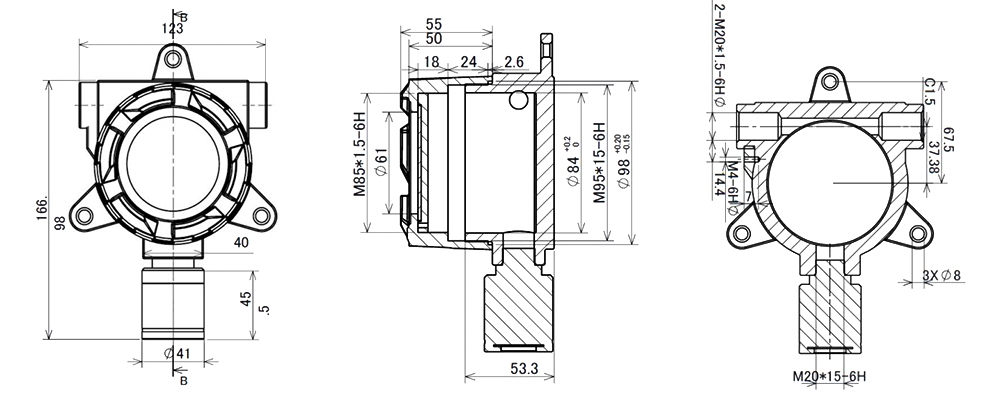

Dimension (Unit:mm)

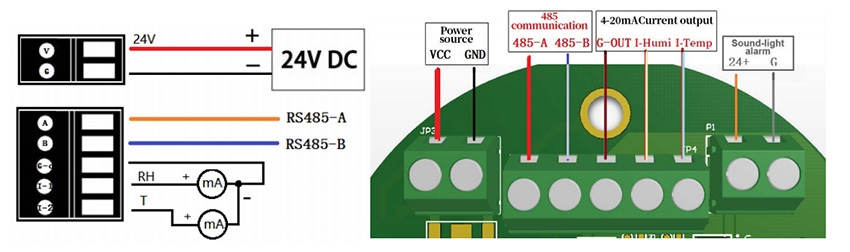

Wiring
