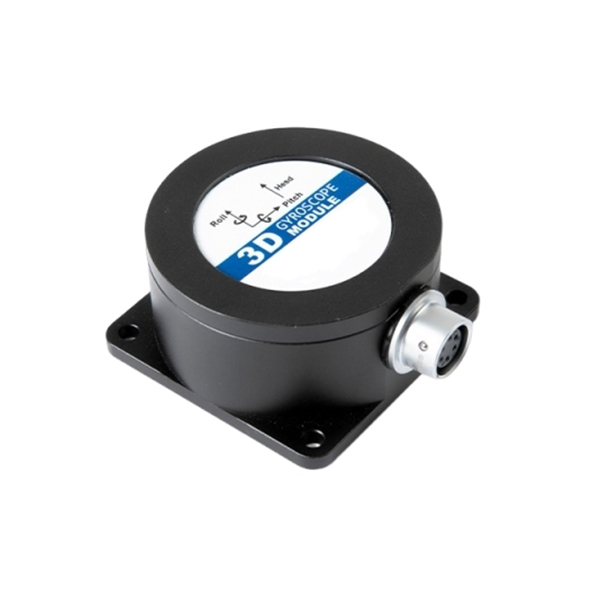

9 Axis Gyro Sensor, Acceleration/ Angular Velocity/ Angle Measurement

SKU: SUCH-GS-ML7600

$653.88

● Output Signal: RS232 / RS485 / RS422 / TTL ● Measuring Axial: X / Y / Z Axis ● Motion Measurements: Acceleration / Angular Velocity / Angle ● Waterproof Rating: IP67

Output Signal *
Acceleration Range *
Angular Velocity Range *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The 9 axis gyroscope sensor provides accurate measurements of acceleration, angular velocity. The aluminum alloy housing with a sandblasted oxidation finish offers strong resistance to corrosion and wear. The SUCH sensor provides multiple output signal options such as RS232, RS485, RS422, and TTL, ensuring seamless integration with various systems and devices across different industries.

Feature

The gyroscope sensor has an IP67 protection rating, providing full protection against dust.
It is capable of measuring acceleration, angular velocity, and angle, providing accurate motion data and orientation information.
The housing material is aluminum alloy with sandblasted oxidation, offering excellent corrosion resistance and durability for long-term stability.
The SUCH sensor supports multiple output signals, including RS232, RS485, RS422, and TTL, ensuring compatibility with a variety of devices and applications.

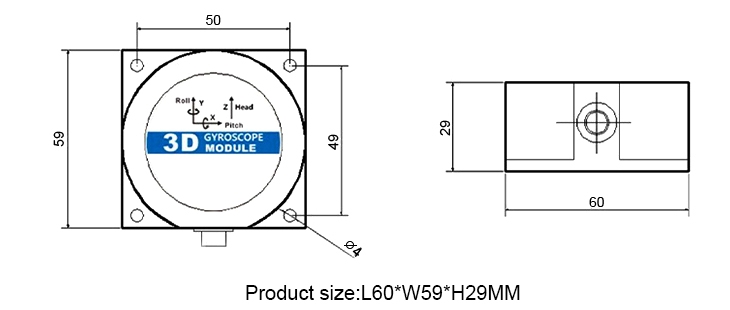

Dimension (Unit:mm)

9 axis gyro sensor dimension

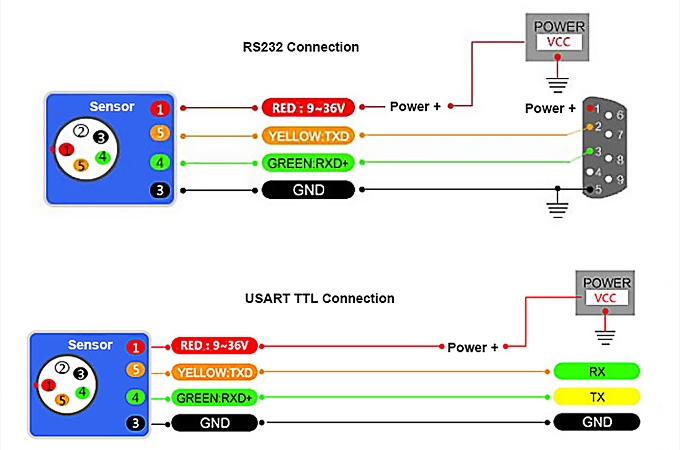

Wiring

9 axis gyro sensor wiring

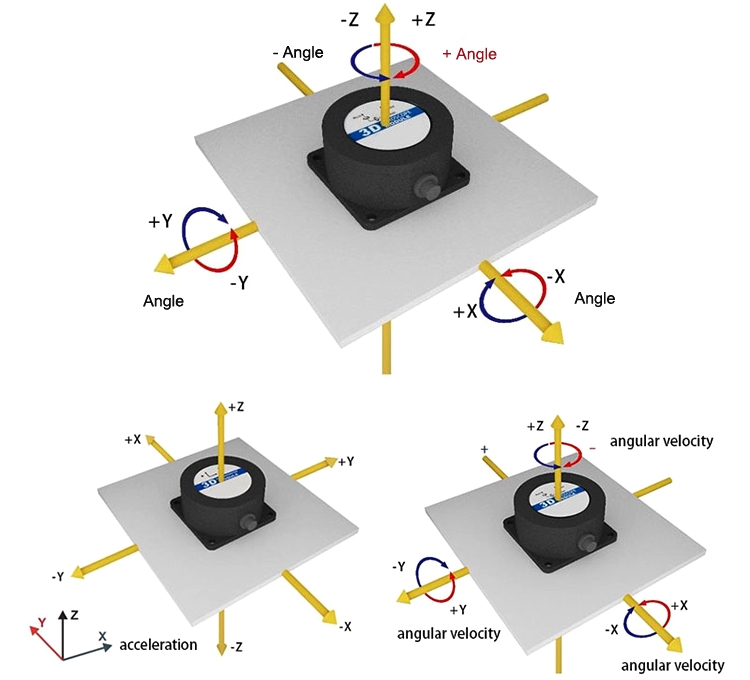

Axis Direction

9 axis gyro sensor direction

Specs

Measuring Axial	X / Y / Z axis
Measuring Range	Angle: ± 180°
	Acceleration: ± 2 / 4 / 8 / 16g
	Angular velocity: ± 50 / 150 / 300 / 450 / 1200 / 2000°/s
Sampling Bandwidth	> 1000Hz
Resolution	Angle: ± 0.01°/s
	Acceleration: ± 0.001g
	Angular velocity: ± 0.005°/s
Temperature Compensation	Full temperature range, -45℃ to 85℃
Power-on Startup Time	0.5s
Auto Output Rate	5Hz output, 15Hz, 35Hz, 50Hz can be set (RS485 without this function)
Output Signal	RS232 / RS485 / RS422 / TTL
Average Trouble-Free Operating Time	≥ 45000 hours/time
Negative Tenderness	20000g, 2ms, ½ sine
Vibration Resistant	10grms, 10-1000HZ
Waterproof Rating	IP67
Cable	Standard 1.5 meters length, wear-resistant, oil-resistant, wide temperature, shielded cable 5*0.2mm²
Connector	6-pin aviation plug
Tolerance Load	1000
Operating Voltage	9-36V
Operating Current	40mA
Operating Temperature	-40℃ to 85℃
Storage Temperature	-55℃ to 125℃
Connector	Lead wire (1.5m) or waterproof aviation socket
Housing Material	Aluminum alloy sandblasted oxidation
Mounting	Four M4 screws
Dimensions	605929mm
Net Weight	180g

Application

AGV

GPS Integration

Robotics

FAQ

Q1: How does the 9 axis gyro sensor measure acceleration and angular velocity? ❯

The sensor uses built-in accelerometers to measure linear acceleration along the X, Y, and Z axes and gyroscopes to measure angular velocity around those same axes. By combining these readings, the sensor can provide a detailed understanding of both linear and rotational motion.

Q2: Can the sensor be used in extreme temperatures? ❯

The sensor is designed to operate in a wide temperature range. However, we recommend checking the specifications for the exact operating temperature limits to ensure it meets the requirements of your specific application.

Q3: What is the lifespan of the 9-axis gyro sensor? ❯

With its durable aluminum alloy housing and robust construction, the sensor is built to last for many years, even in demanding environments. The lifespan will depend on factors such as usage conditions and maintenance, but it is designed for long-term reliability.
