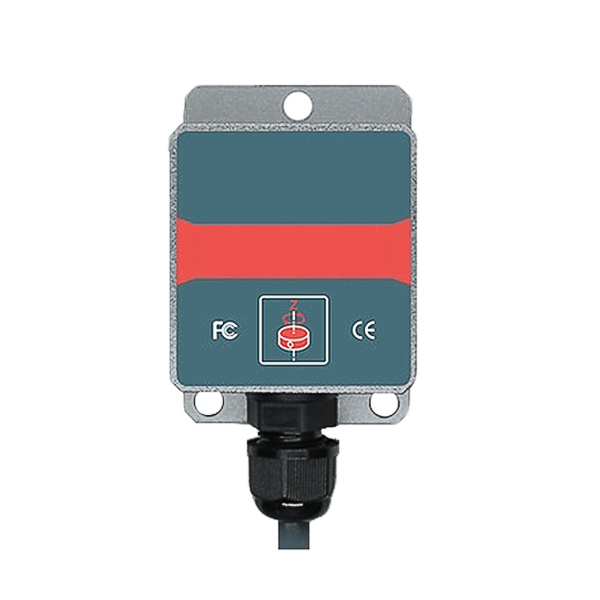

Small Gyroscope Sensor, 6 Axis, CAN 2.0A/B

The small 6-axis gyroscope sensor is a compact and lightweight solution, perfect for easy integration into AGVs. It offers a resolution of 0.01° and a non-linearity of only 0.1% of FS, ensuring exceptional measurement accuracy. The SUCH gyroscope sensor provides real-time angular output, offering precise ±180° azimuth and angular rate data, essential for accurate navigation.

Feature

• The small gyro sensor boasts a compact design with a lightweight 90g housing, making it easy to integrate into AGVs.
• With superior temperature stability, this high-precision MEMS gyroscope ensures reliable performance across a temperature range of -40°C to +80°C and has a lifespan of 10 years.
• The SUCH gyrometer sensor provides real-time angular output, delivering precise ±180° azimuth and angular rate data for accurate AGV navigation.
• It offers two output signal options, CAN 2.0A and CAN 2.0B.

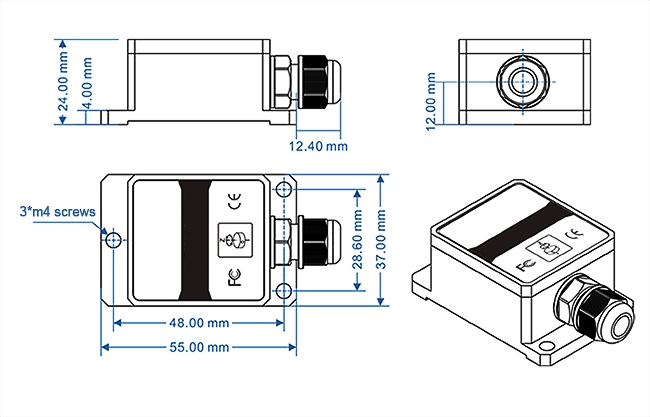

Dimension (Unit:mm)

Installation

The gyroscope sensor should be mounted as close to the center of the object being measured as possible to minimize the impact of linear acceleration on measurement accuracy. The mounting surface should be kept parallel to the object being measured to minimize the effects of dynamic forces and acceleration on the inclinometer. Improper installation can lead to measurement errors, especially regarding the "surface" and "line":

• Ensure the digital gyro mounts securely and flatly to avoid measurement errors from uneven surfaces. See Figures ① and ②.
• The electric gyro's axis must be parallel to the measured axis, with minimal angle between the two axes. See Figures ③ and ④.
