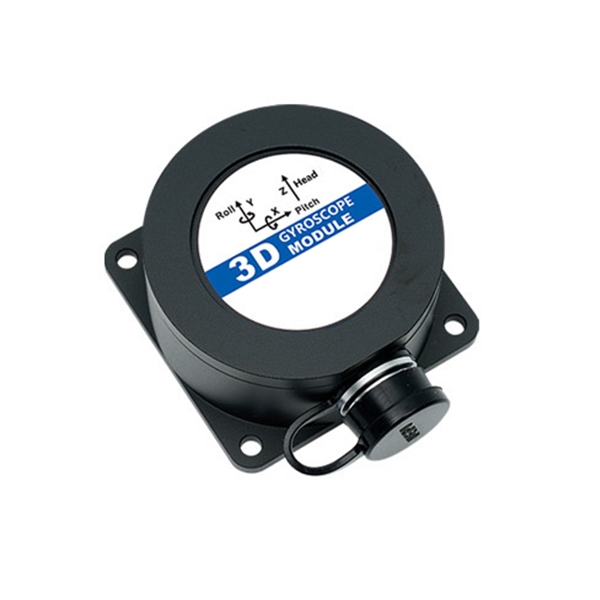

3 Axis Gyro Sensor, Angle Measurement

The 3 axis gyroscope sensor delivers precise angle measurement along three axes and offers multiple output signal options, including 0-5V, 0-10V, 0-20mA, and 4-20mA. Housed in a durable aluminum alloy shell, the SUCH sensor is impact-resistant, anti-interference, and rainproof. With an IP67 waterproof rating, it is fully protected against dust and water, making it ideal for industrial and outdoor applications such as robotics and drones.

Feature

• The gyroscope sensor features an aluminum alloy shell that offers high strength, impact resistance, anti-interference properties, and rainproof capabilities, ensuring reliable and durable quality.
• It is equipped with an aviation connector, which is waterproof and moisture-proof, providing excellent stability and high sensitivity.
• The SUCH sensor uses a signal shielding cable that is strong and durable, capable of withstanding tensile stress, bending, and swinging, and has passed rigorous testing for quality assurance.

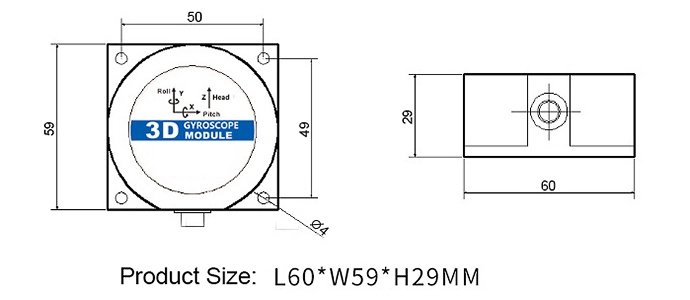

Dimension (Unit:mm)

Wiring

Note: The gyro sensor outputs standard voltage signals of 0-5V, 0-10V, and standard current signals of 4-20mA, 0-20mA, corresponding to the minimum and maximum measurement ranges for angle detection. To calculate the angle, simply apply the corresponding ratio to obtain the accurate angle value.

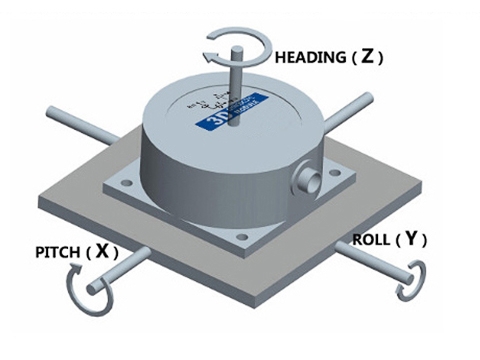

Axis Direction

The gyro sensor is primarily used to measure the deflection angle of moving objects. This product is not affected by magnetic field interference, allowing it to accurately measure yaw angles even in magnetic field areas. By simply setting the desired zero-offset angle, it can replace the functionality of an electronic compass without being influenced by magnetic fields.

Note: It can measure the fastest rotational speed of up to 300°/s. Please do not exceed this limit during use, as doing so could lead to measurement overload, causing significant integration errors and resulting in larger output angle errors.
