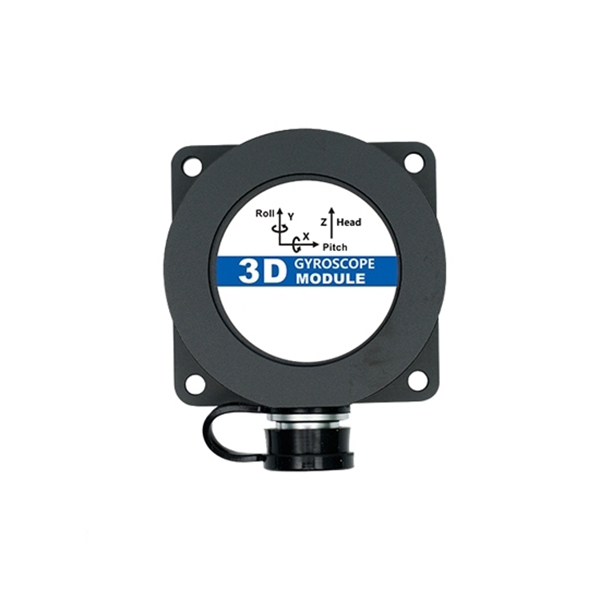

6 Axis Gyro Sensor, Acceleration/ Angle Measurement

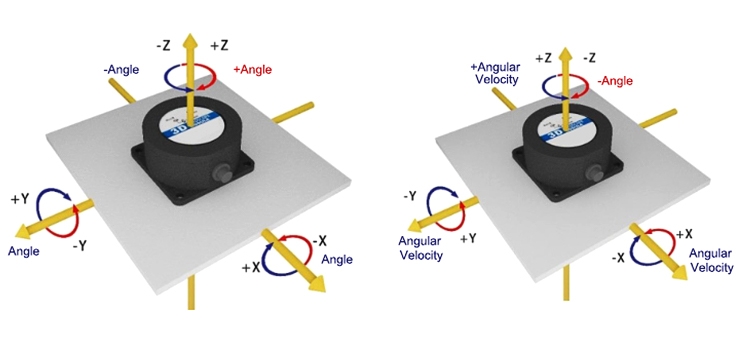

A 6-axis gyro sensor is a motion-sensing device that combines both a gyroscope and an accelerometer to measure an object’s rotational and linear movements in three-dimensional space. It can measure angular velocity (via the gyroscope) and linear acceleration (via the accelerometer) along the X, Y, and Z axes. The sensor provides data on angular orientation and acceleration, making it suitable for applications like robotics, automotive systems, and drones.

The 6-axis gyro sensor measures rotational velocity (angular velocity) along three axes using the gyroscope. To determine the angle, the system integrates the angular velocity over time. Since the accelerometer can detect linear acceleration and the force of gravity, it can assist in determining the orientation of the object, helping to refine angle measurements and correct for drift.

Sensor drift refers to the gradual deviation in the sensor readings over time, often caused by factors such as temperature changes, mechanical wear, or electronic noise. In a 6-axis gyro sensor, drift in the gyroscope can lead to cumulative errors in angle measurements, while the accelerometer might experience errors in static orientation measurements. To mitigate drift, sensor fusion algorithms (such as Kalman filtering) are used to combine data from both the gyroscope and accelerometer, providing more accurate and stable measurements over time.
