Industrial Gyroscope Sensor, 1/2/3 Axis, 4-20mA

0 review(s) | Add your review

SKU: SUCH-GS-TL618D

$760.16

● Output Signal: 4-20mA ● Non-linearity: 0.1% of FS ● Resolution: 0.1°/s ● Waterproof Rating: IP67

Measuring Range *
Measuring Axis *
Measuring Direction *
Measuring Direction *
Measuring Direction *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The industrial gyroscope sensor offers precise angular velocity measurement across 1, 2, or 3 axes with a 4-20mA output. With an IP67 waterproof rating and temperature compensation technology, it is highly reliable in harsh environments and offers long-term stability. The SUCH gyro sensor is lightweight, vibration-resistant, and offers EMI protection, making it ideal for industrial applications that require high performance and durability.

Feature

The gyro sensor features temperature compensation technology, ensuring excellent thermal stability and a long service life.
This SUCH sensor offers high performance, waterproofing, vibration resistance, lightweight design, and electromagnetic interference (EMI) protection.
It is also cost-effective and features a compact design.

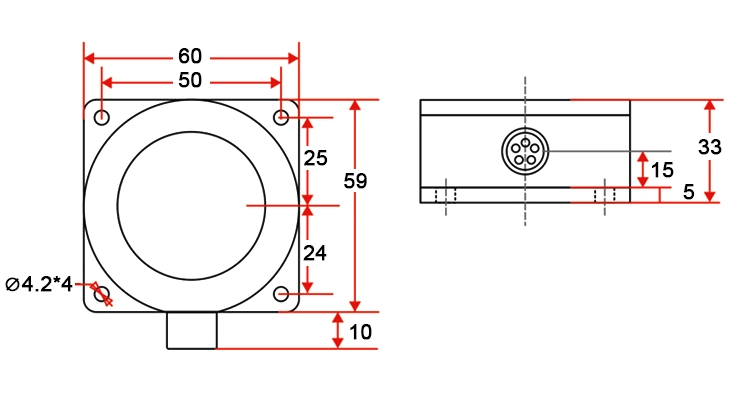

Dimension (Unit:mm)

Industrial gyroscope sensor dimension

Specs

Measuring range	±50°	±150°	±300°
Measuring axis	X, Y, Z (Optional)
Analog Sampling Bandwidth	> 2000Hz
Resolution	0.1°/s
Non-linearity	0.1% of FS
Temperature Drift	< ±0.1°/s, /℃
Startup Time	5s
Input Voltage	9-36V
Output Current	4-20mA
Zero Bias Voltage	12mA (± 0.02mA)
Scale Factor	0.16mA°/s	0.0533mA°/s	0.0266mA°/s
No-load Current Consumption	20mA
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +100°C
Capacitive Load	1000Pf
Vibration	5-10g
Time Drift	20°/h
Shock	200g pk, 2ms, ½ sine
Operating Lifetime	11 years
Mean Time Between Failures (MTBF)	≥50000 hours / times
Iusulation Resistance	≥ 100 MΩ
Shock Resistance	100g @ 11ms, Three-axis and Same (Half-sine)
Vibration Resistance	10g rms, 10-1000Hz
Waterproof Rating	IP67
Connector	5 pins Aviation Socket, Standard 1m Cable
Weight	110g (Excluding Cable)

Application

AGV

GPS Integration

Robotics

FAQ

Q1: How does the sensor handle temperature fluctuations? ❯

The gyroscope sensor incorporates temperature compensation technology, which ensures stable performance even in extreme temperature conditions. This technology helps mitigate the effects of temperature-induced drift, making the sensor reliable across a wide range of environments.

Q2: What is a gyroscope sensor used for? ❯

A gyroscope sensor is primarily used to measure the angular velocity or rotational movement of an object. It helps track motion and orientation in a wide range of applications, including robotics, automotive systems, drones, and smartphones.

Q3: What are the key features of this gyroscope sensor? ❯

This gyroscope sensor is designed for high performance with precise angular velocity measurement. It features waterproofing for use in harsh environments, vibration resistance to ensure stability under movement, and electromagnetic interference (EMI) protection to minimize data distortion. Additionally, it has a lightweight design for easy integration and offers long-term durability with low power consumption, making it suitable for both demanding and cost-effective applications.
