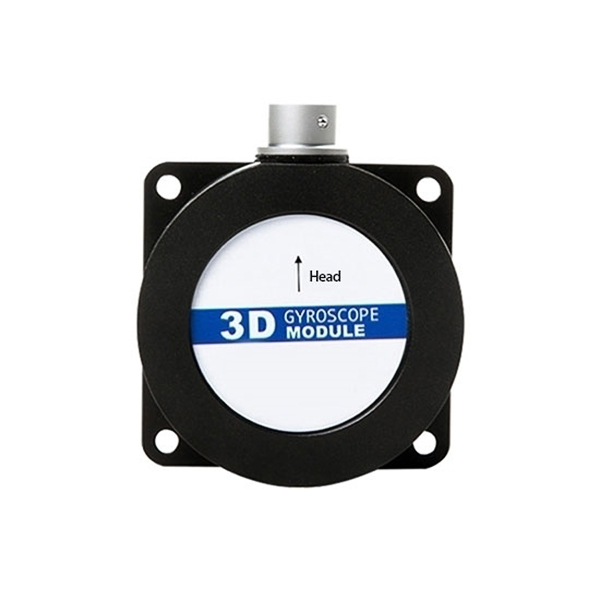

Electronic Gyroscope Sensor with Multi-Interface Output, 1 Axis

The electronic gyroscope sensor is a durable and high-performance sensor designed for precision angular velocity measurement. It features multiple output options, including RS232, RS485, RS422, TTL, and CAN, offering flexible integration for various systems. Certified to CE, FCC, and RoHS standards, it ensures compliance with international safety and environmental regulations. Additionally, its low power consumption and excellent bias stability ensure reliable and efficient performance.

Feature

• The gyro sensor is designed to be corrosion-resistant, wear-resistant, waterproof, and shockproof, ensuring reliable performance in harsh environments.
• This SUCH sensor features low power consumption, resistance to impact and vibration, and outstanding bias stability, making it suitable for demanding applications.
• It supports a variety of output signals, including RS232, RS485, RS422, TTL, and CAN, providing flexible integration options for different systems.

Dimension (Unit:mm)

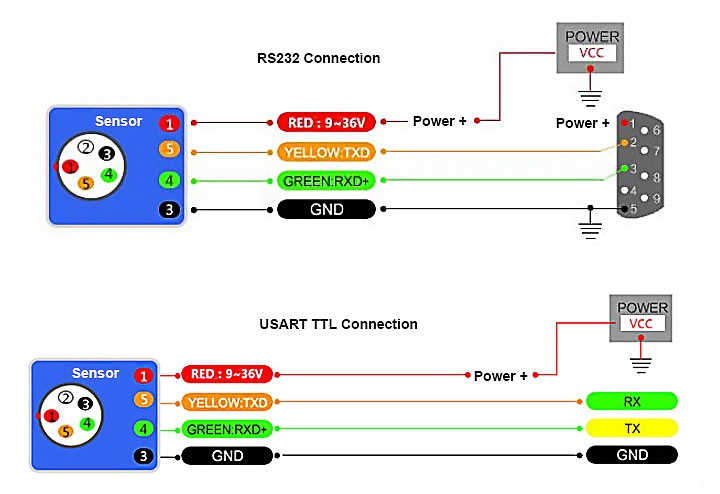

Wiring

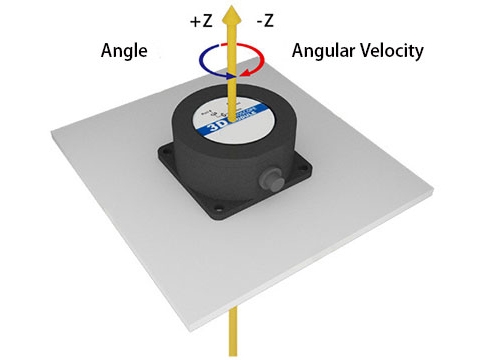

Axis Direction

Note: The sensor is unaffected by magnetic fields and can accurately measure yaw angles in magnetic environments. By simply setting the required zero-bias angle (±180°/0-360°), it can replace the electronic compass function without being influenced by magnetic fields.
