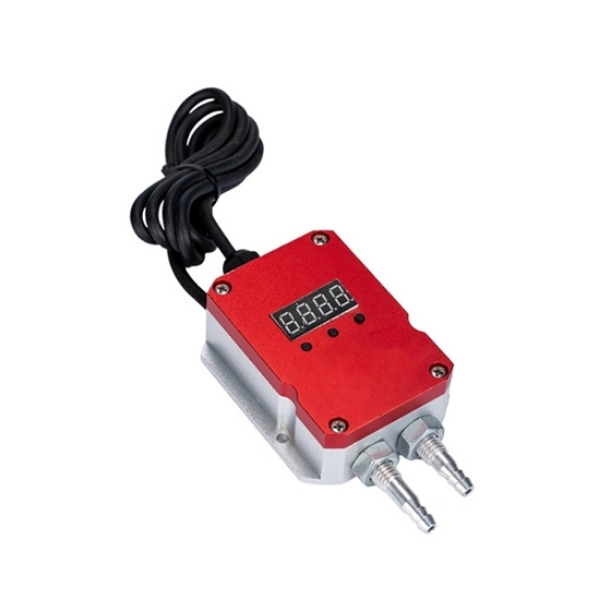

Digital Air Differential Pressure Sensor, 4-20mA/0-5V/RS485

SKU: SUCH-DPS-DIGITAL

$157.21

● Multiple output signal options 4-20mA/0-5V/0-10V/RS485 ● Measurement range -100kPa to +100kPa (optional) ● Power supply 12-36V DC (standard 24V DC) ● Interface sizes available: 8mm/6mm/4mm

Measuring Range *
Output Signal *
Port Size *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH digital air differential pressure sensor measures the differential pressure between two points in a gas or air system. It supports a variety of output signals (4-20mA, 0-5V, 0-10V, RS485). The measurement range is selectable from -100kPa to +100kPa, and the power supply voltage is 12-36V DC (standard 24V DC), meeting diverse application requirements. Interface options include 8mm, 6mm, and 4mm, providing flexible and convenient installation. This sensor is widely used in heating, ventilation, and air conditioning (HVAC) systems and industrial automation.

Feature

Simple structure and easy installation: Compact design, high reliability, and elegant appearance make it suitable for rapid deployment in a variety of environments.
Pagoda-shaped connector design: Supports positive, negative, and differential pressure measurements, offering flexible and simple connection options.
High Precision and Wide Compatibility: Offers excellent anti-interference performance, precise measurement, and compatibility with a variety of output signals and control systems.

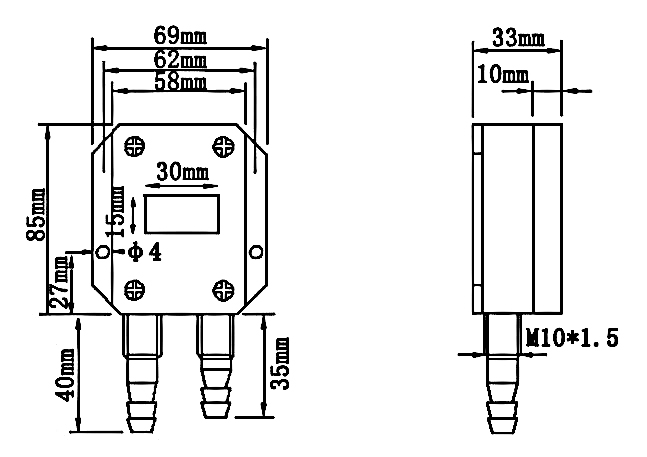

Dimension (Unit: mm)

Digital differential pressure sensor dimension

Wiring Diagram

Digital differential pressure transmitter wiring diagram

Specs

Measuring Range (Optional)	-100kPa~100kPa
Output Signal (Optional)	4-20mA, 0-5V, 0-10V, RS485
Connection Thread (Optional)	8mm, 6mm, 4mm
Power Supply	12~36V DC (Standard 24V DC)
Compensation Temperature	0~50℃
Measuring Accuracy	0.5%FS, 0.2%FS
Ambient temperature	-20℃~85℃
Working Temperature	-20℃~70℃
Long-Term Stability	±0.2%FS/year
Measuring Medium	No Corrosive Air
Overload Pressure	Minimum Withstand Pressure 2kPa, Maximum Withstand Pressure Less Than 2.5 Times of Measuring Range

Application

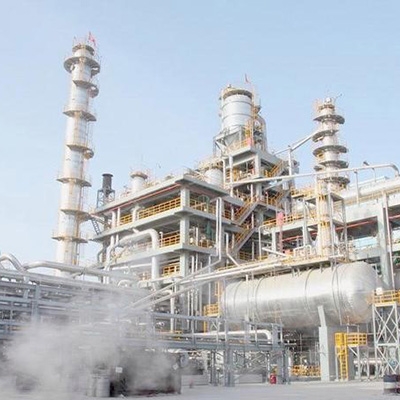

Chemical Plant

Natural Gas

Machinery Industry

FAQ

Q1: What is the importance of a differential pressure sensor in a system? ❯

It provides accurate pressure change data, helping ensure efficient and safe system operation.

Q2: How is a differential pressure signal generated? ❯

When the pressures at the two ports differ, the diaphragm bends. This bending changes the sensor's capacitance, resistance, or piezoelectric properties, generating a measurable electrical signal.

Q3: What output signals does the digital differential pressure sensor support? ❯

Available signal types include 4-20mA, 0-5V, 0-10V, and RS485, making it easy to connect to various control and monitoring systems.
