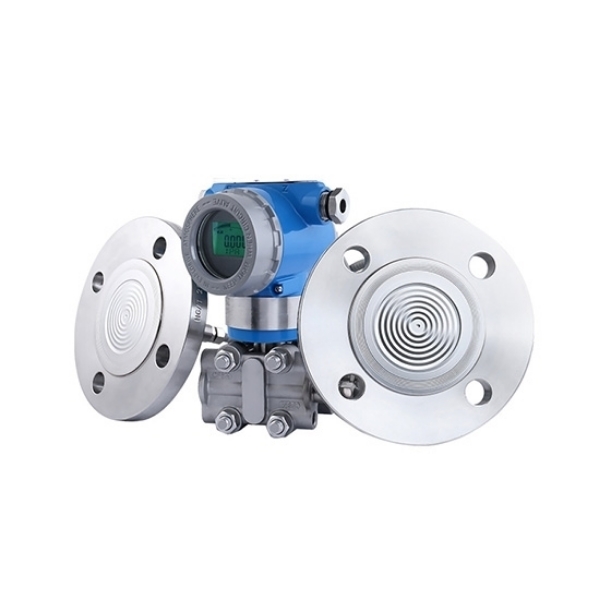

Flange Mounted Differential Pressure Transmitter, Explosion Proof

Explosion-proof flange-mounted differential pressure transmitter adopts a single-crystal silicon resonant sensor and dual-flange capillary structure for mechanical and thermal isolation, offering a measurement range from -40kPa~40kPa to 1 MPa, 4-20mA output with HART protocol compatibility, IP66 protection, and multiple explosion-proof options including intrinsic safety, dust intrinsic safety, flameproof, and flameproof dust types. SUCH explosion-proof differential pressure sensor is suitable for measuring the level, volume, density, and differential pressure of liquids, gases, and steam in corrosive, high-temperature, and other challenging environments, with customization available to meet specific customer requirements.

Feature

• Core Technology: Uses a single-crystal silicon core with high precision and strong overload capacity to ensure reliable measurement performance.
• Measurement Functions: Capable of measuring liquid level, volume, density, and differential pressure, meeting diverse application requirements.
• Structure: Double-flange capillary design to withstand harsh environments such as corrosive media and high-temperature media.
• Diaphragm Materials: Optional 316L stainless steel, Hastelloy C, or tantalum for excellent corrosion and high-temperature resistance.
• Communication & Adjustment: Supports intelligent HART communication and on-site adjustment of range, zero point, damping, and other parameters for quick configuration and maintenance.
• Explosion-Proof Design: Equipped with a durable die-cast metal shell to meet the demands of various industrial environments.

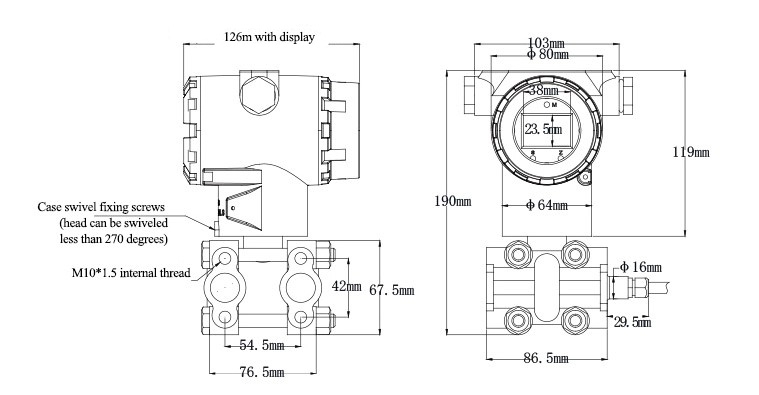

Dimension (Unit: mm)

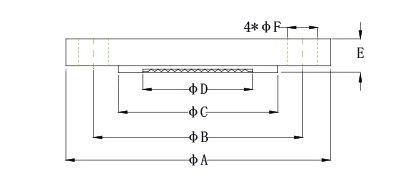

Flange Size (Unit: mm)

Wiring Diagram

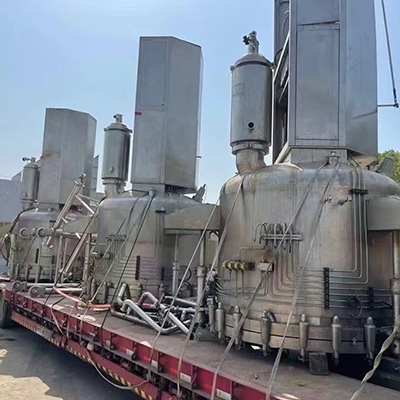

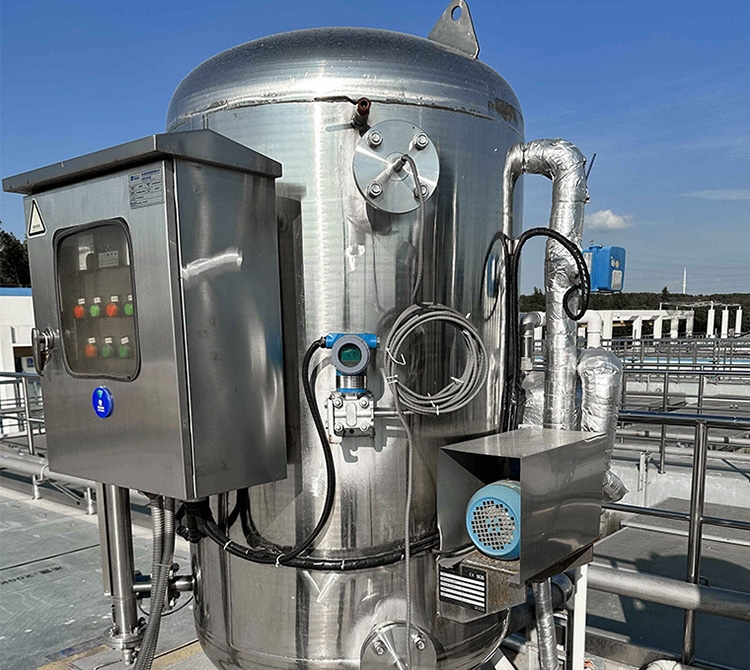

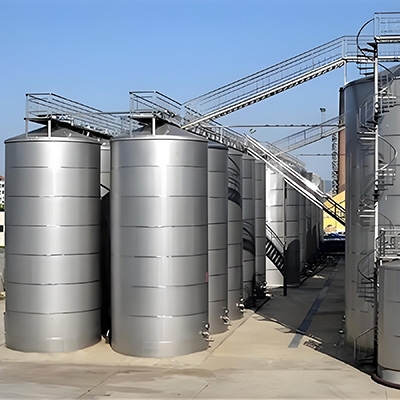

Use Case
