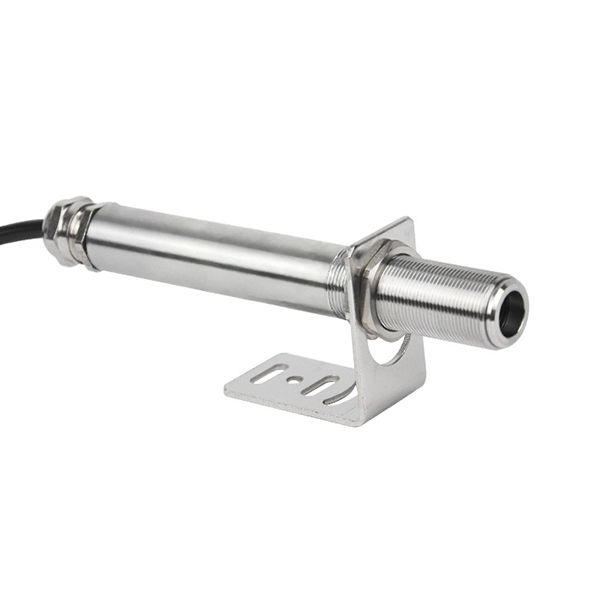

High Temperature Infrared Sensor, 600-2000℃

0 review(s) | Add your review

SKU: SUCH-IR-SAM620A

$397.14

● Range: 600-2000℃ ● Object Distance Ratio: 50:1 ● Accuracy: ±2% reading ● Signal Output: 4-20mA

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The sensor measures temperatures from 600°C to 2000°C with ±2% accuracy and a 50:1 optical resolution. It offers a fixed emissivity of 0.95, providing reliable readings for industrial applications like metal and furnace monitoring. Built with stainless steel and an IP65 rating, SUCH infrared sensor for temperature is durable and suitable for harsh environments. The sensor includes a 1.5m cable, customizable for other lengths.

Feature

The IR temperature sensor is equipped with a sensor probe for non-contact sensing measurement.
Millisecond-level response time, with a speed of up to 100ms (95%).
Precisely measure temperature and control it in real time.

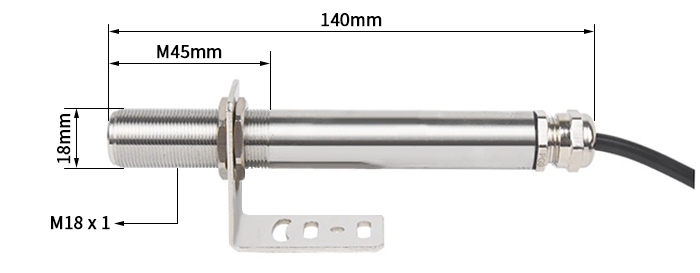

Dimension (Unit:mm)

High temperature infrared sensor dimension

Wiring Method

Output Signal	Wire Color	Function
4-20mA Output	Red	24 VDC Power Positive
4-20mA Output	Blue	Signal Output Positive

Specs

Technical Parameters
Temperature Range	600℃~2000℃
Optical Resolution	D:S = 50:1
Spectral Range	1.55μm
Response Time	100ms (95%)
Accuracy	±2% Reading
Repeatability	±1% Reading
Emissivity	0.95 (Fixed)
Electrical Characteristics
Working Power	24 VDC
Signal Output	4-20mA
Max. Current	50mA
Mechanical Parameters
Protection Level	IP65 (NEMA-4)
Ambient Temperature	0℃~60℃
Storage Temperature	-20℃~80℃
Relative Humidity	10%~95% (Non-Condensing)
Material	Stainless Steel
Connection Cable Length	1.5m (Standard), Customizable to Other Lengths
Weight	300g

Application

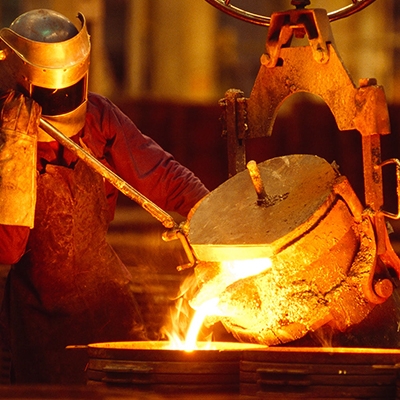

Molten Steel Temperature Measurement

Metal Temperature Measurement

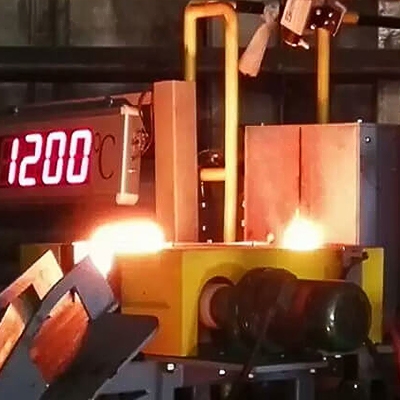

Furnace Temperature Measurement

FAQ

Q1: Does the sensor require calibration? ❯

Most high-temperature infrared sensors come pre-calibrated from the factory. However, for long-term stability and accuracy, regular calibration is recommended. The calibration frequency and method depend on the specific application and manufacturer guidelines.

Q2: How do I maintain and clean the high-temperature infrared sensor? ❯

Regular cleaning of the optical lens is recommended to maintain performance. Use a soft cloth and appropriate cleaning solution. Avoid using hard objects that may scratch or damage the sensor's optical components.

Q3: What should I do if the sensor malfunctions? ❯

First, check the power supply and signal output to ensure they are functioning properly. Also, verify that the sensor’s optical path is not obstructed or the lens is not contaminated. If the issue persists, refer to the troubleshooting section in the user manual or contact technical support.
