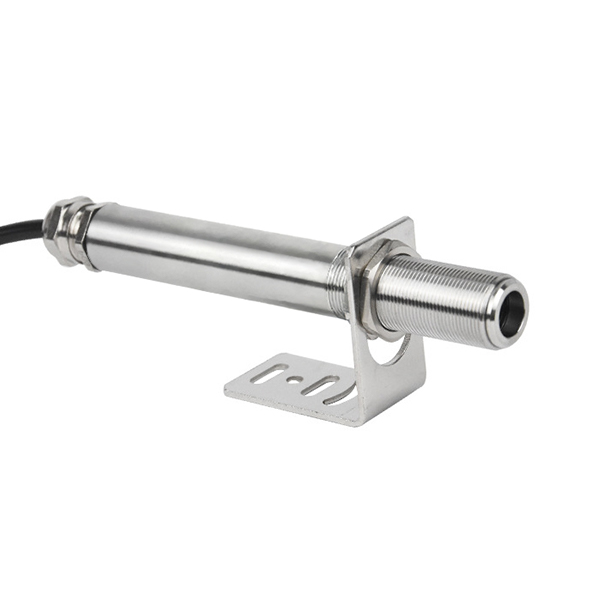

    Remote Infrared Temperature Sensor, 500-1400℃

    SKU: SUCH-IR-SAM514A
    $393.58
    ● Range: 500-1400℃ ● Object Distance Ratio: 50:1 ● Accuracy: ±2% reading ● Signal Output: 4-20mA
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    SUCH remote IR temp sensor is designed for high-precision temperature measurement in a wide range of industrial applications. With a temperature range of 500 to 1400℃, this sensor is ideal for monitoring high-temperature processes where direct contact is impractical or impossible. It features a 50:1 object distance ratio, allowing accurate readings from a significant distance. The 4-20mA output signal provides seamless integration with control systems for continuous monitoring and data logging.

    Feature

    • Fast response time, with a quick 100ms (95%) reaction speed.
    • Precise continuous temperature measurement, with a temperature range of 500-1400°C.
    • Interference-resistant shielded cable, preventing signal interference for stable output.

    Dimension (Unit:mm)

    High temperature infrared sensor dimension

    Wiring Method

    Output Signal  Wire Color  Function
    4-20mA Output Red 24 VDC Power Positive
    Blue Signal Output Positive
    Specs
    Technical Parameters
    Temperature Range 500℃~1400℃
    Optical Resolution D:S = 50:1
    Spectral Range 1.55Ξm
    Response Time 100ms (95%)
    Accuracy Âą2% Reading
    Repeatability Âą1% Reading
    Emissivity 0.95 (Fixed)
    Electrical Characteristics
    Working Power 24 VDC
    Signal Output 4-20mA
    Max. Current 50mA
    Mechanical Parameters
    Protection Level IP65 (NEMA-4)
    Ambient Temperature 0℃~60℃
    Storage Temperature -20℃~80℃
    Relative Humidity 10%~95% (Non-Condensing)
    Material Stainless Steel
    Connection Cable Length 1.5m (Standard), Customizable to Other Lengths
    Weight 300g
    Application
    Aluminum alloy temperature measurement

    Aluminum Alloy Temp Measurement

    Metal coil temperature measurement

    Metal Coil Temp Measurement

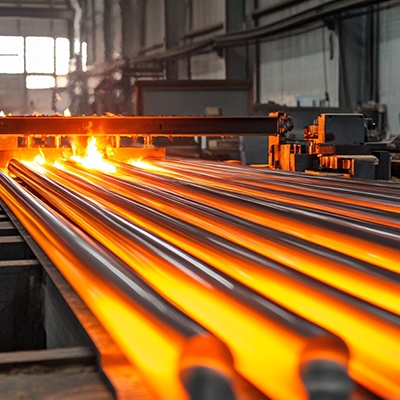

    Red-hot objects temperature measurement

    Red-hot Objects Temp Measurement

    FAQ
    âŊ

    Prolonged exposure to high temperatures, especially beyond the recommended operating range, can lead to the degradation of optical components and reduce circuit stability. To ensure long-term performance, periodic checks and maintenance are recommended to avoid exceeding the maximum operating temperature.

    âŊ

    Yes, infrared sensors are ideal for measuring the temperature of irregularly shaped objects. By measuring the infrared radiation emitted from the object's surface, the sensor can determine its temperature without direct contact, making it perfect for complex or hard-to-reach shapes.

    âŊ

    The IP65 protection rating is suitable for most industrial environments, providing protection against dust and water splashes. However, in extreme environments (e.g., high-pressure water jets or chemical exposure), a higher protection rating might be necessary. It's important to assess the specific environmental conditions and select the appropriate sensor model.
