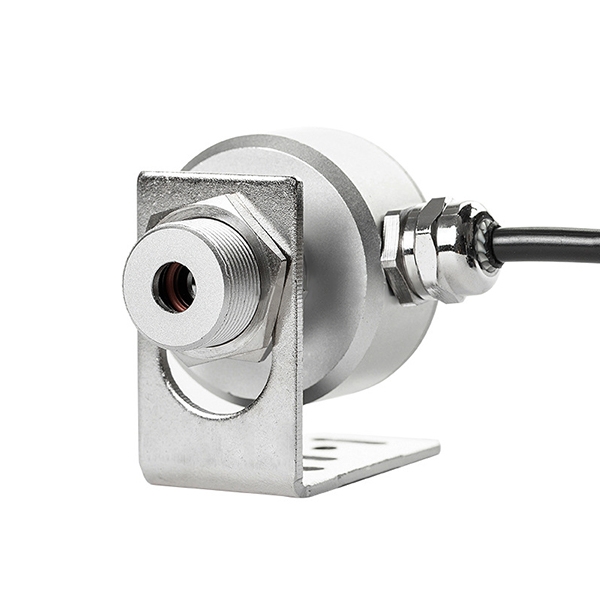

Industrial Infrared Temperature Sensor, 0-1200℃

0 review(s) | Add your review

SKU: SUCH-IR-SA50A4

$162.43

● Range: 0-1200℃ ● Object Distance Ratio: 20:1 ● Accuracy: ±1% reading or ±1℃ ● Signal Output: 4-20mA

Measuring Temperature Range *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The industrial IR sensor for temperature offers multiple measurement ranges, from 0-100°C to 0-1200°C. It offers a 20:1 object distance ratio and an accuracy of ±1% of the reading or ±1℃, ensuring reliable data. The SUCH sensor outputs a 4-20mA signal for easy system integration. With a selectable response time between 50-300ms, it provides fast and accurate measurements for a variety of industrial applications.

Feature

The IR temperature sensor is equipped with a sensor probe for non-contact sensing measurement.
Millisecond-level response time, with a speed of up to 50-300ms (selectable).
Precisely measure temperature and control it in real time.

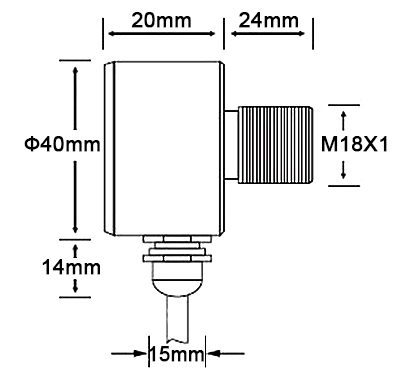

Dimension (Unit:mm)

Remote infrared temperature sensor dimension

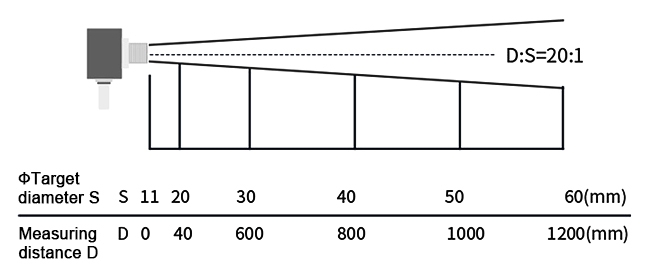

Optical Resolution

Remote infrared temperature sensor optical resolution

Note: The D:S ratio represents the relationship between the distance from the non-contact infrared temperature sensor to the target and the size of the spot being measured. A higher ratio indicates better resolution of the sensor, allowing it to measure smaller spots. Additionally, the accuracy of the measurement increases when the object being measured is darker (more black).

Specs

Technical Parameters
Temperature Range	0℃-100℃, 0℃-150℃, 0℃-200℃, 0℃-300℃, 0℃-500℃, 0℃-600℃, 0℃-800℃, 0℃-1000℃, 0℃-1200℃
Optical Resolution	D:S = 20:1
Response Wavelength	8~14μm
Response Time	50-300ms (Selectable)
Accuracy	±1% reading or ±1℃, Take the Maximum Value
Repeatability	±0.5% reading or ±0.5℃, Take the Maximum Value
Electrical Characteristics
Working Power	12-24 VDC
Signal Output	4-20mA
Max. Current	50mA
Mechanical Parameters
Protection Level	IP65 (NEMA-4)
Ambient Temperature	0℃~60℃
Storage Temperature	-20℃~80℃
Relative Humidity	10%~95% (Non-Condensing)
Material	Aluminum Alloy
Connection Cable Length	3m (Standard), Extendable
Weight	300g

Application

Oil Temperature Measurement

Asphalt Temperature Measurement

Rubber Temperature Measurement

FAQ

Q1: Can the sensor be used in environments with varying distances between the sensor and the target? ❯

Yes, the 20:1 object distance ratio allows the sensor to maintain accurate readings even when the distance between the sensor and the target changes, offering flexibility for different industrial setups.

Q2: How does the sensor compensate for surface emissivity variations in different materials? ❯

Infrared temperature sensors rely on the emissivity of the target material to accurately measure temperature. Different materials emit infrared radiation at different rates, which can affect the accuracy of readings. To compensate, many industrial infrared sensors allow users to adjust the emissivity setting, ensuring accurate temperature readings across a variety of materials, from metals to stones and oil.

Q3: Is the sensor suitable for use in harsh industrial environments? ❯

Yes, the Industrial Infrared Temperature Sensor is designed to perform reliably in tough industrial conditions, such as high temperatures, dust, or exposure to various materials.
