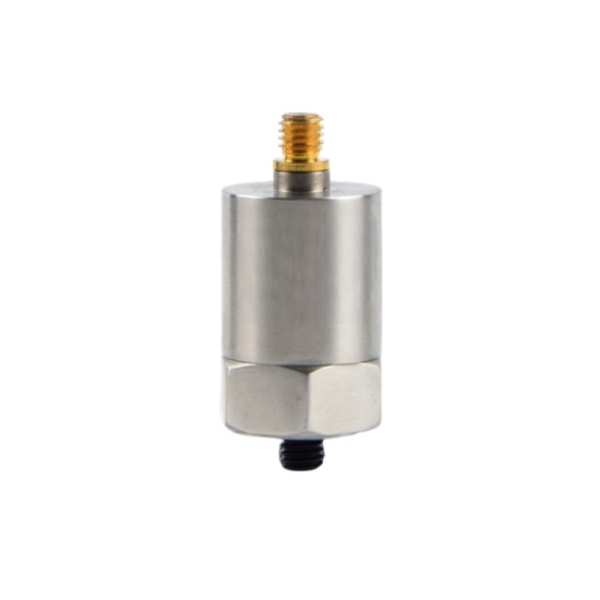

IC Piezoelectric Accelerometer Sensor, 24V DC, 10g

The piezoelectric accelerometer sensor features an integrated IC circuit design with a measurement range of 10g, compatible with 18–30V power supplies, a typical voltage of 24V, a sensitivity of up to 500mV/g, and a frequency response range covering 0.2–8000Hz. The 3-axis accelerometer features a constant current excitation current range of 2–20 mA (typical value 4 mA) and is compatible with the SUCH dynamic signal analyzer, making it suitable for applications such as structural modal analysis and mechanical fault diagnosis.

Feature

IC accelerometers are widely used in dynamic testing applications such as vibration and impact testing. The signal output of the built-in IC sensor features a two-wire connection. The signal output line and the constant current source input line for powering the miniature IC amplifier share the same wire, while the other wire serves as the ground line. The conditioner provides a constant current of 4 mA and a 24 V DC excitation voltage to power the internal circuitry.

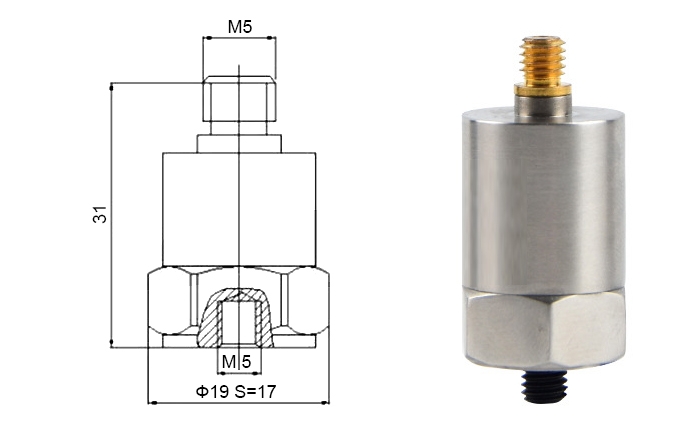

Dimension (unit: mm)

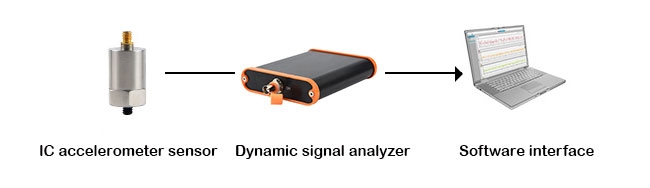

System Structure

Note: IEPE piezoelectric accelerometer vibration sensors require a constant current excitation to operate.

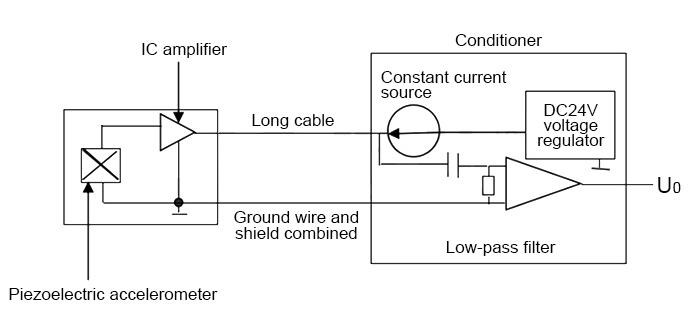

Working Principle
