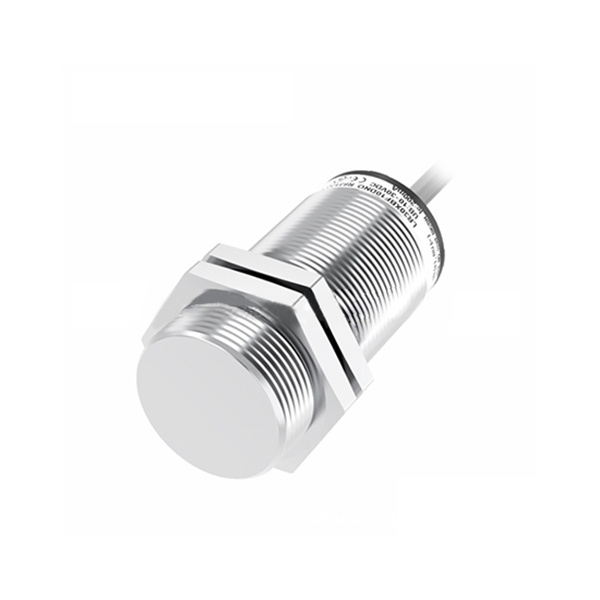

M30 Inductive Proximity Sensor, 10mm/15mm

SKU: SUCH-IPS-LR30X

$173.97

● M30x1.5 thread, analog output ● 10mm or 15mm detection distance ● 15-30V DC, IP67 protection class ● Flush or non-flush installation type

Installation *
Output Mode *
Connection *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

M30 proximity sensor, inductive, analog output, factory direct sale. Flush or non-flush proximity switch with a 10mm or 15mm detection distance, IP67 protection rating, 15-30VDC power supply range, 0-10V/0-20mA/4-20mA/0-10V+0-20mA output types and M12 connector/2m PVC cable connection types, suitable for displacement measurement, thickness measurement, material differentiation, etc.

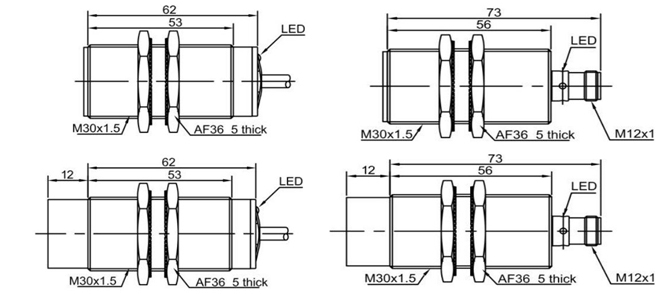

Dimension (Unit: mm)

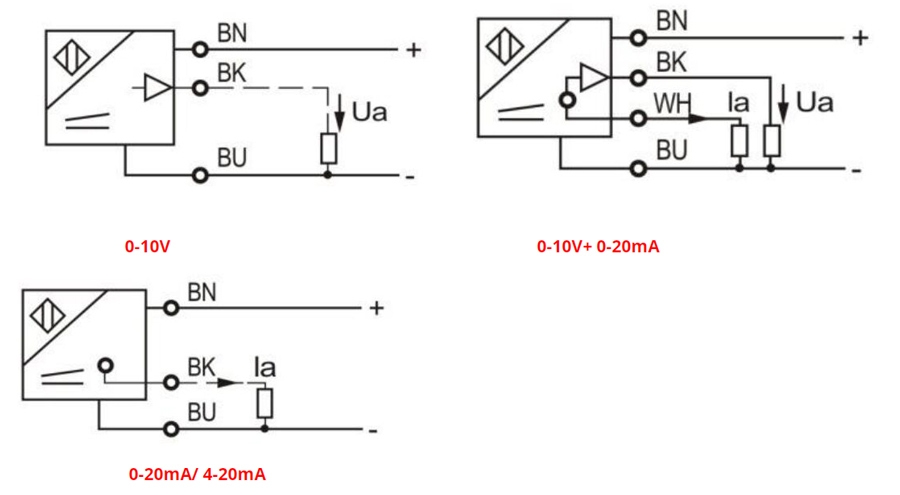

Wiring Diagram

Cylindrical inductive proximity sensor wiring

Specs

Installation type	Flush	Non-flush
Rated distance	10mm	15mm
Detection range	2-10mm	3-15mm
Switching frequency	200 Hz	100 Hz
Standard target	Fe 30301t	Fe 45451t
Analog signal output	0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
Diameter	M30
Connection type	M12 connector/ 2m PVC cable
Supply Voltage	15-30VDC
Switch-point drifts	≤±10%/ Sr
Linearity	≤±5%
Repeat accuracy	≤±3%
Load current	≥4.7KΩ (voltage output) ≤470Ω (current output)
Current consumption	≤20mA
Loop protection	Reverse polarity protection
Power indicator	Yellow LED
Ambient temperature	-25℃-70℃
Ambient humidity	35-95% RH
Voltage withstand	1000V/ AC 50/ 60Hz 60s
Insulation resistance	≥50MΩ (500VDC)
Vibration resistant	Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
Protection class	IP67
Housing material	Nickel-copper alloy
Certificates	CE, UL,CCC, ROHS
Warranty	12 months

Installation type	Flush	Non-flush
Rated distance	5mm	8mm
Detection range	1-5mm	1.6-8mm
Switching frequency	200 Hz	100 Hz
Analog signal output	0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
Diameter	M18
Connection type	M12 connector/ 2m PVC cable
Supply Voltage	15-30VDC
Standard target	Fe 18181t	Fe 24241t
Switch-point drifts	≤±10%/ Sr
Linearity	≤±5%
Repeat accuracy	≤±3%
Load current	≥4.7KΩ (voltage output) ≤470Ω (current output)
Current consumption	≤20mA
Loop protection	Reverse polarity protection
Power indicator	Yellow LED
Ambient temperature	-25℃-70℃
Ambient humidity	35-95% RH
Voltage withstand	1000V/ AC 50/ 60Hz 60s
Insulation resistance	≥50MΩ (500VDC)
Vibration resistant	Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
Protection class	IP67
Housing material	Nickel-copper alloy
Certificates	CE, UL,CCC, ROHS
Warranty	12 months

Application

Industrial Automation Equipment

CNC Machine Tools

Construction Machinery

FAQ

Q1: What analog output options are available and how are they used? ❯

SUCH M30 inductive proximity sensor provides multiple analog outputs, including 0-10V, 0-20mA, 4-20mA, and combined 0-10V+0-20mA for continuous position or proximity measurement.

Q2: What is the operating voltage and connection type for this sensor? ❯

This M30 inductive proximity sensor typically operates on DC 10-30V and can be connected via an M12 connector or a 2m PVC cable wiring, depending on your choice.

Q3: What does IP67 mean for the M30 inductive proximity sensor? ❯

IP67 means full protection against dust (6) and temporary immersion in water (up to 1m depth for 30 minutes, 7). It is ideal for harsh environments like factories with oil mist, washdown areas, outdoor equipment, or dusty production lines.
