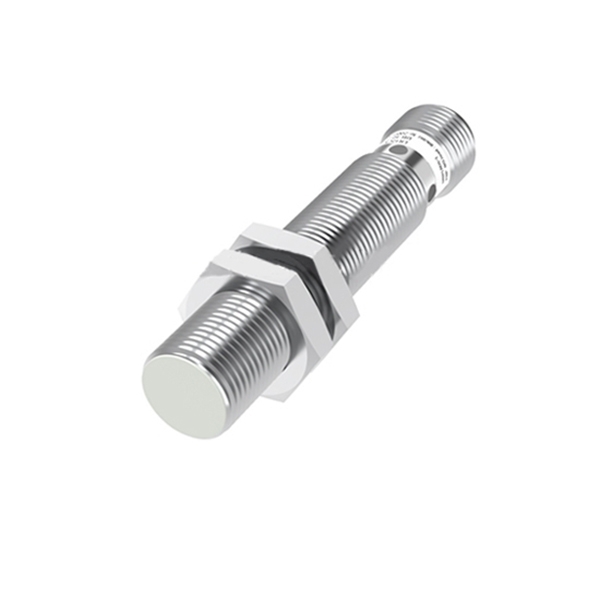

M12 Inductive Proximity Sensor, 2mm/4mm

SKU: SUCH-IPS-LR12X

$173.97

● M12x1 thread, analog output ● 2mm or 4mm detection distance ● 15-30V DC, IP67 protection class ● Flush or non-flush installation type

Installation *
Output Mode *
Connection *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Flush or non-flush M12 inductive proximity sensor provides current and voltage signals proportional to the object's displacement, and features an M12 connector/2m PVC cable connection, 2mm/4mm detection distance. The inductive proximity switch can output 0-10V/0-20mA/4-20mA/0-10V+0-20mA analog signals, widely used in displacement measurement, thickness measurement, and material differentiation.

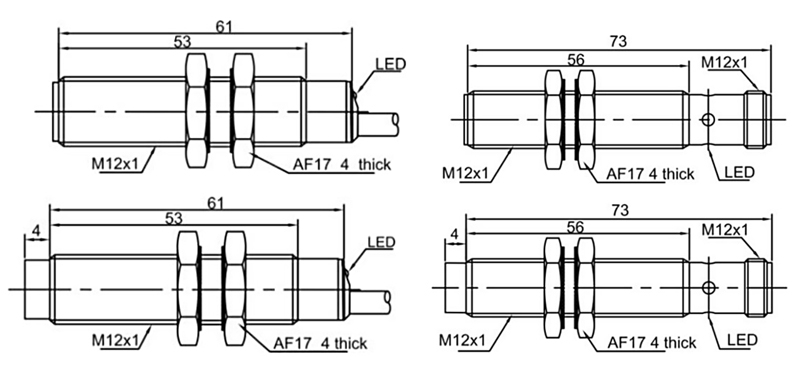

Dimension (Unit: mm)

Wiring Diagram

Cylindrical inductive proximity sensor wiring

Specs

Installation type	Flush	Non-flush
Rated distance	2mm	4mm
Detection range	0.4-2mm	0.8-4mm
Switching frequency	200 Hz	100 Hz
Analog signal output	0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
Diameter	M12
Connection type	M12 connector/ 2m PVC cable
Supply Voltage	15-30VDC
Standard target	Fe 12121t
Switch-point drifts	≤±10%/ Sr
Linearity	≤±5%
Repeat accuracy	≤±3%
Load current	≥4.7KΩ (voltage output) ≤470Ω (current output)
Current consumption	≤20mA
Loop protection	Reverse polarity protection
Power indicator	Yellow LED
Ambient temperature	-25℃-70℃
Ambient humidity	35-95% RH
Voltage withstand	1000V/ AC 50/ 60Hz 60s
Insulation resistance	≥50MΩ (500VDC)
Vibration resistant	Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
Protection class	IP67
Housing material	Nickel-copper alloy
Certificates	CE, UL,CCC, ROHS
Warranty	12 months

Application

Industrial Automation Equipment

CNC Machine Tools

Construction Machinery

FAQ

Q1: What is the difference between 2mm and 4mm detection ranges? ❯

The 2mm version is suitable for high-precision short-distance detection, while the 4mm version provides a longer sensing distance and greater installation tolerance for general industrial applications.

Q2: What analog output signals are supported? ❯

SUCH M12 analog inductive proximity sensors support 0–10V, 0–20mA, 4–20mA, and combined 0–10V + 0–20mA analog outputs, allowing flexible connection to PLCs, controllers, and data acquisition systems.

Q3: What are typical applications for this M12 analog inductive proximity sensor? ❯

Common applications include position and displacement monitoring, gap measurement, machine tool positioning, automated assembly lines, and other industrial automation systems requiring continuous analog feedback.
