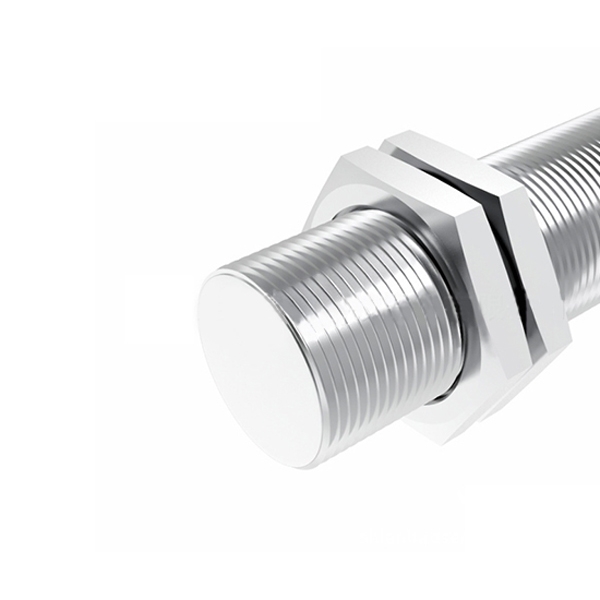

    Picture of M18 Inductive Proximity Sensor, 5mm/8mm Picture of M18 Inductive Proximity Sensor, 5mm/8mm Picture of M18 Inductive Proximity Sensor, 5mm/8mm Picture of M18 Inductive Proximity Sensor, 5mm/8mm

    M18 Inductive Proximity Sensor, 5mm/8mm

    0 review(s) | Add your review
    SKU: SUCH-IPS-LR18X
    $164.45
    ● M18x1 thread, analog output ● 5mm or 8mm detection distance ● 15-30V DC, IP67 protection class ● Flush or non-flush installation type
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    SUCH M18 inductive proximity sensor for sale online. It's an analog proximity switch that outputs 4 analog signals: 0-10V, 0-20mA, 4-20mA, and 0-10V+0-20mA, available with 15-30V DC power supply, optional detection distance of 5mm or 8mm, 2 connection methods (M12 connector or 2m PVC cable), and 2 installation types (flush/non-flush).

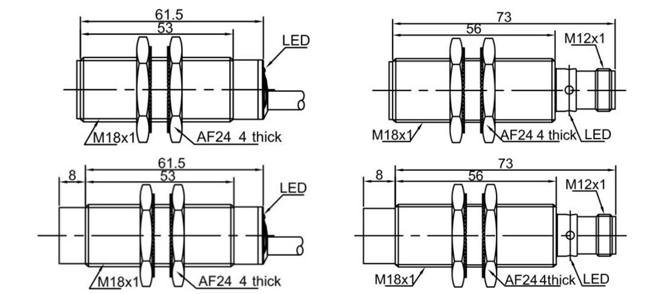

    Dimension (Unit: mm)

    Analog output M18 proximity sensor dimension, 8mm

    Wiring Diagram

    Cylindrical inductive proximity sensor wiring

    Specs
    Installation type Flush Non-flush
    Rated distance 5mm 8mm
    Detection range 1-5mm 1.6-8mm
    Switching frequency 200 Hz 100 Hz
    Analog signal output 0-10V/ 0-20mA/ 4-20mA/ 0-10V+0-20mA
    Diameter M18
    Connection type M12 connector/ 2m PVC cable
    Supply Voltage 15-30VDC
    Standard target Fe 18*18*1t Fe 24*24*1t
    Switch-point drifts ≤±10%/ Sr
    Linearity ≤±5%
    Repeat accuracy ≤±3%
    Load current ≥4.7KΩ (voltage output) ≤470Ω (current output)
    Current consumption ≤20mA
    Loop protection Reverse polarity protection
    Power indicator Yellow  LED
    Ambient temperature -25℃-70℃
    Ambient humidity 35-95% RH
    Voltage withstand 1000V/ AC 50/ 60Hz 60s
    Insulation resistance ≥50MΩ (500VDC)
    Vibration resistant Complex amplitude 1.5mm 10-50Hz (X, Y, Z directions for 2 hours each)
    Protection class IP67
    Housing material Nickel-copper alloy
    Certificates CE, UL,CCC, ROHS
    Warranty 12 months
    Application
    Inductive proximity sensor for industrial automation equipment

    Industrial Automation Equipment

    Inductive proximity sensor for CNC machine tools

    CNC Machine Tools

    Inductive proximity sensor for construction machinery

    Construction Machinery

    FAQ
    ❯

    An analog inductive proximity sensor outputs a continuous signal proportional to the distance between the sensor and the metal target, while a standard proximity switch only provides an ON/OFF signal.

    ❯

    The M18 cylindrical housing allows for a longer detection range, better signal stability, and stronger anti-interference performance, making it suitable for industrial environments.

    ❯

    Voltage outputs are easy to interface but more sensitive to electrical noise, while current outputs (especially 4–20mA) offer better noise immunity and are preferred for long-distance signal transmission.
