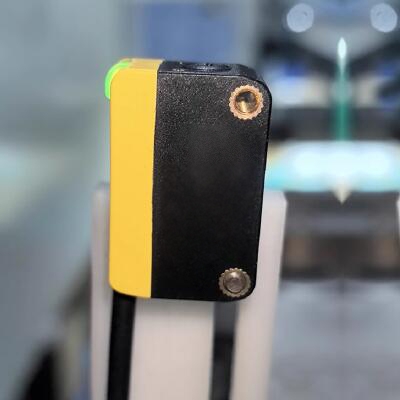

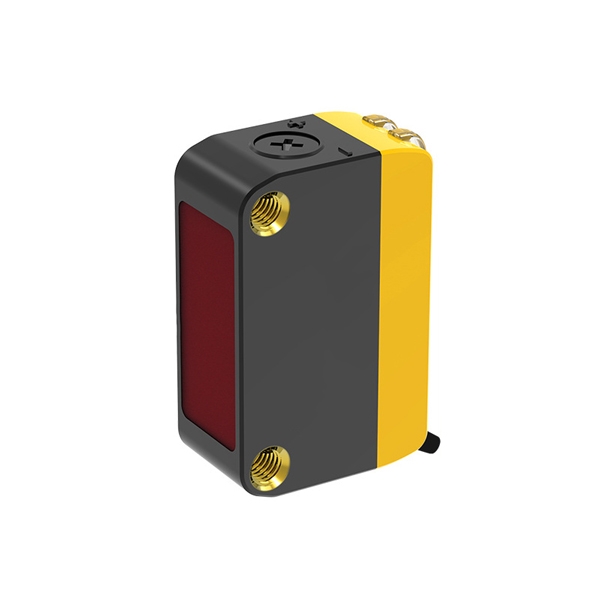

Laser Photoelectric Sensor with Background Suppression, 30-400mm

A laser photoelectric sensor with background suppression is a detection device based on a laser light source and precise ranging algorithms. It automatically ignores reflective interference from background objects when identifying targets. Unlike ordinary diffuse reflection sensors, it employs geometric optical structures and a dual-receiver design to accurately determine the distance to target objects, making it immune to false triggers regardless of how bright or close the background is.

Background suppression in laser photoelectric sensors primarily relies on the “angle differential principle” and “distance measurement.” The sensor incorporates two photoelectric receiver elements that capture reflected light from near and far distances respectively. By comparing the spot position and reflection intensity, it determines whether an object falls within the preset detection range. Output is triggered only when the target is within the defined detection zone, while background reflections are automatically filtered out by the algorithm.

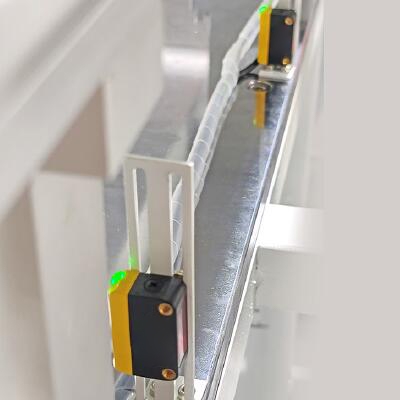

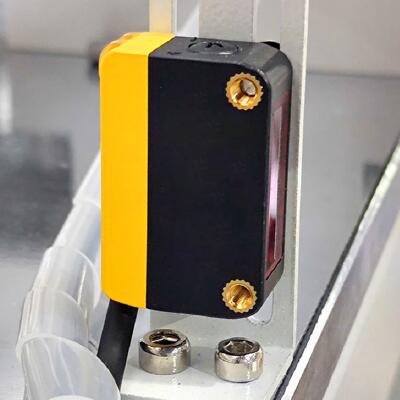

These sensors excel in scenarios requiring precise position control and stable object detection, particularly in environments with complex backgrounds or light interference. Examples include robotic arm positioning, automatic door object detection, packaging assembly lines, electronic manufacturing equipment, sorting systems, and AGV/robot obstacle recognition. Additionally, due to their fine laser spot and adjustable detection range, these sensors reliably identify even small, dark-colored, or highly reflective objects, making them ideal for high-precision industrial automation applications.
