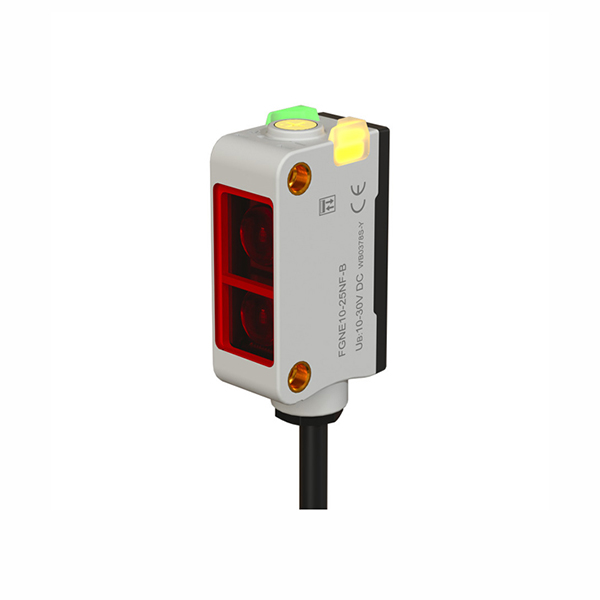

Background Suppression Photoelectric Sensor, 5cm/25cm/30cm

Background suppression photoelectric sensors achieve precise detection by emitting light and utilizing specialized optical structures to analyze the intensity and angle of reflected light. Unlike traditional diffuse reflection sensors, they distinguish distance differences between foreground objects and background surfaces, maintaining stable detection even against dark or highly reflective backgrounds.

Background suppression photoelectric sensors offer more stable detection and are less affected by color variations. Traditional reflective sensors exhibit significant variations in detection distance for darker targets (e.g., black plastic). In contrast, background suppression photoelectric sensors provide nearly identical detection distances for virtually any target.

Not only safeguarding the product itself, but also protecting equipment from damage for enhanced operational safety.

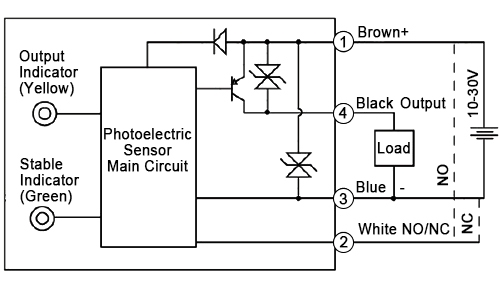

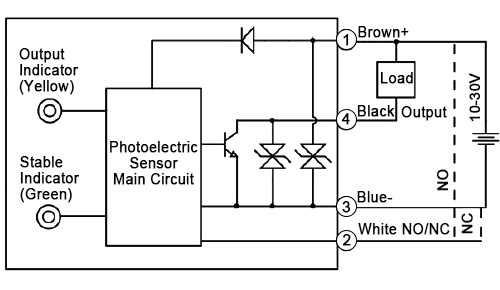

• Short-Circuit Protection: Safeguards both the sensor and the load from damage during load short-circuit faults.
• Overload Protection: Automatically protects against increased current caused by unstable or faulty loads.
• Polarity Protection: Reversed polarity connection of sensor power lines will not damage the product.
• Zener Protection: Regulates input voltage by providing a stable voltage and protects the circuit from overvoltage.
