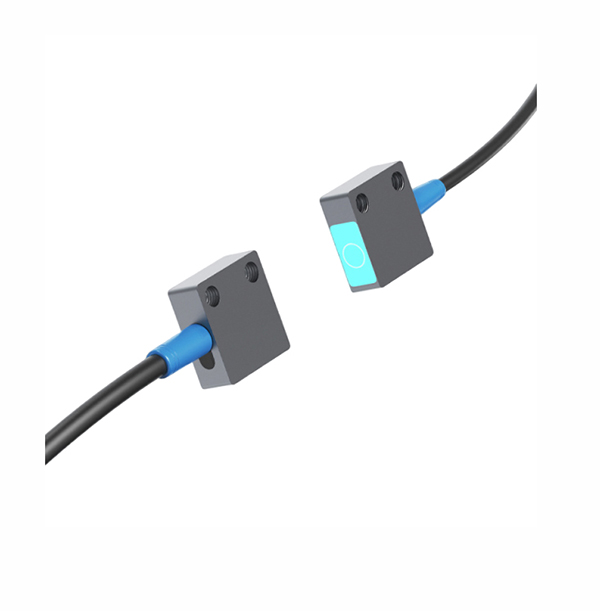

    Micro Laser Photoelectric Sensor, 20m, NPN/PNP

    0 review(s) | Add your review
    SKU: SUCH-PHOS-Q14
    $104.56
    ● 20m detection distance ● NPN/PNP, NO/NC ● 2mm spot size ● Straight/elbow optional
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    This high-performance micro laser photoelectric sensor with straight or elbow shape, can provide a detection distance of up to 20 meters while maintaining a spot size of only about 2mm. NPN/PNP, NO/NC output modes allow easy matching with various control systems. The laser sensor's aluminum alloy housing is robust and durable, and the IP65 protection rating ensures continuous operation in dusty, humid, and even high-load environments.

    Feature

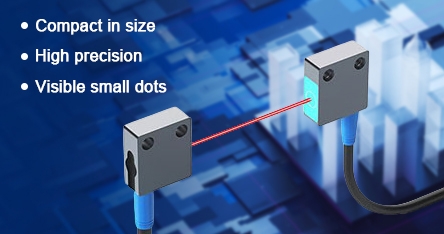

    Micro laser photoelectric sensor feature

    • The miniature laser sensor features a compact and elegant design with flexible installation options. At just 5.1mm thick, it fits seamlessly into confined spaces.
    • Available in straight or elbow configurations, it offers a detection range up to 20 meters, effortlessly handling complex environments with enhanced stability.
    • Engineered with premium core components, the sensor is CE certified and incorporates multiple protections including short-circuit and overload safeguards, delivering true all-around interference resistance.
    • Its robust aluminum alloy housing, CNC-machined as a single piece, ensures extended service life.

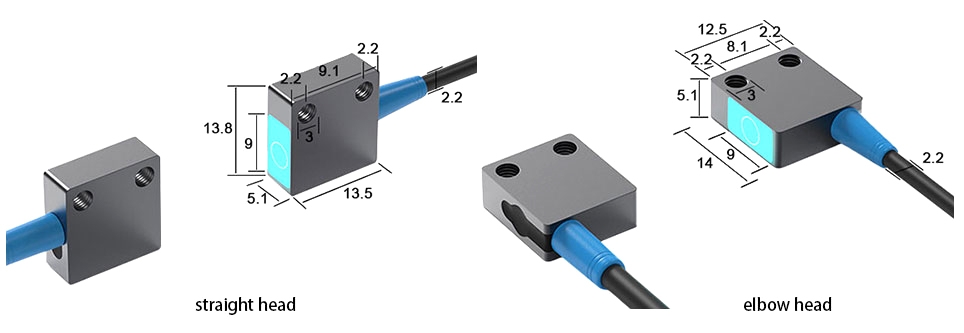

    Dimension (unit: mm)

    Micro laser photoelectric sensor dimensions

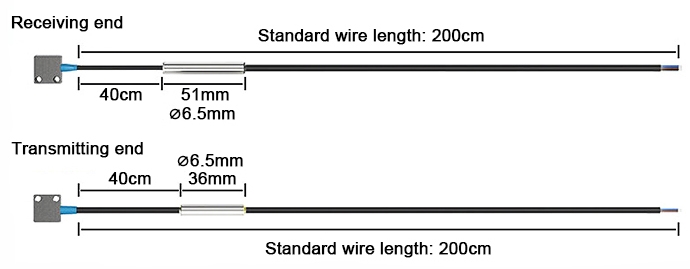

    Wire

    Micro laser photoelectric sensor wire dimension

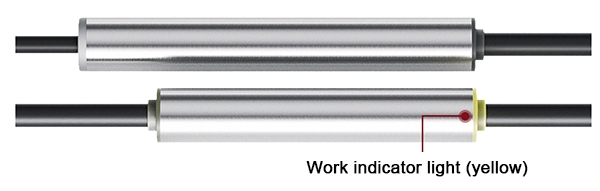

    Detail

    Micro laser photoelectric sensor detail

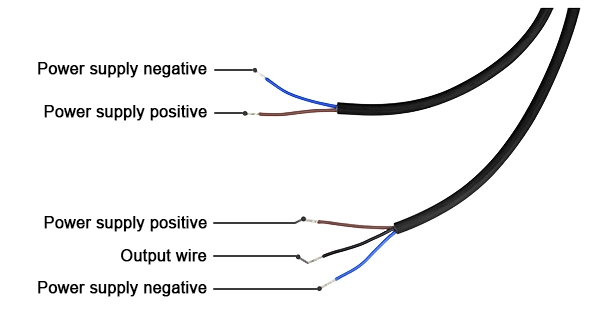

    Wiring Diagram

    Micro laser photoelectric sensor wiring diagram

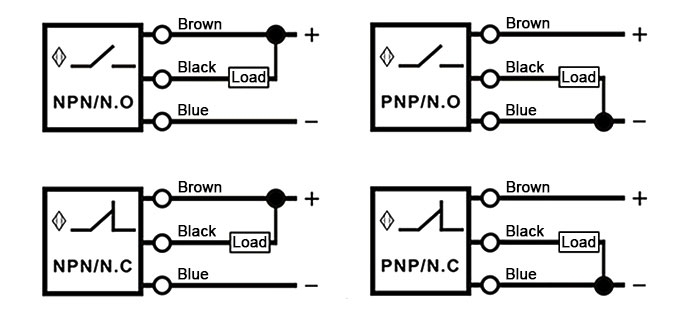

    Output Wiring Diagram

    Micro laser photoelectric sensor output wiring diagram

    Specs
    Type Straight/elbow
    Detection Distance 20m
    Output Model NPN/PNP, NO/NC
    Spot Size Approx. 2mm (standard)
    Standard Cable Length 2m
    Response Time 5ms
    Switching Delay <15% (Sr)
    Switching Frequency 100Hz
    Repeat Accuracy <5–10% (Sr)
    Protection Rating IP65
    Operating Voltage 10–30V DC
    Operating Temperature 0°C to 50°C
    No-Load Current <10mA
    Temperature Drift <10% (Sr)
    Max Load Current 150mA
    Short-Circuit Protection Yes
    Leakage Current <0.01mA
    Overload Protection 180mA
    Voltage Drop <1.5V
    Housing Material Aluminum alloy
    Application

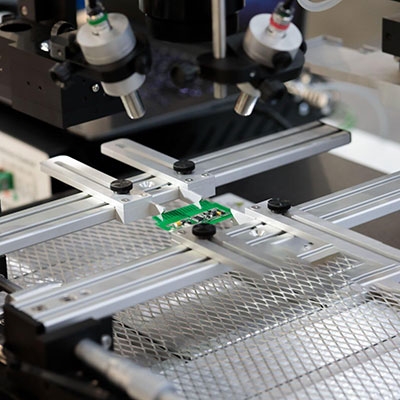

    Micro-parts positioning

    Micro Parts Positioning

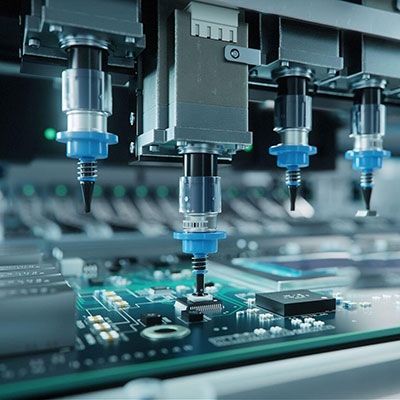

    PCB production line

    PCB Production Line

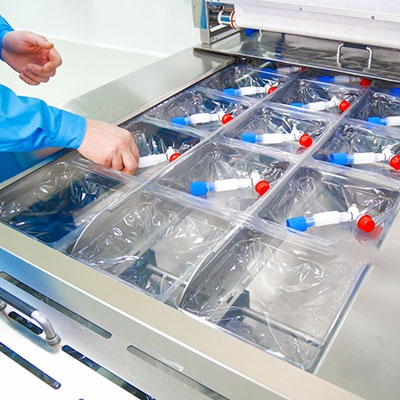

    Medical device conveying

    Medical Device Conveying

    FAQ
    ❯

    Mini laser photoelectric sensors feature compact size, concentrated spot size, and fast response, making them ideal for compact equipment and high-precision detection scenarios such as electronic device assembly, micro-part positioning, robot end-of-arm detection, PCB production lines, and medical device conveyor inspection. Their high-brightness laser enables stable identification of distant, small targets, and edge objects.

    ❯

    During installation, ensure the sensor remains aligned with the target object, avoid direct exposure to strong light, and prevent obstruction of the laser beam. For through-beam sensors, maintain coaxial alignment between transmitter and receiver. When detecting reflective targets, select appropriately matched reflectors.

    ❯

    Most small laser photoelectric sensors utilize Class 1 or Class 2 lasers, posing no harm to human safety. However, prolonged direct exposure to the laser spot should be avoided, and installation/calibration must follow the instruction manual.

    0 review(s)
    0.0 0
    Write your own review Close
    *
    *
