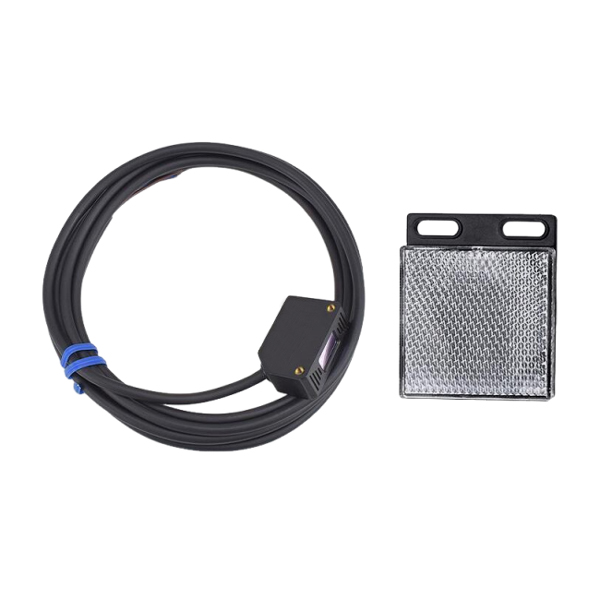

Laser Retro Reflective Photo Sensor, 300mm–8m Adjustable

0 review(s) | Add your review

SKU: SUCH-PHOS-318M

$81.59

● 300mm–8m ● NPN/PNP, NO/NC ● 3mm spot size ● 650 nm red light

Output Mode *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The good-price laser retro-reflective photoelectric sensor offers an adjustable detection range of 300mm–8m, operates at 10–30V DC, and multiple NPN/PNP output modes. Its 3mm standard spot ensures precise positioning and stable detection, maintaining excellent repeatability (<5% Sr) even in complex environments. It is widely applicable for object positioning, area detection, automatic door systems, conveyor line monitoring, and various other scenarios.

Feature

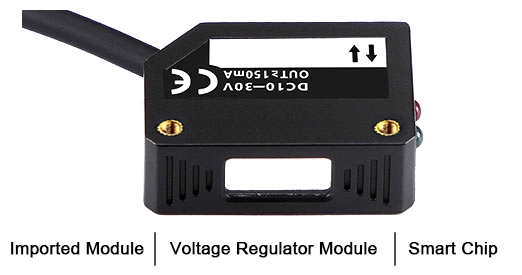

Laser retro reflective photo sensor feature

SUCH laser retro-reflective photoelectric sensors feature an adjustable detection range from 300mm to 8m, paired with a red light spot as small as 3mm for stable and precise target recognition.
Equipped with multiple output modes including NPN, PNP NO, and NC, suitable for various control systems. The response time as fast as 10ms ensures reliable high-speed detection.
The photo sensor's lightweight PBT housing combined with an M12 reflector provides flexible installation options, delivering a compact and efficient overall structure.

Dimension (unit: mm)

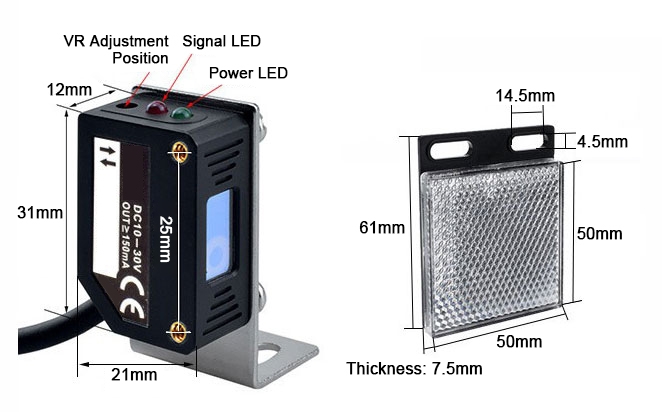

Laser retro reflective photo sensor dimension

Detail

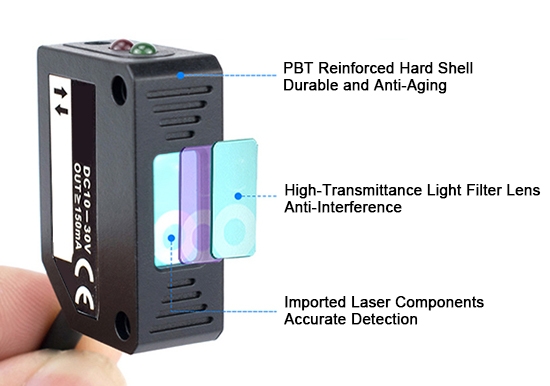

Laser retro reflective photo sensor detail

Wiring Diagram

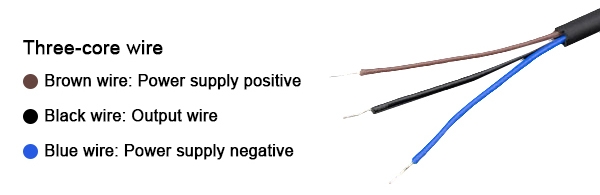

Laser retro reflective photo sensor wiring diagram

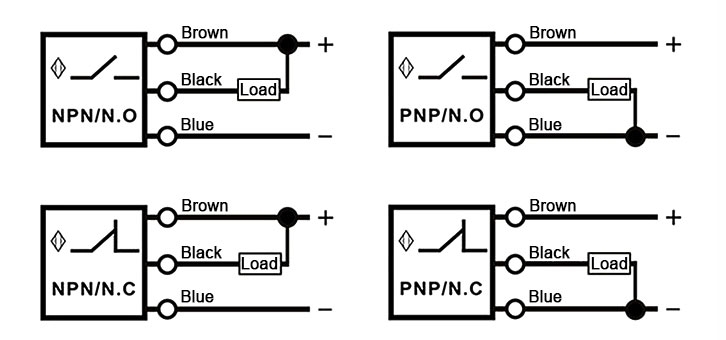

Output Wiring Diagram

Laser retro reflective photo sensor output wiring diagram

Specs

Detection Distance	300mm–8m (adjustable)
Output Model	NPN NO, PNP NO, NPN NC, PNP NC
Standard Target	100*100 mm white cardboard
Light Source	650nm red light
Spot Size	Approx. 3mm standard
Indicator LED	Red LED / green LED
Operating Voltage	10–30V DC
No-Load Current	<10mA
Max Load Current	150mA
Leakage Current	<0.01mA
Voltage Drop	<1.5V
Switching Frequency	100Hz
Response Time	10ms
Hysteresis	<15% (Sr)
Repeat Accuracy	<5% (Sr)
Protection Rating	IP55
Operating Temperature	0°C to +55°C
Temperature Drift	—
Short-Circuit Protection	Yes
Overload Protection	180mA
Cable	φ4.0mm, 2m PVC cable, 3*0.15mm²
Product Size	31* 11*21mm
Reflector Size	61507.5mm
Housing Material	PBT plastic
Weight	Approx. 45.8g + 10g (reflector)
Certifications	CE, RoHS

Application

Logistics Conveying

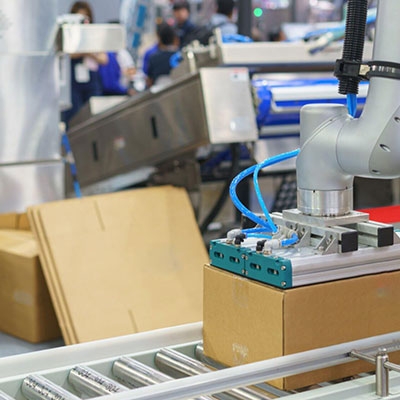

Packaging Equipment

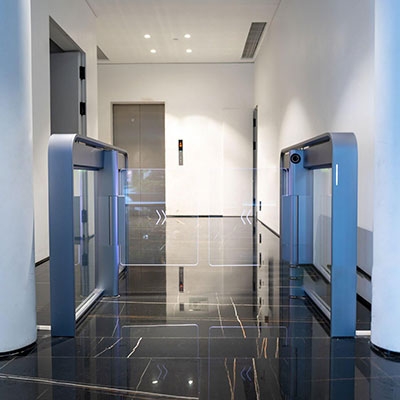

Automatic Door Control

FAQ

Q1: How does a laser retro-reflective photoelectric sensor work? ❯

The laser retro-reflective photoelectric sensor operates by emitting a focused laser beam onto a reflector, which then returns the light to the receiver. When the target object obstructs the light path or alters the beam direction, the sensor outputs a switching signal. The laser spot is small and highly directional, enabling long-distance, precise, and highly stable detection.

Q2: Can the laser retro-reflective photoelectric sensor reflector be replaced? ❯

The reflector can be replaced, but it must be a polarization-maintaining reflector or mirror reflector matching the original model to ensure correct return angle and intensity. During installation, keep the reflective surface clean and align it vertically with the sensor to prevent detection instability.

Q3: Why do laser retro-reflective photoelectric sensors reduce false triggers? ❯

Laser beams feature a concentrated spot and strong resistance to stray light, making them less susceptible to interference from environmental reflections, metallic gloss, or external light sources. When used with a mirror reflector, only light matched to the reflector returns to the receiver. This effectively minimizes false triggers, ensuring precise and reliable detection.
