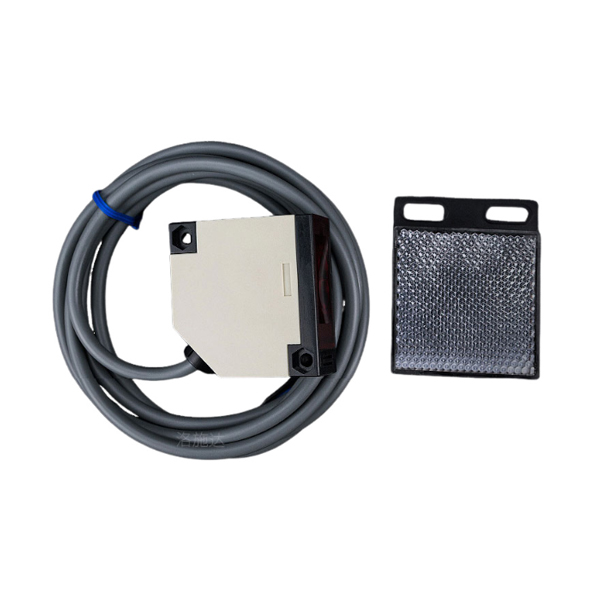

IR Retro Reflective Photoelectric Sensor, 30–4000mm

SUCH infrared retro-reflective photo sensors are specifically designed for high-precision positioning and long-distance object detection. With an adjustable detection range of 30–4000mm, 940nm infrared light source, and high-sensitivity receiver combination. The IR photo sensor features a wear-resistant ABS housing and supports multiple output modes including NPN/PNP and NO/NC, ensuring seamless compatibility with industrial systems such as PLCs, robotic arms, and packaging equipment.

Feature

• High-Performance Module: The transmitter and receiver modules of the retro-reflective photoelectric sensor utilize high-power, high-quality components resistant to signal attenuation, ensuring more stable detection accuracy and performance.
• Voltage Stabilization Module: Stabilizes internal voltage with short-circuit, overload, and reverse polarity protection. Wide DC 10-30V voltage range ensures reliable sensor operation.
• Smart Chip: This infrared photoelectric sensor features rapid response times, powered by a high-quality smart chip that delivers faster computation and enhanced precision.

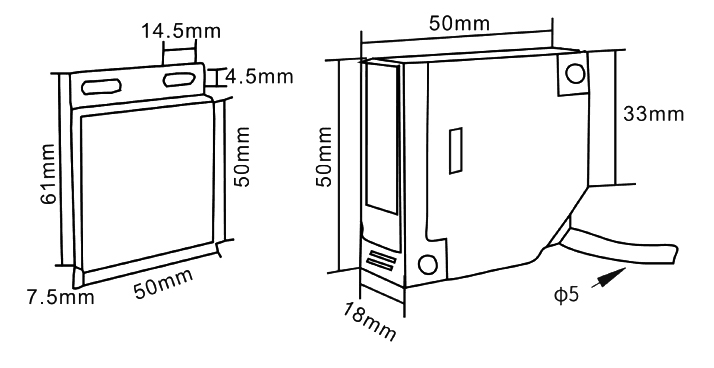

Dimension (unit: mm)

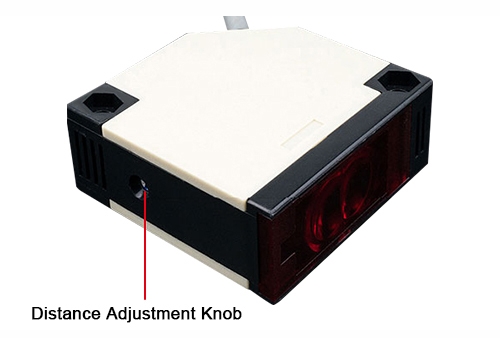

Detail

Note: Detection range is 4 meters. The detection distance can be adjusted based on actual conditions.

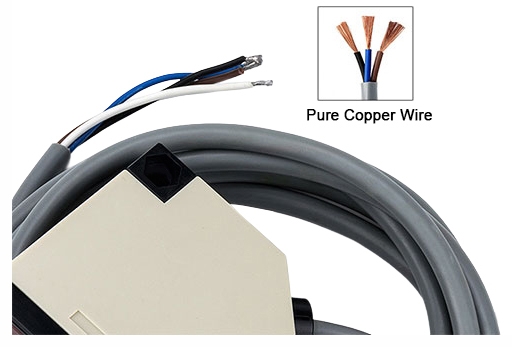

Wiring Diagram

SUCH photoelectric sensors feature pure copper wire cores for excellent conductivity. The matte, wear-resistant wire jacket ensures flexibility, waterproofing, and oil resistance, making them suitable for reliable operation in diverse environments.
