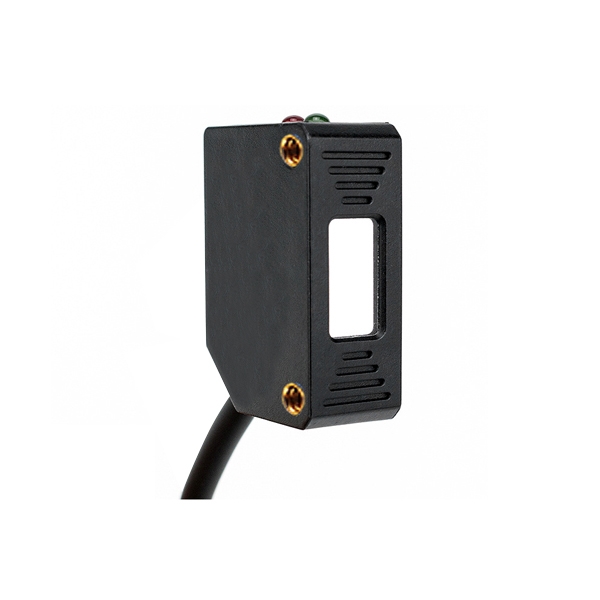

IR Diffuse Reflective Photoelectric Sensor, 20-200mm/30-300mm

High-performance infrared diffuse reflection photoelectric sensors utilize a 940nm high-efficiency infrared light source to achieve rapid and stable detection within ranges of 20–200mm or 30–300mm. The photo sensors offer multiple output configurations including NPN/PNP and NO/NC, enabling effortless identification of 200*200mm white targets while maintaining accurate response even under low-light conditions or complex backgrounds.

Feature

• The SUCH infrared diffuse reflection photoelectric sensor features multiple protective mechanisms, ensuring not only the safety and stability of the product itself but also safeguarding equipment from damage.
• Equipped with premium electronic components and utilizing high-quality optical transceiver modules, this photo sensor delivers enhanced detection accuracy and extended service life.
• Detection distances of 20-200mm or 30-300mm are selectable, supporting adjustment based on actual usage conditions. Turning clockwise extends the detection distance, while turning counterclockwise shortens it.

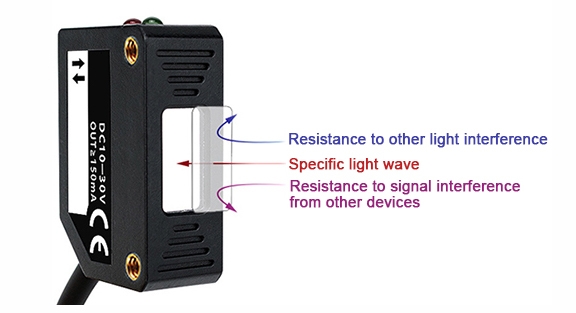

• The glass-coated filter lens effectively filters out electromagnetic interference from other light sources, ensuring more accurate detection. Additionally, the quartz lens material remains unaffected by temperature changes, preventing deformation.

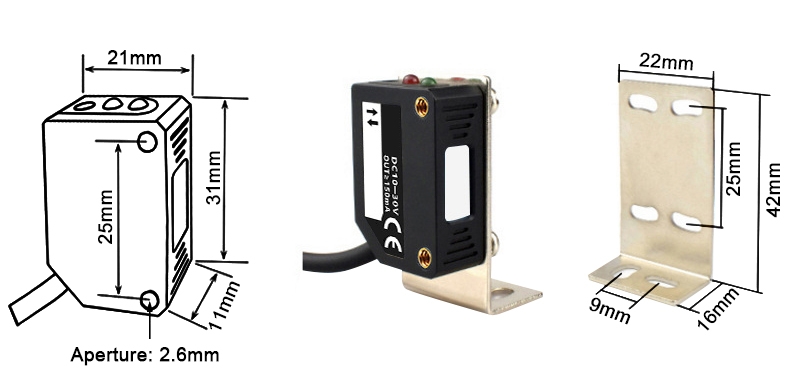

Dimension (unit: mm)

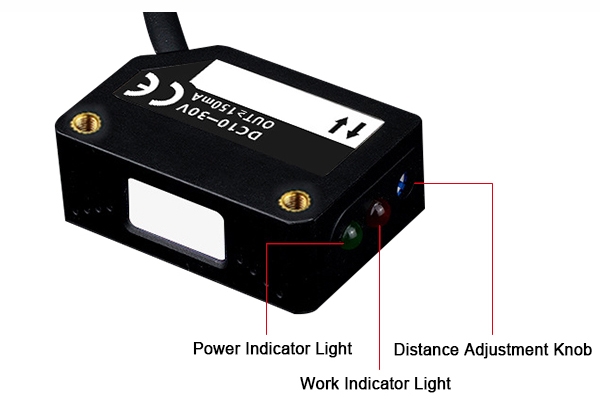

Detail

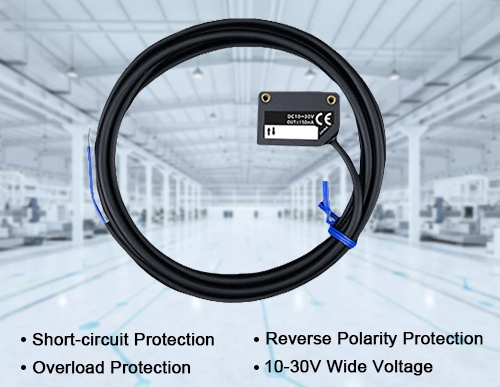

Protection

• Short-circuit Protection: Safeguards both the device and the load from damage during short circuits or load malfunctions.
• Overload Protection: Automatically protects against increased current caused by unstable loads or operational issues.
• Reverse Polarity Protection: Prevents damage to the product if the positive and negative terminals of the photoelectric sensor's power supply are connected incorrectly.
• 10-30V Wide Voltage Range: Operates reliably over extended periods within the DC 10-30V voltage range.
