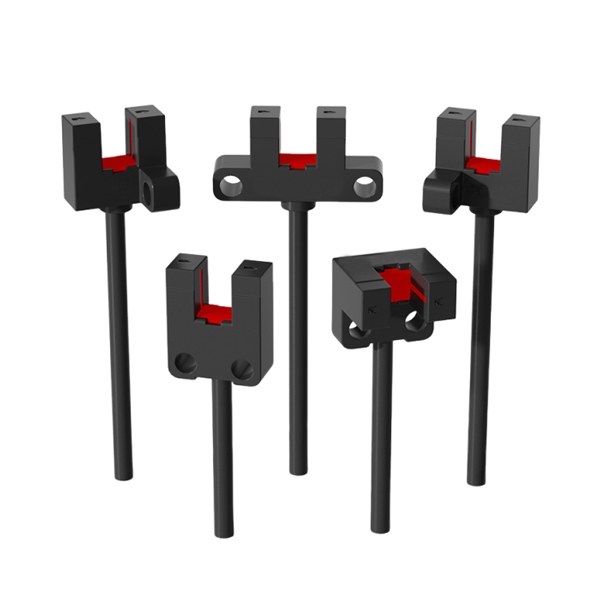

U Type Photoelectric Sensor, 5mm, NPN/PNP

The SUCH-U type photoelectric sensor supports multiple form factors, easily adapting to different equipment requirements. Powered by a wide DC 5–24V supply with dual NPN/PNP outputs, it employs a through-beam detection method to reliably identify opaque objects larger than 0.8*1.2mm. Capable of precisely detecting micro-workpieces with a 5mm slot width, it also features a red LED indicator for real-time detection status display, significantly reducing debugging time.

Feature

• High-quality electronic components serve as the built-in smart chip for SUCH photo sensors, delivering more accurate detection and faster response times.
• The U slot type photoelectric sensor features an integrated housing design with superior protection, effectively resisting splashes, oil droplets, corrosion, and offering stable insulation and flame-retardant properties for extended service life.
• Constructed with genuine pure copper conductors and high-elasticity materials that resist breakage under tension, this photoelectric sensor boasts tensile strength exceeding standard wires. It has passed rigorous reliability testing for bending, oscillation, and other performance metrics.

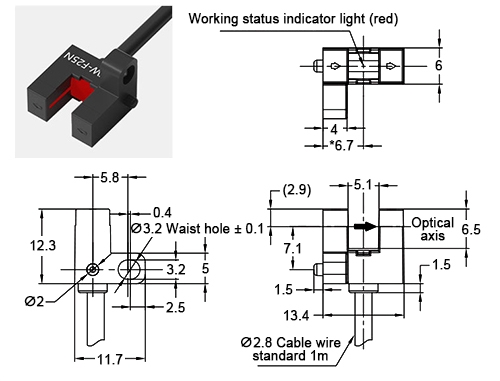

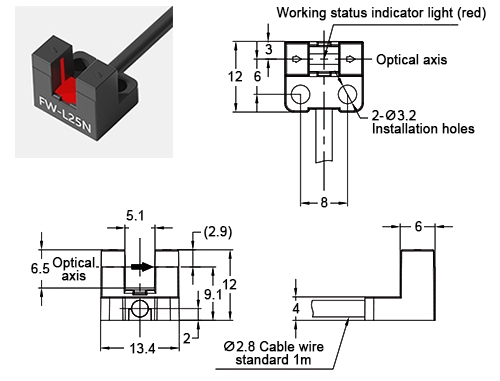

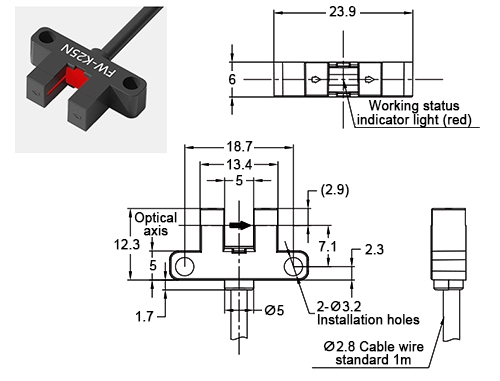

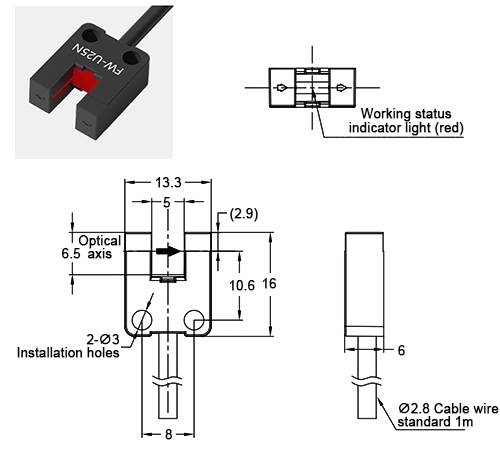

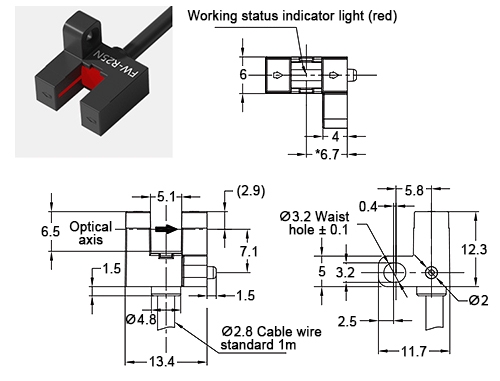

Dimension (unit: mm)

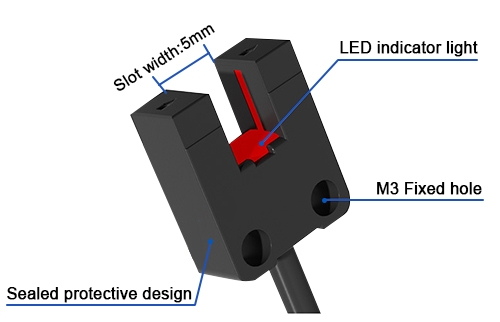

Detail

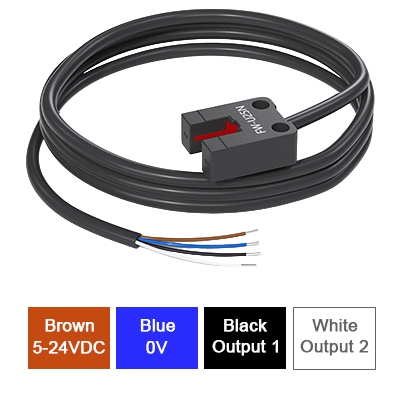

Wiring Diagram

Output Wiring Diagram

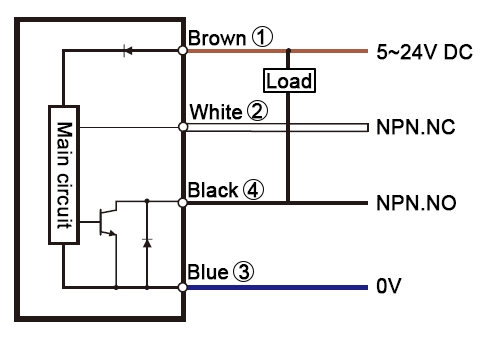

NPN Output

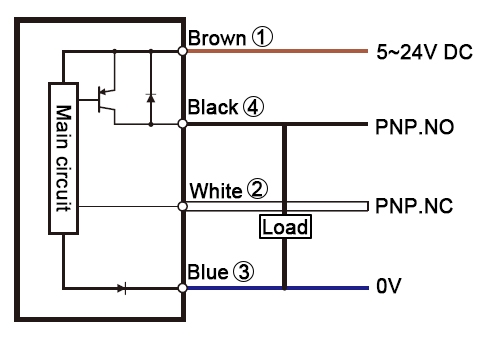

PNP Output
