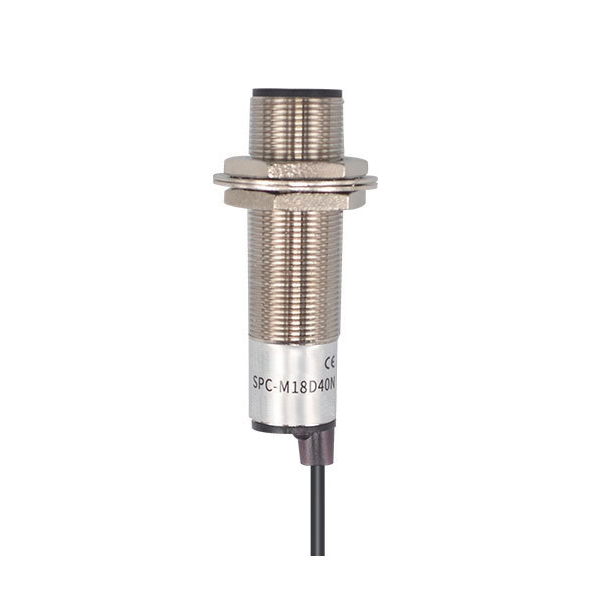

Cylindrical Photoelectric Sensor, 5-400mm, NPN/PNP

A cylindrical photoelectric sensor identifies target objects by emitting a light beam and detecting changes in reflected light or light obstruction. When light is blocked by an object or its reflection pattern changes, the internal photoelectric element generates an electrical signal variation, thereby determining the object's presence, position, or motion.

When installing cylindrical photoelectric sensors, ensure the optical axis is aligned with the target object to prevent misdetection caused by tilt. For diffuse reflection or specular reflection types, avoid direct exposure to intense light or mirror reflections to prevent excessive reflection from affecting sensitivity. Maintain stable mounting to prevent positional shifts from equipment vibration. Route cables away from high-power devices and electromagnetic interference sources to ensure signal stability. Keep the sensor area clean, regularly inspecting for dust, oil residue, or moisture buildup.

Common issues include false triggering, failure to activate, or unstable output. For false triggering, check for reflective objects causing interference or excessive ambient light. If the sensor fails to activate, verify power supply, wiring connections, and alignment of the optical axis. Output fluctuations may result from a dirty lens surface or loose installation. If necessary, adjust the sensitivity knob to achieve stable light levels.
