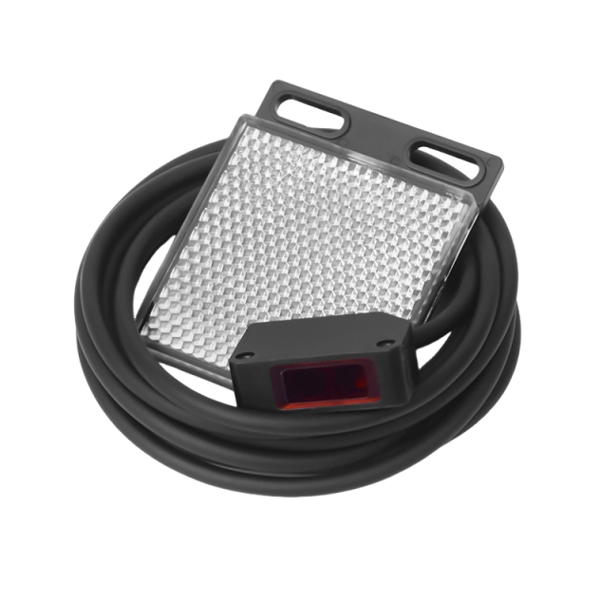

Retro Reflective Photoelectric Sensor, 50-300mm/30-2000mm

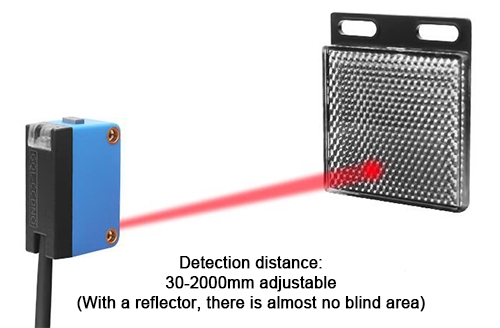

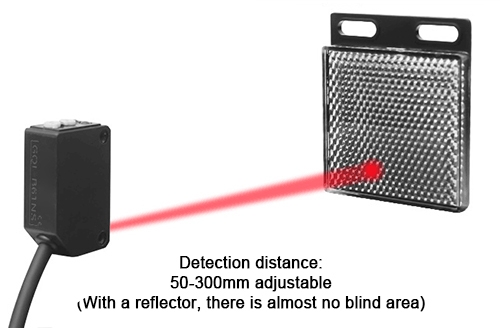

A retro-reflective photoelectric sensor emits a beam of light from its transmitter and uses a reflector to bounce the light back to the receiver to determine if an object is present. When an object enters the detection zone, it blocks the emitted beam, preventing the receiver from detecting the reflected light and triggering a switch signal. Compared to through-beam sensors, they require no separate transmitter and receiver installation, offering a more compact structure. Compared to diffuse-reflective sensors, they provide longer detection distances and stronger interference resistance, making them suitable for most general detection scenarios.

Transparent objects like glass or plastic bottles often partially transmit light or alter the light reflection path, causing sensor misjudgment. Standard retro-reflective sensors have limited effectiveness with transparent objects, but reliability can be significantly enhanced by using a polarized filter (Polarized Retro-Reflective). This filter eliminates specular reflections, recognizing only specific angles of reflection from the target surface. This stabilizes detection of transparent, reflective, or highly glossy objects while reducing false triggers.

The mounting distance should fall within the “effective sensing range” specified in the sensor's technical data, with the optimal position typically being 60% to 80% of this range. The transmitter, reflector, and detection path must maintain optical axis alignment to ensure stable beam return. Significant installation angle deviation may prevent the receiver from capturing reflected light, compromising detection stability. Keep the reflector surface clean to avoid dust or oil contamination affecting reflectivity. Adjust angles appropriately or add light shielding structures in environments with strong ambient light or dust.
