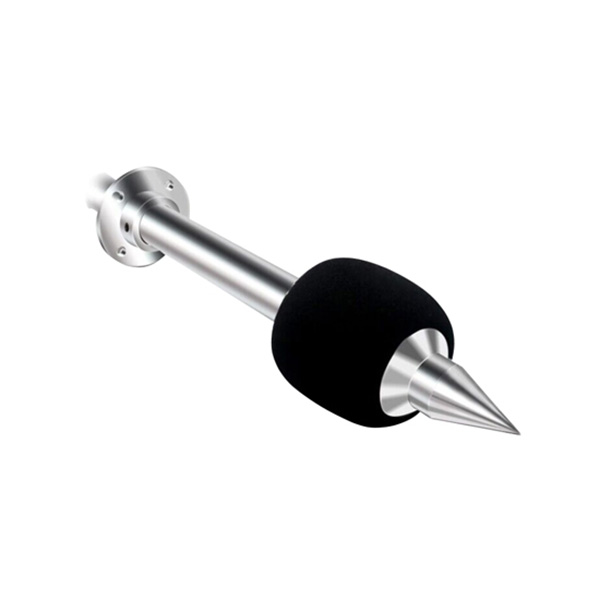

Noise Detection Sensor with High Sensitivity Microphone

High-quality noise sensor uses the ModBus-RTU communication protocol, supports RS485, 4-20mA current and 0–5V voltage output, operates within a 10-30VDC voltage range, and consumes only 0.1W. SUCH sensor features a measurement range of 30-130dB and a frequency response of 20Hz–12.5kHz, with a resolution of 0.1dB. At 94dB@1kHz, its measurement accuracy reaches ±0.5dB, with a response time ≤3s and long-term stability better than 2%. The sensor supports three baud rates: 2400, 4800 (default), and 9600bps. It offers reliable communication and stable performance, making it suitable for environmental noise monitoring, industrial noise detection, and intelligent control applications.

Feature

• Superior Materials: Utilizes high-quality materials and a high-density metal casing, ensuring waterproof and corrosion-resistant performance, durability, and no risk of condensation.
• High Sensitivity Detection: Features a built-in condenser microphone, providing a wide measurement range and sensitive, accurate noise response.
• Industrial-grade Performance: Employs digital detection technology and signal processing chips, offering excellent linearity and a wide dynamic range.
• High-precision Output: Stable pickup of noise signals across a wide frequency range ensures accurate and reliable measurement results.

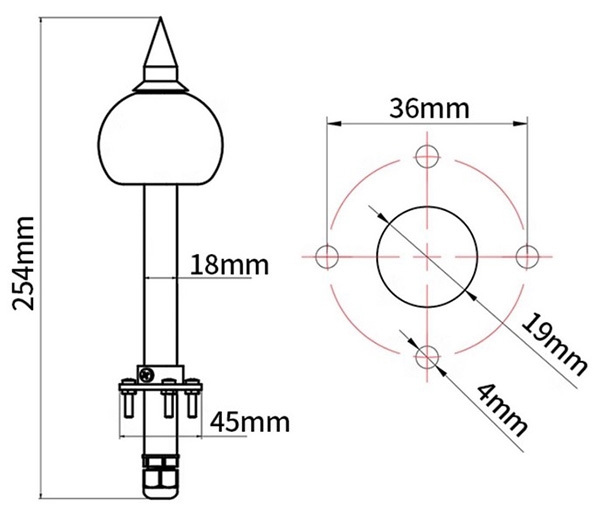

Dimension (Unit: mm)
