Industrial Stainless Steel Noise Sensor, 4-20mA

SUCH industrial-grade noise sensor features a stainless-steel housing for excellent weather resistance and reliability, designed for environmental noise monitoring. It supports multiple communication interfaces, including RS485, 4-20mA, 0-5V, and 0-10V, for easy integration and data transmission. It can measure noise levels from 50 to 130 dBA with an accuracy of ±3 dB, making it suitable for industrial sites, urban environments, and various other noise monitoring scenarios. It also features low power consumption (2W) and a wide voltage input range (DC12-24V).

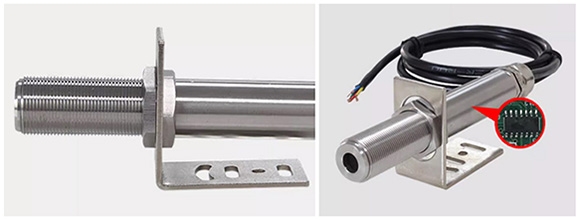

Feature

• Double-nut mounting: Secure installation and easy assembly and disassembly ensure stable and accurate measurements.
• Weatherproof: Heat-resistant, cold-resistant, and corrosion-resistant. Built-in reverse polarity protection and RS485 overvoltage protection ensure a stable and reliable structure.
• Industrial-grade performance: Low-power chip design ensures long signal transmission distance and stable measurement without drift.

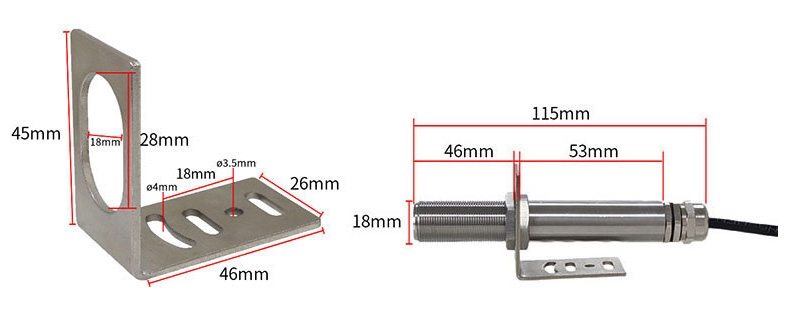

Dimension (Unit: mm)

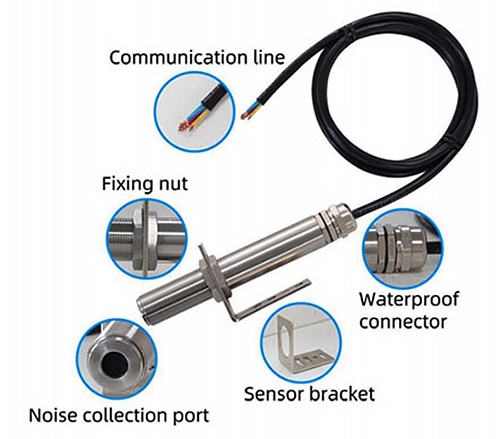

Detail

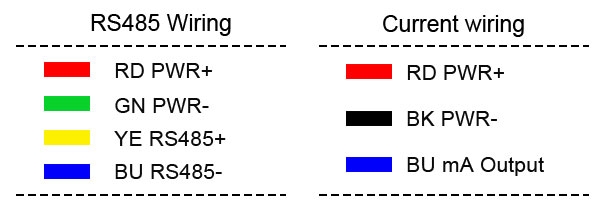

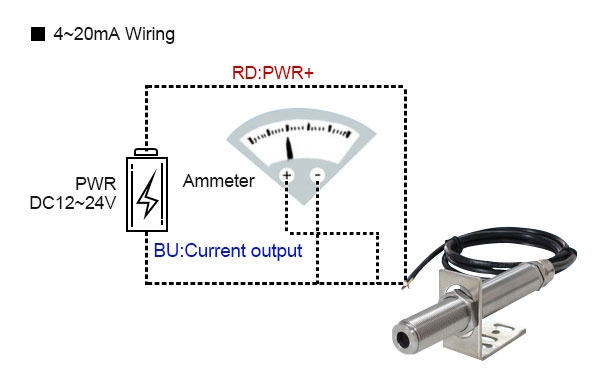

Wiring Diagram

Note: When wiring, connect the positive and negative polesof the power supply first, and then connect the signal wire.
