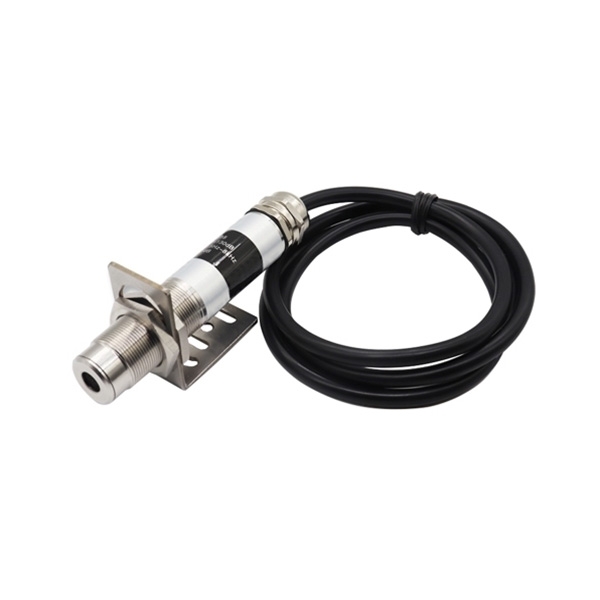

Noise Sensor, Analog Output, 30dB-130dB

0 review(s) | Add your review

SKU: SUCH-NS-YS1920

$128.51

● Measurement range 30-130dB ● Output options 0-5V, 0-10V, 4-20mA ● Resolution (of a photo) 0.1dB ● Accurate ±1.5dB

Interface Method *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Affordable price noise sensor features a compact design, measuring 110 mm in length and 20 mm in diameter. It supports 0-5V, 0-10V, and 4-20mA analog outputs, making it suitable for a variety of monitoring systems. Its measurement range is 30-130dB, with a resolution of up to 0.1dB and an accuracy of ±1.5dB. Its frequency response range covers 31.5-8kHz, enabling precise capture of wideband acoustic signals. SUCH noise sensor's small size, easy installation, and stable performance make it suitable for noise monitoring and environmental management in classrooms, libraries, construction sites, workshops, and other locations.

Feature

L-shaped bracket and double-nut design enables quick installation and removal, ensuring firm fixation and convenient on-site construction.
Precision dual X-layer circuit board with professional noise processing chip, weighting and filter networks, RMS operation circuit, and on-board calibration potentiometer. Built-in TVS, ESD, and self-recovery fuse protection enhance circuit reliability and stability.
304 stainless steel tube housing provides durability, corrosion resistance, and high-temperature resistance for long-term outdoor use.
Stainless steel waterproof connector offers excellent waterproof and moisture-proof performance, suitable for complex outdoor environments.
1-meter four-core cable with 0.5mm² flat cores ensures easy wiring and stable signal transmission.

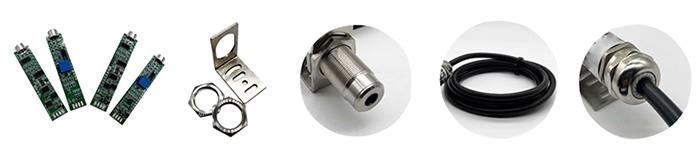

Noise sensor analog output feature

Dimension (Unit: mm)

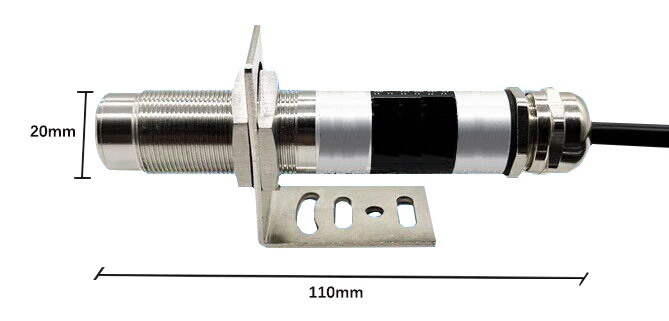

Noise sensor analog output size

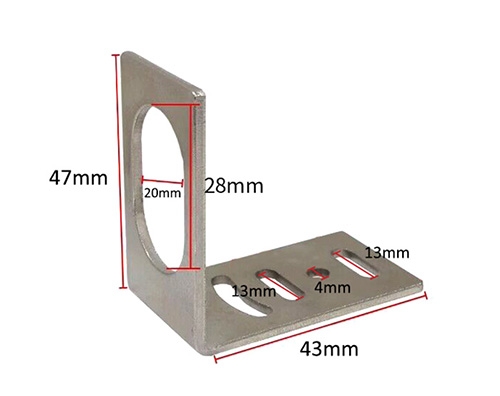

Noise sensor analog output accessory dimension

Wiring Description

The three-wire method is used, and the specific wire sequence is shown in the table below:

Blue	Yellowish Green	Brown
VCC	GND	Signal Output

Specs

Interface Method	0-5V, 0-10V	4-20mA
Operating Voltage	12-25VDC	13-25VDC
Operating Current	23mA (@24.0V)	28mA (@24.0V)
Measurement Range	30-130dB
Frequency Range	31.5-8kHz
Weighting Method	A-weighting
Resolution (of a Photo)	0.1dB
Accurate	±1.5dB
Response Time	100ms, 250ms, 300ms, 400ms (Factory Default 400ms)
Operating Temperature	-20℃~60℃
Overall Dimension	110 (Length) × 20 (Diameter) mm
Protocol mode	Analogue

Application

Construction Site

Workshop

Window Sound Insulation

FAQ

Q1: How can I determine if a noise sensor is compatible with common data acquisition systems? ❯

To determine compatibility with common data acquisition systems, you should refer to the sensor's technical specifications or documentation. Look for information related to the communication protocol and output signal. Common data acquisition systems typically support a variety of analog signals.

Q2: What should I check before connecting the noise sensor to a DAQ system? ❯

Review the sensor’s datasheet to confirm the output type and range, verify that your DAQ system supports these signals, and check whether additional signal conditioning or amplification is required.

Q3: Does the DAQ software need to support specific settings for the noise sensor? ❯

Yes, make sure your data acquisition software recognizes the sensor’s output type and measurement units to ensure accurate signal interpretation and data analysis.
