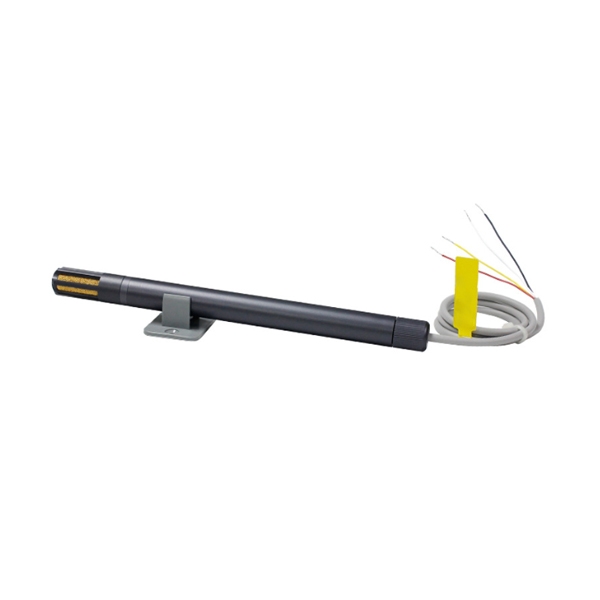

    Picture of Analog Humidity Sensor, Output Signal 0-10V Picture of Analog Humidity Sensor, Output Signal 0-10V Picture of Analog Humidity Sensor, Output Signal 0-10V

    Analog Humidity Sensor, Output Signal 0-10V

    1 review(s) | Add your review
    SKU: SUCH-TH-AN10V
    $69.99
    ● Supply voltage DC 12-36V ● Measuring range of relative humidity 0~99.9%RH ● Measuring range of temperature -40~+120℃ ● Duct/Wall mounted ● Housing material aluminum alloy
    ๐Ÿšš Free shipping
    ๐Ÿ•’ Delivery date: 6-12 days
    ๐Ÿ” 30-day Returns
    Overview

    Analog humidity sensor with a wide measuring range of 0~99.9%RH for humidity and -40~+120โ„ƒ for temperature, and powered by DC 12-36V, it offers accurate and stable performance. Featuring a breathable dustproof design, pipe-type and wall-mountable installation options, and an aluminum alloy housing with anti-oxidation treatment, SUCH temp humidity sensor ensures long service life and dependable operation. Its high-quality shielded cable and sintered metal filter cap provide excellent signal stability, dustproof protection, and easy maintenance, making it an ideal choice for industrial, agricultural, and HVAC applications.

    Feature

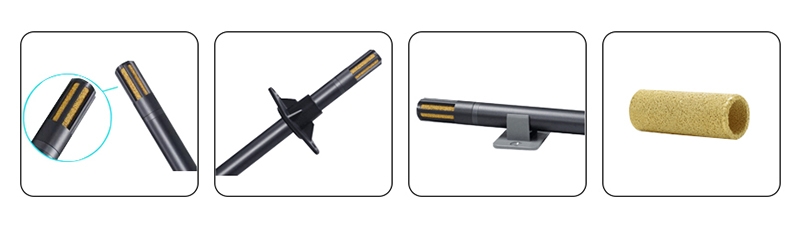

    Analog humidity sensor 0-10v feature

    • Breathable Dustproof Design: Temp and humidity sensor effectively protects the circuit board while allowing air circulation for accurate humidity detection.e
    • Pipe-Type Design: Equipped with a fixed probe bracket and a unique sealing ring structure, ensuring adjustable probe positioning, safety, and secure installation.
    • Wall-Mountable Option: Features a dedicated mounting bracket for easy wall installation, with a design that ensures probe stability and safety.
    • Aluminum Alloy Housing: Durable metal shell with anti-oxidation treatment offers excellent dustproof and high-temperature resistance, extending sensor service life.
    • Shielded Cable: High-quality shielded wire with 48-strand metal shielding, insulated with durable PVC material and copper-tinned leads for stable signal transmission.
    • Sintered Metal Filter Cap: Detachable, easy-to-clean design provides enhanced dustproof and breathable protection, maintaining long-term sensor performance.

    Dimension

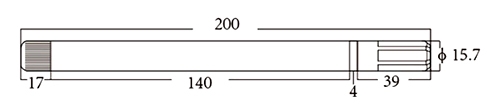

    Analog humidity sensor 0-10v size

    Temperature Measurement Range Setting

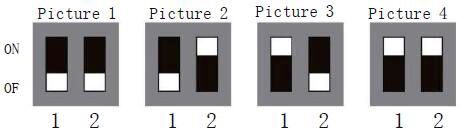

    Analog humidity sensor 0-10v temperature setting



    P1: 0~50โ„ƒ P2: -20~80โ„ƒ
    P3: -40~60โ„ƒ P4: -40~120โ„ƒ


    Pin Assignment

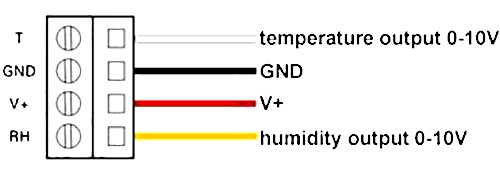

    Analog humidity sensor 0-10v pin assignment

    Specs
    Output Signal 0-10V/0-5V
    Supply Voltage DC 12-36V
    Measuring Range of Relative Humidity 0~99.9%RH
    Measuring Range of Temperature -40~+120โ„ƒ
    Accuracy of Humidity ยฑ3%RH (25โ„ƒ)
    Accuracy of Temperature ยฑ0.5โ„ƒ
    Resolution 0.1โ„ƒ/0.1%RH
    Long-term Stability ๏ผœ0.5%RH/year
    Current Consumption ๏ผœ10mA
    Response Time (90%) static air 8s
    Power-on Time 3s
    Housing Material Aluminum alloy
    Weight 39.0g
    Dimension ะค15.7, length 200mm
    Working Environment Temperature: -40~120โ„ƒ, humidity: 0~99.9% no condensation
    Storage Environment Temperature: 0~60โ„ƒ, humidity: ๏ผœ90%RH
    Product Packing List 1*SUCH-TH-AN10V with 3m four-core shield wire, 1*flange (duct mounted), 1*flange (wall mounted), 2*mounting screw
    Wiring Red: V+, black: GND, yellow: RH (humidity output 0-10V), white: T (temperature output 0-10V)
    Application

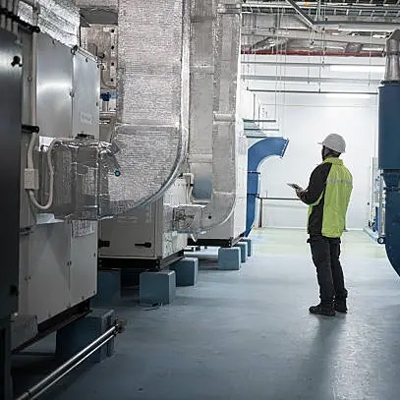

    Duct humidity sensor hvac systems

    HVAC Systems

    Indoor environment monitoring

    Indoor Environment Monitoring

    Laboratory climate control cabinet

    Laboratory Climate Control Cabinet

    FAQ
    โฏ

    The sensor detects relative humidity using a sensitive capacitive element that changes capacitance with moisture in the air. This change is converted into a linear analog voltage signal ranging from 0 to 10V, which corresponds directly to the measured humidity range (0~99.9%RH).

    โฏ

    The sensor can be mounted in ducts or on walls. It features a breathable, dustproof design, aluminum alloy housing for durability, and comes with a probe bracket or wall mount option for secure and flexible installation.

    โฏ

    Yes. The housing is designed with a breathable but dustproof structure, often with a sintered metal filter cap that protects the sensing element. It can work reliably in non-condensing environments with 15%RHโ€“90%RH humidity.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Felix | 5/20/2026 1:05 AM
    Spot on 0-10V output
    Needed a new analog humidity sensor for an indoor plant setup and decided on this alloy one. Glad I did. The response to humidity shifts is pretty snappy, and it hooked right up to our PLC without any fuss. Didn't even have to recalibrate anything. The signal is solid and the metal casing feels like it'll actually last. Just works.
