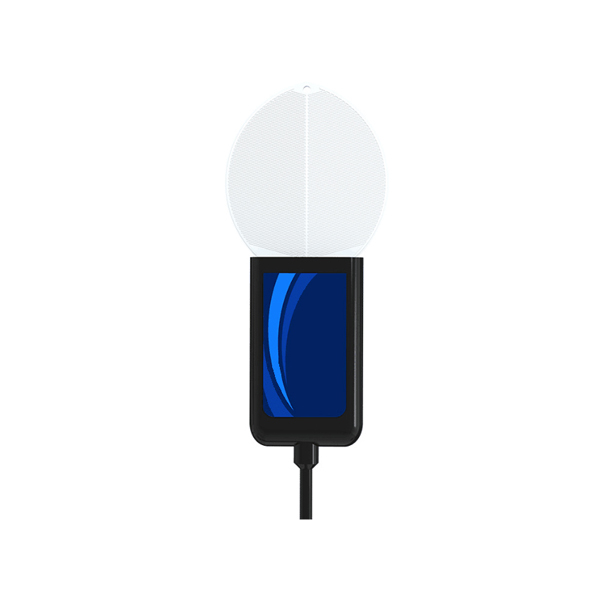

Leaf Humidity Sensor, Temp, RS485/4-20mA/0-5V/0-10V/WiFi

Leaf temp and humidity sensor is designed to accurately monitor leaf surface temperature and humidity, providing reliable data for agricultural and environmental applications. Built with a leaf-simulated structure, humidity sensor ensures precise detection of dew, micro water droplets, and surface moisture with fast response and high stability. SUCH temperature and humidity sensor supports multiple output signals, including RS485, 4-20mA, 0-5V, and 0-10V, WiFi making it easy to integrate into various monitoring and control systems. With low power consumption, IP68 waterproof protection, and durable construction, it is ideal for use in greenhouses, crop disease warning, agricultural research, and intelligent farming environments.

Feature

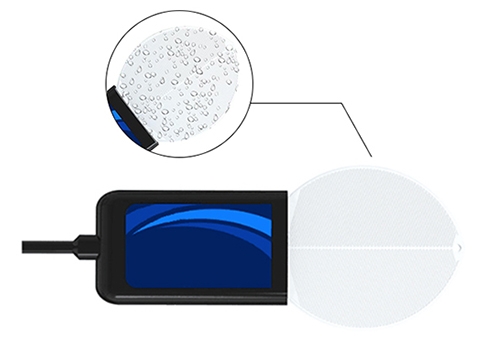

• Leaf Simulation Structure: Designed to mimic real leaf characteristics, ensuring accurate measurement of surface temperature and humidity.
• Low Power Consumption: Efficient operation with minimal energy use, suitable for long-term continuous monitoring.
• High Accuracy: Temperature and humidity sensor provides precise data on micro water droplets, dew, or ice crystals on leaf surfaces.
• Fast Response: Rapid detection of changes in the leaf environment for timely monitoring.
• Multiple Outputs: Supports RS485 (Modbus-RTU), 4–20mA, 0–5V, and 0–10V signals for flexible integration.
• IP68 Waterproof Protection: Sealed design resistant to water, dust, and corrosion, ideal for outdoor use in spraying, irrigation, and fertilization environments.
• Durable Housing: ABS engineering plastic and epoxy resin materials ensure strength and reliability.
• Easy Installation: Compact and lightweight design, can be mounted in greenhouses, weather stations, or agricultural monitoring systems.
• Wide Applications: Used in crop disease warning, greenhouse monitoring, vegetable and flower cultivation, livestock barns, and agricultural research.

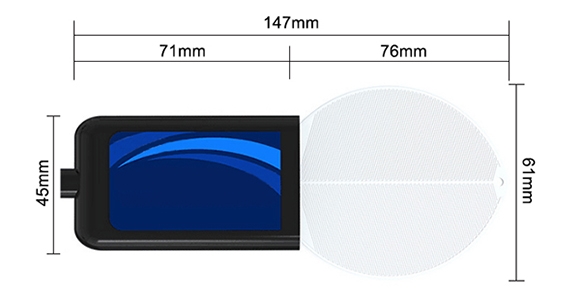

Dimension

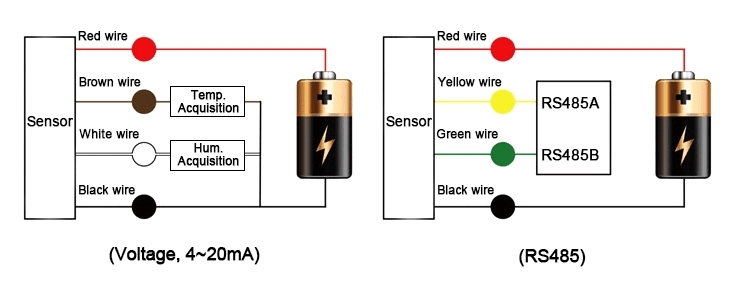

Wiring
