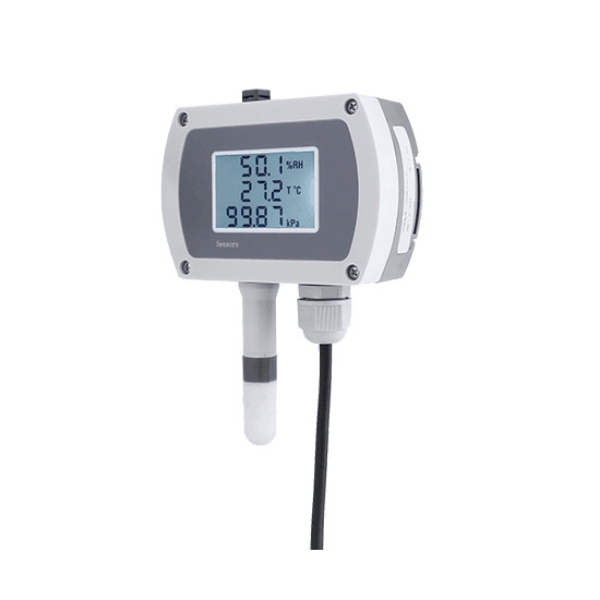

Humidity Sensor with Display, 0-100%RH, -40~125℃

SKU: SUCH-TH-DIS

$99.67

● Humidity range 0~100%RH ● Temperature range -40~125℃ ● Pressure range 0~110kPa(A) ● Output signal RS485 ● Power supply 5~28VDC

Accuracy *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Humidity sensor with display is a high-performance device designed for precise environmental monitoring. Featuring a clear LCD screen, SUCH temperature humidity sensor provides real-time temperature, humidity, and atmospheric pressure readings with reliable RS485 output and a 5~28VDC power supply. Its patented slide rail structure and elastic fastening clip enable fast installation and easy maintenance, while durable metal threaded parts and a protective polyethylene cap ensure long-lasting stability, dust-proof protection, and resistance to corrosion

Feature

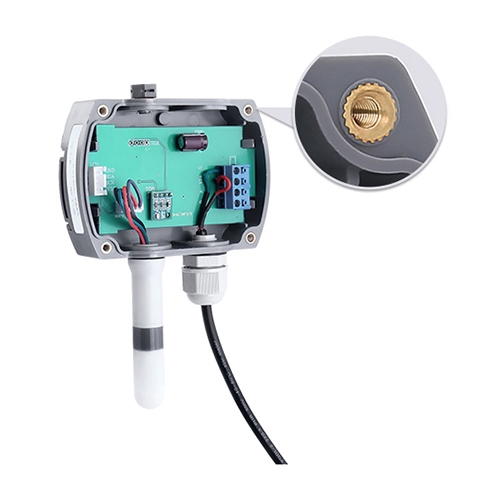

Humidity sensor with display feature

LCD Display: Temperature humidity sensor equipped with a clear LCD screen for real-time monitoring of temperature and humidity values.
Multi-Function Measurement: Supports simultaneous measurement of temperature, humidity, and atmospheric pressure, integrating multiple functions into one device.
Patented Slide Rail Structure: Special design allows quick installation and convenient on-site maintenance without complex tools.
Elastic Fastening Clip: Ensures the housing and mounting plate are firmly secured for stable performance.
Durable Metal Threaded Parts: Built with internal threaded metal fittings, offering strong durability and long service life.
Protective Cap Design: Patented polyethylene material cap provides dust-proof, anti-corrosion, and breathable protection, ensuring sensor reliability in harsh conditions.
Metal Components Quality: High-quality metal parts enhance wear resistance and durability, ensuring long-term stability.

Standard Accuracy and High Accuracy Error

Temperature & Humidity Standard Error

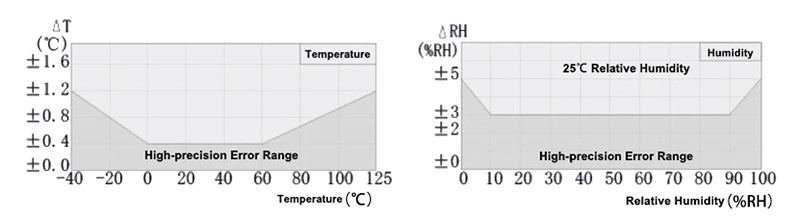

Humidity sensor with display standard accuracy

Temperature & Humidity High-Accuracy Error

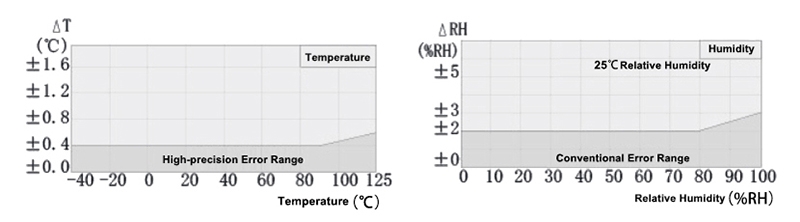

Humidity sensor with display high accuracy

Dimension

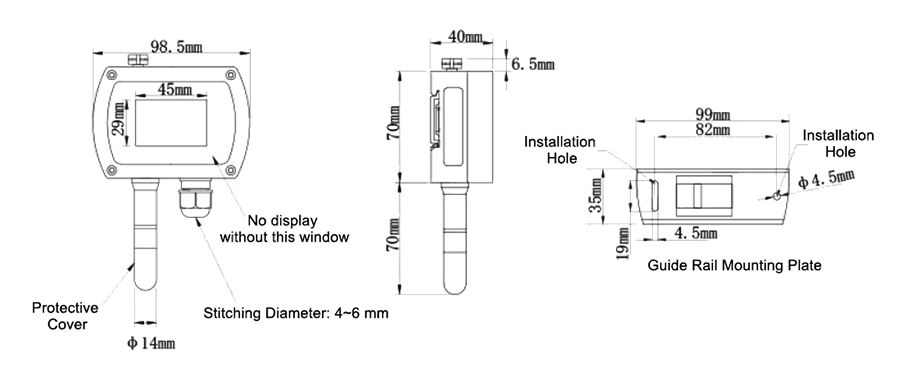

Humidity sensor with display size

Detail

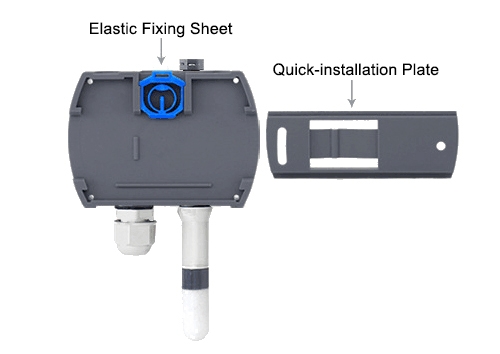

Humidity sensor with display detail

Wiring

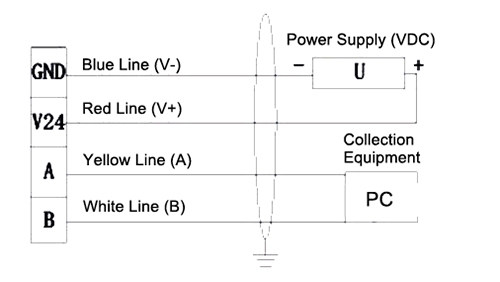

Humidity sensor with display wiring

Note: The coil represents the shielded wire, and all marked grounding points must be effectively grounded. It is recommended to use shielded twisted-pair signal cables. To avoid ground loops, the shielding layer should be grounded at a single end: insulated and floating at the transmitter end, and grounded at the control cabinet end.

Specs

Measured Medium	Gas (compatible with contacted materials)
Temperature Range	-40~125℃
Humidity Range	0~100%RH
Pressure Range	0~110kPa(A)
Output Signal	RS485
Power Supply	5~28VDC
Weight	160g
Response Frequency	≤2Hz
Stability	±1%RH FS/year, ±0.2℃/year
Protection Grade	IP65
Response Speed	Temperature step 10℃, Humidity step 10%RH, Air flow 0.1m/s
Response Time (No Filter)	Temperature: 15s, Humidity: 15s
Response Time (With Filter)	Temperature: 55s, Humidity: 35s
Atmospherikc Pressure Accuracy	0.25%FS
Max Power (With Display)	≤0.025Us(W)
Environmental Temperature	-40~85℃
Environmental Humidity	10%~90%RH (no condensation)
Electrical Protection	Short-circuit: Permanent; Reverse polarity: No damage but not working; Insulation resistance ≥100MΩ, 500VDC; Dielectric strength: 500VAC
Output Limitation (Temperature)	Min 0 / Max 1650
Output Limitation (Humidity)	Min 0 / Max 1000
Output Limitation (Pressure)	Min 100 / Max 15000
Material (Housing)	ABS engineering plastic
Material (Filter)	Polyester fiber (density 50μm)
Material (Cable Gland)	Nylon (cable diameter 4~6mm)
Material (Seal)	Neoprene rubber
Display	LCD with backlight
Mechanical Stability (Vibration)	5g (20…2000Hz), IEC60068-2-6 standard
Mechanical Stability (Shock)	500g/1ms, IEC60068-2-27 standard

Application

HVAC Systems

Indoor Environment Monitoring

Greenhouses

FAQ

Q1: What is the main advantage of having an LCD display on this humidity sensor? ❯

The LCD display allows users to check real-time humidity and temperature values directly on-site without needing additional monitoring equipment.

Q2: Can this temperature humidity sensor be used in both residential and industrial environments? ❯

Yes, the design makes it suitable for home, office, greenhouse, warehouse, and industrial facilities, covering a wide range of applications.

Q3: Is the device environmentally friendly? ❯

Yes, the design emphasizes low energy consumption and durable construction, reducing waste and replacement needs.
