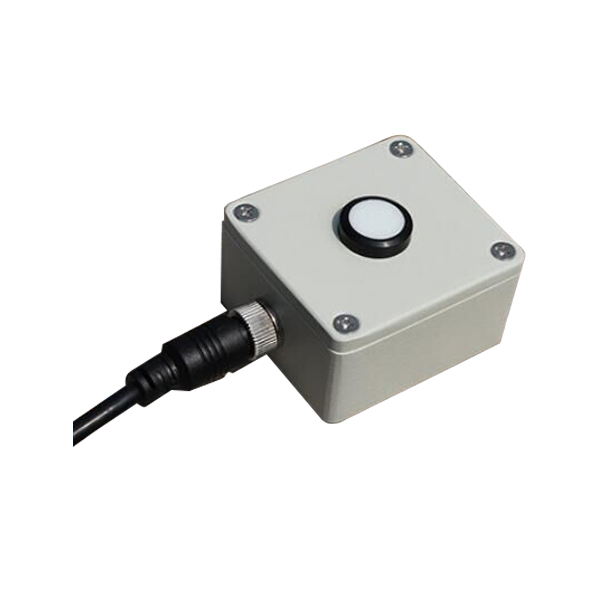

Daylight Sensor for Outdoor, RS485

Name: Daylight Sensor for Outdoor, RS485
Brand: Such.com
SKU: SUCH-LS-DL
Price: 115.89 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-LS-DL

$115.89

● 0-2,000 lux/0-20,000 lux/0-200,000 lux optional measurement range ● Spectral range 400-700 nm (visible light) ● Output signal RS485 Modbus (0-200 klux) ● IP65 ingress protection

Measuring Range *
Output Signal *
Output Signal *
Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Daylight sensor for outdoor is a high-accuracy illuminance sensing device designed for reliable outdoor daylight monitoring. It offers optional wide measurement ranges of 0-2,000 lux, 0-20,000 lux, and 0-200,000 lux, with a spectral response of 400-700 nm to accurately detect visible light. Supporting RS485 Modbus communication, the light sensor ensures stable long-distance data transmission with strong noise immunity. Housed in a durable die-cast aluminum enclosure with IP65 protection, it delivers excellent linearity, stability, and resistance to harsh environmental conditions. With compact design, easy installation, and integrated current-limiting protection, this daylight sensor is well suited for agriculture, greenhouses, environmental monitoring, and other outdoor illumination control applications.

Feature

Daylight sensor feature

High Accuracy and Wide Measurement Range: SUCH daylight sensor delivers precise daylight measurement with a wide detection range, ensuring accurate sensing of ambient light variations.
Excellent Linearity and Stability: Provides good linearity and long-term measurement stability for reliable continuous outdoor monitoring.
Industrial-Grade RS485 Output: Uses RS485 communication for stable long-distance signal transmission with strong noise immunity.
Strong Anti-Interference Performance: Designed to resist electrical and environmental interference, ensuring consistent data transmission in complex outdoor environments.
IP65 Ingress Protection: Features an IP65-rated enclosure that is dustproof and waterproof, suitable for harsh outdoor conditions.
Aluminum Alloy Housing: Constructed with a die-cast aluminum alloy enclosure for enhanced durability, corrosion resistance, and long service life.
Compact Size and Easy Installation: Small form factor allows convenient installation and flexible deployment in various outdoor locations.
Long Transmission Distance: Supports stable signal transmission over long distances, ideal for distributed outdoor monitoring systems.
Current Limiting Protection: Integrated current-limiting design enhances operational safety and system reliability.
Wide Application Compatibility: Suitable for outdoor daylight monitoring in agriculture, greenhouses, environmental monitoring, and eco-protection applications.

Detail

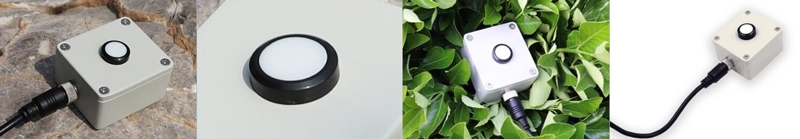

Daylight sensor details

Specs

Optional Measurement Range	0-2,000 lux / 0-20,000 lux / 0-200,000 lux
Spectral Range	400-700 nm (Visible Light)
Measurement Accuracy	±3% or ±1% F.S.
Operating Principle	Photoelectric principle
Power Supply Voltage	DC 12 V / DC 24 V
Output Signal	RS485 Modbus (0-200 klux)
Response Time	1 s
Operating Current	DC 12V <35 mA (voltage/current output); DC 12V <20 mA (RS485)
Power Consumption	DC 12V <0.42W (voltage/current output); DC 12V <0.24W (RS485)
Operating Environment	Temperature: −30 to +60 °C
Standard Cable Length	3 m
Ingress Protection	IP65

Daylight Sensor for Outdoor User Manual.PDF

Application

Environmental Monitoring Stations

Smart Greenhouse Systems

Industrial Automation

FAQ

Q1: Can the light sensor be exposed to direct sunlight? ❯

Yes. The sensor is designed to operate reliably under direct sunlight within its specified measurement range, including high illuminance outdoor conditions.

Q2: Does cable length affect measurement accuracy or signal quality? ❯

RS485 communication is highly resistant to noise and supports long cable runs. Proper shielding and grounding are recommended for optimal performance.

Q3: Can the light sensor operate in high-humidity environments? ❯

Yes. The IP65-rated enclosure protects the sensor from dust and water splashes, making it suitable for humid and outdoor environments.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Evan Bates | Date: 9/21/2026 9:21 AM

Good daylight sensor for outdoor monitoring

I put this daylight sensor on a small weather monitoring setup outside. Finding a good spot took a little trial and error because I didn’t want the nearby structure blocking the light. I’m using RS485 to get the readings back to the controller. Had to check the readings a few times after mounting it, but everything has been looking good so far.
