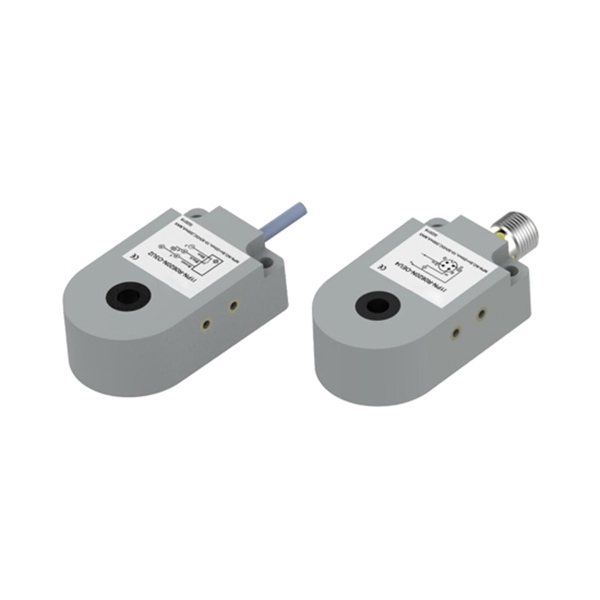

Ring Type Inductive Proximity Sensor, 6mm, NPN/PNP/2 Wire

SKU: SUCH-IPS-T6

$124.60

● 6mm ring type inductive proximity sensor ● High resolution, short response time ● IP67 protection rating, plug connection ● Component/metal spring/line segment inspection

Specification Selection *
Lead Wire *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

6mm inductive proximity sensor, ring type, manufacturer direct sale. This ring proximity switch provides NPN/PNP/2 wire output methods, DC24V/AC110V/AC 230V output voltage, direct lead wire/M12 connector wire types, and IP67 protection level, suitable for component detection, metal spring detection and wire detection.

Feature

SUCH 6mm inductive proximity sensor offers a variety of output options to meet the needs of different industrial applications.
It supports both cable connections and miniature quick-disconnect connectors, providing flexible installation and easy maintenance. Some ring-type inductive sensor models feature adjustable sensitivity.
The ring proximity sensor includes reverse polarity protection, short-circuit protection, and overload protection, ensuring safe and stable system operation.

Dimension (Unit: mm)

Wiring Diagram

Specs

Lead wire types			Direct lead wire	M12 connector
Mounting			Flush
Output methods	DC24V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		2 wire	NO
			NC
	AC110V	2 wire	NO
			NC
	AC230V	2 wire	NO
			NC
Operating voltage		DC24V	10-36V
		AC110V/ AC230V	AC90-250V
Output current		DC24V	100mA (2 wire), 200mA(3/ 4 wire)
		AC110V	500mA
		AC230V	DC 100mA/ AC 300mA
Ring Diameter			6mm
Response frequency			500Hz
Environment temperature			-20~80℃
Insulation resistance			>20MΩ
Repeated accurancy			≤5%
Leak current			≤0.4mA(DC 2wire), ≤1.6mA(AC), ≤0.05mA (DC 3/4 wire)
Shell material			ABS
Protection grade			IP67
Weight			1kg
Certificates			CE, RoHS
Warranty			12 months

Application

Automotive Manufacturing

Electronic Component Production

Machine Tool Workshop

FAQ

Q1: What is a ring-type inductive proximity sensor and how does it work? ❯

SUCH ring-type inductive proximity sensor detects metal objects passing through the center hole of the sensor. It works by generating an electromagnetic field around the ring; when a metal target enters this field, the sensor outputs a switching signal. This design is especially suitable for detecting shafts, bolts, wires, or small metal parts in through-hole applications.

Q2: What is a 2-wire ring-type inductive proximity sensor? ❯

The 2-wire ring-type inductive proximity sensor is an inductive sensor that detects metal objects passing through the center hole and operates with only two connection wires. It works like an electronic switch and is powered directly through the load without a separate signal wire.

Q3: What does the 6mm ring size mean and where is it typically used? ❯

The 6mm specification refers to the inner diameter of the ring opening. This size is suitable for detecting small metal parts such as pins, screws, shafts, or wires passing through the sensor, and is commonly used in counting, positioning, and presence detection applications.
