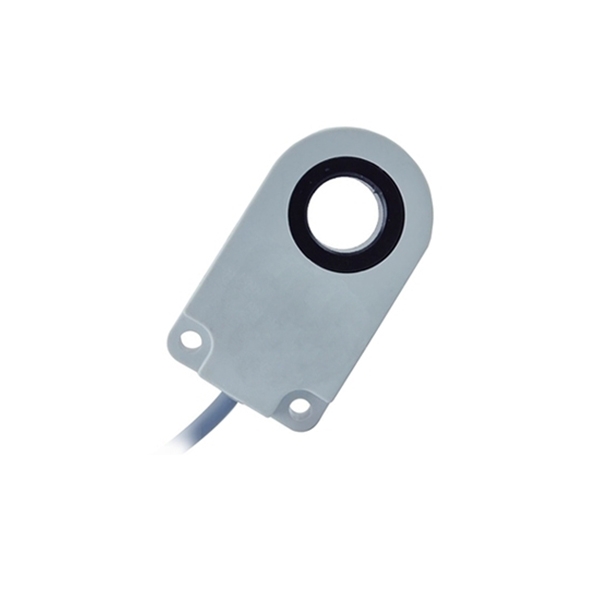

15mm Ring Type Inductive Proximity Sensor, NPN/PNP/2 Wire

SKU: SUCH-IPS-T15

$130.26

● 15mm ring type inductive proximity sensor ● High resolution, short response time ● IP67 protection rating, plug connection ● Component/metal spring/line segment inspection

Specification Selection *
Lead Wire *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQs
Reviews

Overview

SUCH 15mm ring type proximity sensor offers direct lead wire or M12 connector 2 wiring types, CE and RoHS certified, IP67 protection rating and NPN, PNP or 2 wire (NO/NC) 3 output methods. It operates at DC 10-36V or AC 90-250V and uses ABS plastic shell material, can operate stably in harsh industrial environments.

Feature

SUCH 15mm inductive proximity sensor offers a variety of output options to meet the needs of different industrial applications.
It supports both cable connections and miniature quick-disconnect connectors, providing flexible installation and easy maintenance. Some ring-type inductive sensor models feature adjustable sensitivity.
The ring proximity sensor includes reverse polarity protection, short-circuit protection, and overload protection, ensuring safe and stable system operation.

Dimension (Unit: mm)

Wiring Diagram

Specs

Lead wire types			Direct lead wire	M12 connector
Mounting			Flush
Output methods	DC24V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		2 wire	NO
			NC
	AC110V	2 wire	NO
			NC
	AC230V	2 wire	NO
			NC
Operating voltage		DC24V	10-36V
		AC110V/ AC230V	AC90-250V
Output current		DC24V	100mA (2 wire), 200mA(3/4 wire)
		AC110V	500mA
		AC230V	DC 100mA/ AC 300mA
Ring Diameter			15mm
Response frequency			500Hz
Environment temperature			-20~80℃
Insulation resistance			>20MΩ
Repeated accurancy			≤5%
Leak current			≤0.4mA(DC 2wire), ≤1.6mA(AC), ≤0.05mA (DC 3/4 wire)
Shell material			ABS
Protection grade			IP67
Weight			1kg
Certificates			CE, RoHS
Warranty			12 months

Application

Automotive Manufacturing

Electronic Component Production

Machine Tool Workshop

FAQs

Q1: Can this 15mm ring sensor be used in wet environments? ❯

It depends on the protection level. SUCH ring-type inductive proximity sensors have IP67 protection, suitable for wet environments with water splashes or oil mist; for submersion or heavy washing, select an IP68-rated version to ensure long-term stability.

Q2: What power supply voltage is required for this 15mm ring-type proximity sensor? ❯

This 15mm ring-type inductive proximity sensor is available in multiple power supply options to suit different applications. DC models typically operate at DC 24V, with a wide operating range of DC 10–36V, making them suitable for PLC and industrial control systems. AC models support AC 110V or AC 230V, and some versions offer a wide-voltage range of AC 90–250V, allowing direct connection to standard mains power. Users should select the appropriate voltage version according to their power supply and control requirements.

Q3: 15mm vs. 6mm Ring Type Inductive Proximity Sensor ❯

The difference is mainly the ring diameter. A 6mm sensor is for small metal objects like pins or wires, while a 15mm sensor can detect larger parts such as bolts, shafts, or springs.
