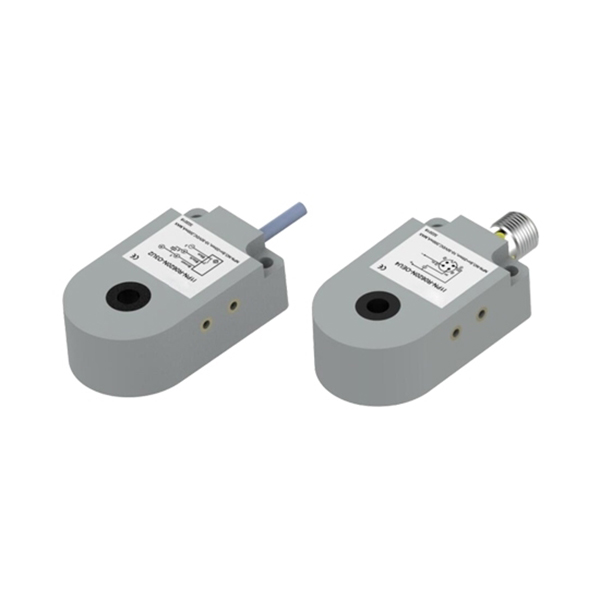

10mm Ring Type Inductive Proximity Sensor, NPN/PNP/2 Wire

SKU: SUCH-IPS-T10

$127.78

● 10mm ring type inductive proximity sensor ● High resolution, short response time ● IP67 protection rating, plug connection ● Component/metal spring/line segment inspection

Specification Selection *
Lead Wire *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

High quality ring type proximity sensor is available with 10mm diameter, NPN/ PNP/ 2 wire 3 outputs, and IP67 protection level. The flush inductive proximity switch is typically used for detecting small objects, such as blind-spot detection, small steel balls, small springs, small rivets, and wire break detection.

Feature

SUCH 10mm inductive proximity sensor offers a variety of output options to meet the needs of different industrial applications.
It supports both cable connections and miniature quick-disconnect connectors, providing flexible installation and easy maintenance. Some ring-type inductive sensor models feature adjustable sensitivity.
The ring proximity sensor includes reverse polarity protection, short-circuit protection, and overload protection, ensuring safe and stable system operation.

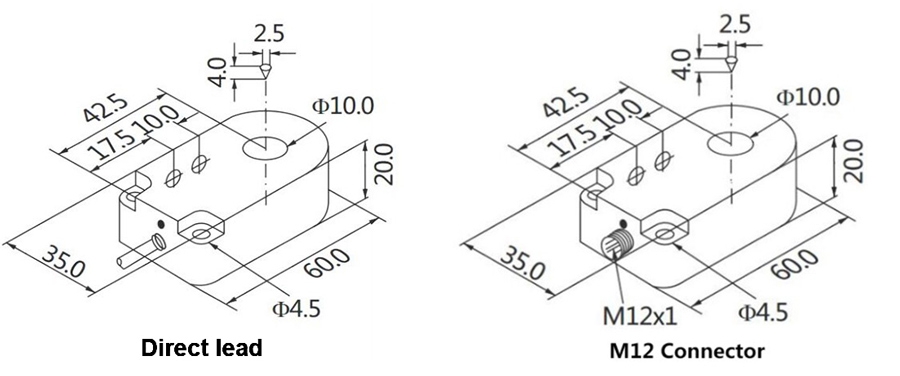

Dimension (Unit: mm)

Wiring Diagram

Specs

Lead wire types			Direct lead wire	M12 connector
Mounting			Flush
Output methods	DC24V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		2 wire	NO
			NC
	AC110V	2 wire	NO
			NC
	AC230V	2 wire	NO
			NC
Operating voltage		DC24V	10-36V
		AC110V/ AC230V	AC90-250V
Output current		DC24V	100mA (2 wire), 200mA(3/4 wire)
		AC110V	500mA
		AC230V	DC 100mA/ AC 300mA
Ring Diameter			10mm
Response frequency			500Hz
Environment temperature			-20~80℃
Insulation resistance			>20MΩ
Repeated accurancy			≤5%
Leak current			≤0.4mA(DC 2wire), ≤1.6mA(AC), ≤0.05mA (DC 3/4 wire)
Shell material			ABS
Protection grade			IP67
Weight			1kg
Certificates			CE, RoHS
Warranty			12 months

Application

Automotive Manufacturing

Electronic Component Production

Machine Tool Workshop

FAQ

Q1: What does "10mm" mean in a ring inductive proximity sensor? ❯

The "10mm" indicates the inner diameter of the ring. It is designed to detect metallic targets that pass through or fit within the 10mm inner ring (e.g., small rods, wires, bolts, or cylindrical components with a diameter ≤8mm) for non-contact presence detection.

Q2: Can a 10mm ring-type inductive proximity sensor detect non-metal objects? ❯

No. Inductive proximity sensors detect only metallic objects. Non-metal materials such as plastic, rubber, or wood will not be detected unless they contain metal components.

Q3: How do I choose between a direct lead wire and an M12 connector? ❯

Choose direct lead wire when you need a compact, low-cost solution and do not plan to disconnect the sensor frequently. Choose an M12 connector when you want faster installation, easier maintenance, or standardized wiring in industrial environments.
