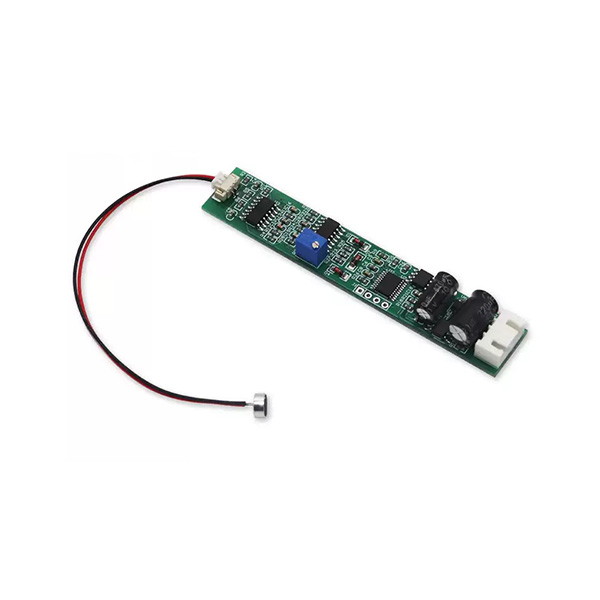

    Small Sound Sensor Module, ModbusRTU Protocol

    1 review(s) | Add your review
    SKU: SUCH-NS-E0211
    $108.46
    ● Compact sound sensor module with RS485 Modbus RTU ● Measurement range: 30~130 dB, frequency range: 31.5Hz~8kHz ● 0.1 dB resolution with ±1.5 dB accuracy ● Suitable for noise monitoring in classrooms, libraries, and workshops
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Small sound sensor module uses an A-weighted measurement method, with a measurement range of 30–130dB and an accuracy of ±1.5dB. It supports Modbus RTU communication protocol and RS485 interface, facilitating integration with various control systems. SUCH noise sensor module features wide voltage input (4.3-25V), multiple selectable response times (100~400ms), and high resolution (0.1dB), enabling it to quickly and accurately reflect changes in ambient noise. With its compact structure (90×16mm), the sound sensor module is suitable for various noise monitoring scenarios such as dormitories, classrooms, libraries, construction sites, and workshops.

    Feature

    • Employs an A-weighted algorithm for sensitive detection of ambient noise changes, with a rapid and stable response.
    • Supports Modbus RTU protocol and RS485 interface, easily integrated into various monitoring systems.
    • Compact size and easy installation, suitable for various scenarios such as dormitories, classrooms, libraries, and construction sites.

    Wiring Instruction

    Sound sensor module wiring diagram

    Specs
    Operating Voltage 4.3-25V
    Operating Current 19.30mA (@5V)
    Interface Type RS485
    Measurement Range 30-130dB
    Frequency Range 31.5Hz-8kHz
    Weighting Method A-weighted
    Resolution 0.1dB
    Accuracy ±1.5dB
    Response Time 100ms, 250ms, 300ms, 400ms
    Protocol Mode Modbus RTU, Active, Passive
    Byte Format Default 115200, 8 data bits, 1 stop bit, no parity
    Baud Rate 9600, 19200, 38400, 57600, 115200
    Operating Temperature -20~60℃
    PCB Size 90×16mm
    Application

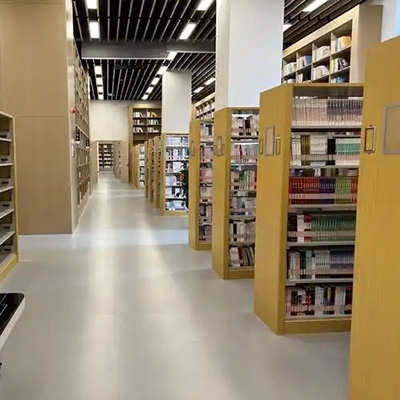

    Library

    Library

    Window sound insulation

    Window Sound Insulation

    Construction site

    Construction Site

    FAQ
    ❯

    The module uses an A-weighted algorithm, and the measurement results are consistent with human hearing, meeting the needs of environmental noise monitoring. However, due to differences in structure and calibration methods, there may be a slight error compared to a professional sound level meter. It is suitable for trend monitoring or system integration.

    ❯

    The module itself is an electronic component and requires a waterproof housing or acoustic windproof cover to be used in outdoor or high-humidity environments.

    ❯

    The module is mainly used for sound pressure level detection of environmental noise (such as human voices, mechanical sounds, traffic noise, etc.), without distinguishing between sound sources or types.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Grant Pritchard | 10/13/2026 9:24 AM
    Handy sound sensor module for classroom monitoring
    I’m using this sound sensor module to keep track of noise levels in a classroom. I mainly wanted to see how much the noise changes throughout the day. Getting the RS485 connection working took a little trial and error, but I’ve got it talking to the controller now. It’s been useful for checking when the room gets loud, especially during busy periods.
