    Picture of Water Quality Transparency Sensor, 50~ 2000 mm Picture of Water Quality Transparency Sensor, 50~ 2000 mm Picture of Water Quality Transparency Sensor, 50~ 2000 mm Picture of Water Quality Transparency Sensor, 50~ 2000 mm

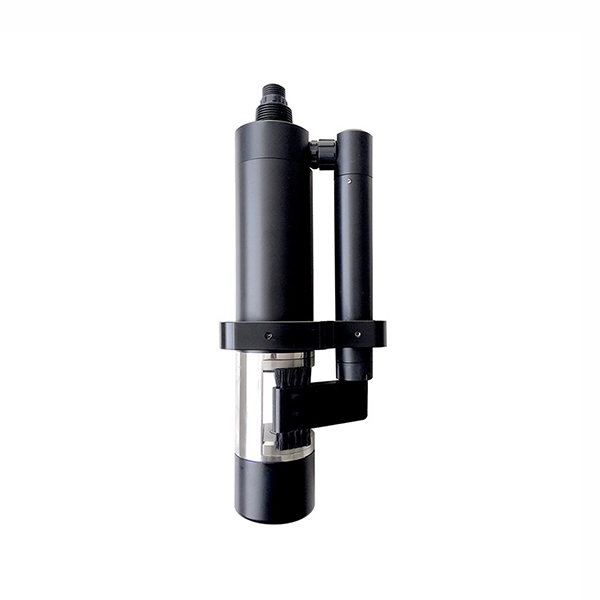

    Water Quality Transparency Sensor, 50~ 2000 mm

    0 review(s) | Add your review
    SKU: SUCH-WQS-206
    $2,974.85
    ● 50~ 2000 mm ● 1 mm resolution ● RS-485 (Modbus RTU) ● Visible light absorption method
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    High-performance and affordable water transparency sensors for sale, with a measurement range of 50–2000 mm. Combining automatic temperature compensation with a stable optical structure. The transparency sensors support Modbus RTU protocol for stable communication. Featuring a robust 316L stainless steel and POM housing, they deliver outstanding performance in wastewater, rivers, reservoirs, and similar environments.

    Feature

    Transparency sensor feature

    • The SUCH water quality sensor measures transparency and water temperature parameters. It features a cleaning brush to prevent impurities and microbial buildup.
    • Digital signal output, RS-485 interface, Modbus RTU protocol, with low-power consumption and anti-interference design.
    • The transparency sensor is non-invasive, economical, environmentally friendly, compact in size, and easy to install. It enables continuous, uninterrupted online water quality monitoring.

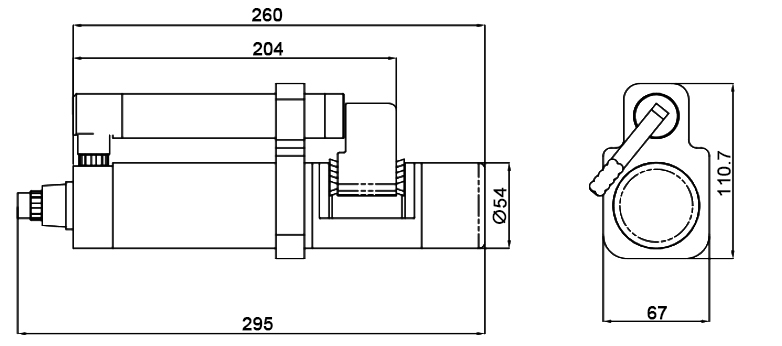

    Dimension (unit: mm)

    Transparency sensor dimension

    Wiring Diagram

    Transparency sensor wiring diagram

    Installation Note

    Transparency sensor installation note

    1 2 3
    When installing the sensor, prevent it from colliding with walls or other hydraulic structures due to water flow. If the current is strong, secure the sensor in place. Install the sensor no more than 2 meters below the water surface. To account for water level fluctuations, submerge the sensor at least 30 cm below the lowest possible water level.
    4 5 6
    Position the sensor in the water where no air bubbles are present. Install a cable protector over the sensor cable and secure the sensor as shown in the diagram above. Secure it firmly and position the sensor horizontally as shown in the diagram below.
    Specs
    Measurement Principle Visible light absorption method
    Measurement Range 50~2000 mm
    Resolution 1 mm
    Accuracy ±10%; ±0.3 °C
    Response Time T90 < 30 s
    Minimum Detection Limit 50 mm
    Calibration Method Two-point calibration
    Cleaning Method Integrated cleaning brush
    Temperature Compensation Automatic temperature compensation (Pt1000)
    Output Method RS-485 (Modbus RTU)
    Storage Temperature −5 to 65 °C
    Operating Conditions 0 to 60 °C, ≤0.2 MPa
    Housing Material POM and 316L
    Mounting Method Immersion installation
    Power Consumption 0.2 W @ 12 V
    Power Supply 12 to 24 V DC
    Protection Rating IP68
    Application

    Water quality sensor for aquaculture

    Aquaculture

    Water quality sensor for industrial circulating water

    Industrial Circulating Water

    Water quality sensor for water treatment plant

    Wastewater Treatment Plant

    FAQ
    ❯

    Many substances suspended in water absorb or block visible light, reducing the water's transparency. Therefore, water transparency can be calculated by measuring the light absorption of substances in the water. Transparency sensors are designed based on this principle. When immersed in the liquid being tested, the sensor reads and measures the liquid's absorbance of light at specific wavelengths. Through specific curve fitting and calculations, it ultimately determines the transparency data.

    ❯

    Transparency sensors are widely used in drinking water treatment, wastewater treatment plants, river and lake monitoring, aquaculture, and industrial circulating water systems. They provide real-time feedback on water quality changes.

    ❯

    It supports RS485 interfaces and Modbus protocol, enabling connection to PLCs, data loggers, or monitoring systems for remote monitoring and automated management.
