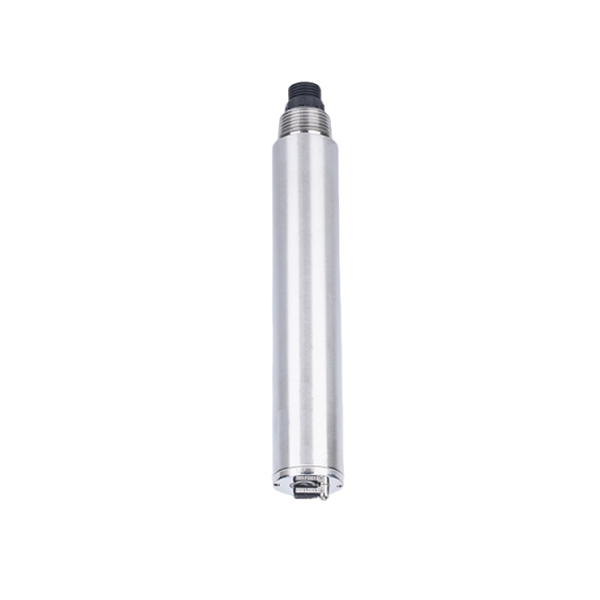

Water Quality Sludge Sensor, 0~20 g/L

0 review(s) | Add your review

SKU: SUCH-WQS-MISS

$2,275.21

● 0~20 g/L range ● 0.001 g/L resolution ● RS-485, 4-20mA ● Scattering light method

Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

High-resolution water quality sludge sensors for sale, utilizing proven scattered light measurement technology to reliably measure sludge concentrations from 0–20 g/L. With a 316L stainless steel housing and an IP68 protection rating, designed for long-term submerged operation. SUCH sludge sensors support RS485 or 4–20mA output, featuring simple installation and maintenance, making them ideal for demanding environments such as wastewater treatment plants and sedimentation tanks.

Feature

Sludge sensor feature

Utilizes light scattering principle with built-in temperature sensor, supports RS-485 (Modbus RTU) protocol, and 4-20 mA current output.
Sludge sensors employ infrared LED light sources for high stability, featuring pure quartz optical paths with strong resistance to external light interference.
Water quality sensor boasts IP68 protection, 0.2 MPa high-pressure resistance, and IP68 rating, enabling normal operation at depths up to 20 meters.

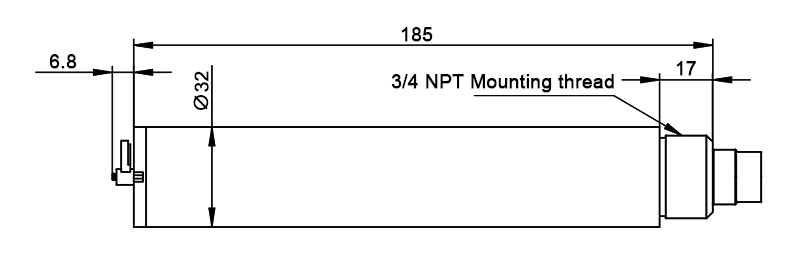

Dimension (unit: mm)

Sludge sensor dimension

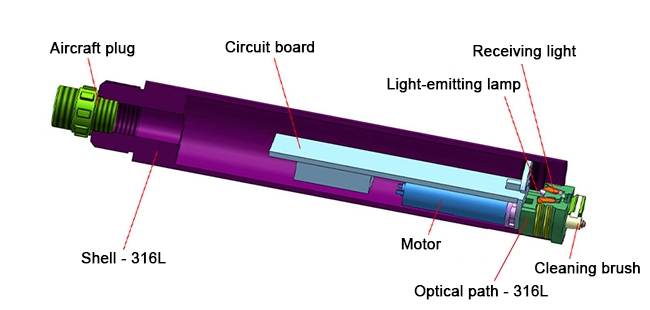

Detail

Sludge sensor detail

Specs

Measurement Principle	Scattering light method
Measurement Range	0~20 g/L
Resolution	0.001 g/L
Accuracy	±5% of reading (depending on sludge homogeneity), ±0.3 °C
Response Time	T90<30s
Minimum Detection Limit	1 mg/L
Calibration Method	Two-point calibration
Cleaning Method	Integrated cleaning brush
Temperature Compensation	Automatic temperature compensation (Pt1000)
Output Method	RS-485 (Modbus RTU), 4–20 mA (optional)
Storage Temperature	−5 to 65 °C
Operating Conditions	0 to 40 °C, ≤0.2 MPa
Mounting Method	Submersible installation, 3/4 NPT
Power Consumption	0.2 W @ 12 V
Power Supply	12 to 24 V DC
Protection Rating	IP68
Housing Material	316L
Cable Length	5m, other lengths customizable

Application

Municipal Wastewater

Sludge Thickening Tank

Industrial Wastewater

FAQ

Q1: Working principle of sludge sensor ❯

The sludge concentration sensor is designed based on the principle of light scattering measurement. When a light beam enters the water sample, suspended particles within the sample cause light scattering. By measuring the intensity of the backscattered light and comparing it with internal calibration values, the sludge concentration in the water sample is calculated. The final value is output after linearization processing.

Q2: What does a water quality sludge sensor primarily measure? ❯

Water quality sludge sensors are primarily used to measure sludge concentration or suspended solids content in water bodies. They are commonly employed in scenarios such as wastewater treatment, sedimentation tanks, return sludge, and sludge discharge control, helping to achieve stable process operation.

Q3: What application environments are suitable for water quality sludge sensors? ❯

The sludge sensors are suitable for municipal sewage, industrial wastewater, sludge thickening tanks, and biochemical treatment systems. They can operate stably over extended periods under specific temperature, pressure, and corrosive conditions.
