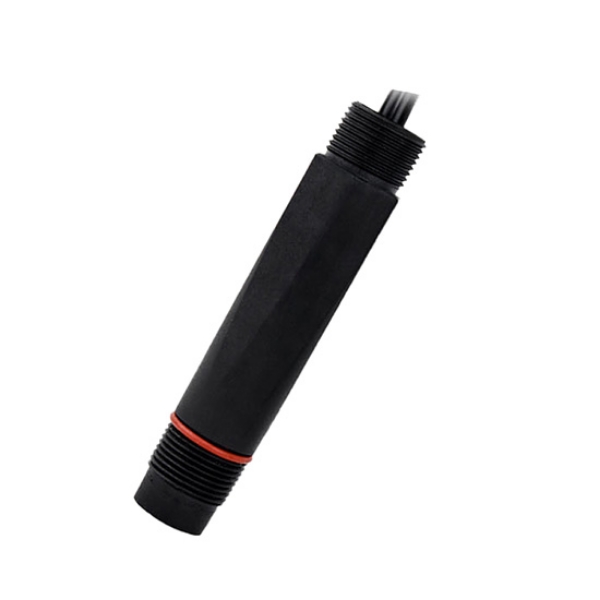

Flat pH Electrode for Water Quality Monitoring

SKU: SUCH-PHS-PH7001
$167.46
● Measuring range 0-14 pH ● Temperature range 5-80℃ ● Standard interface NPT 3/4, easy installation ● Flat design, anti-fouling
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

Flat pH electrode adopts a hidden bulb design, which is suitable for complex environments with more sulfides and solid impurities such as desulfurization tanks and desulfurization towers. SUCH flat pH electrode has strong anti-pollution ability and can effectively extend the service life and maintain measurement stability. Its measurement range is 0~14pH, the applicable temperature range is 5~80℃, it supports 0.2MPa working pressure, equipped with standard NPT 3/4 thread, easy to install, and can stably monitor industrial water quality online.

Feature

  • Accurate and stable: The ring-shaped polytetrafluoroethylene reference liquid junction and the special glass sensitive membrane are used to ensure accurate and reliable measurement.
  • Anti-fouling and durable: The flat design prevents fouling and scaling, and is suitable for working conditions with more solid impurities.
  • Designed for desulfurization: It is suitable for complex environments containing sulfides such as desulfurization tanks and desulfurization towers, with stable and long-lasting performance.

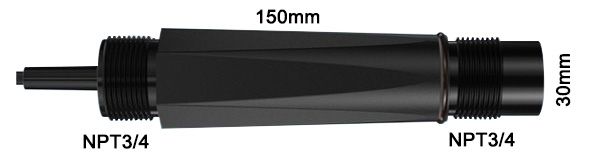

Dimension (Unit: mm)

Flat ph electrode dimension

PH electrod installation methods

  1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
  2. Flange mounted at the top
  3. Pipe installation
  4. Top installation
  5. Submersible installation
  6. Flow-through installation

 pH electrode installation

Specs
Measuring Range 0~14pH
Temperature Range 5~80℃
Pressure Resistance 0.2MPa
Accuracy ±0.02ph
Temperature Compensation NTC10K, PT100, PT1000 (Please contact us)
Thread NPT3/4
Material PPS
Application Range Desulfurization, lime water and other working conditions
Application

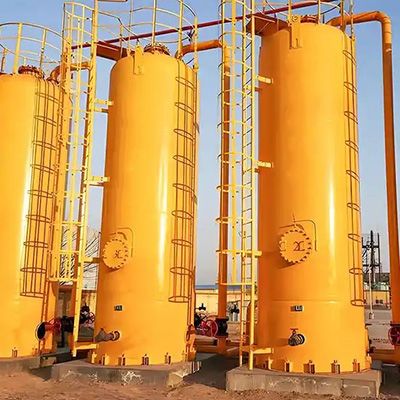

Desulfurization tower

Desulfurization Tower

Desulfurization tank

Desulfurization Tank

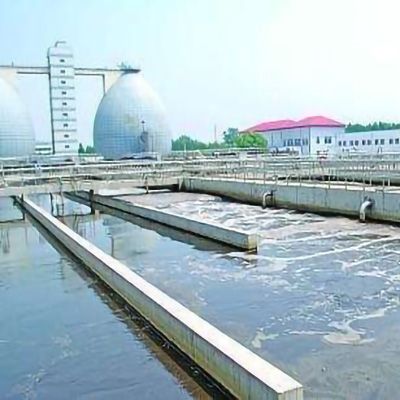

Wastewater treatment

Wastewater Treatment

FAQ

This electrode is suitable for desulfurization tanks, desulfurization towers, industrial wastewater, high solid suspended solids and complex water quality environments with more sulfides.

The electrode is equipped with a standard NPT3/4 threaded interface and can be directly installed at the corresponding interface on the pipe or pool wall to ensure reliable sealing.

The electrode surface can be gently cleaned with clean water or diluted cleaning fluid, avoid scratching with hard objects, and use professional electrode cleaning fluid when necessary.
