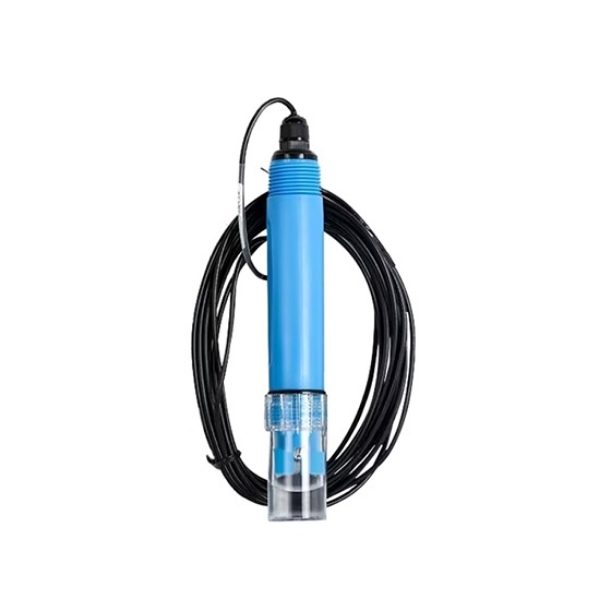

Online Combination pH Electrode, 2~12 pH

Online combination pH electrode is a durable and high-precision sensor commonly used for tap water and conventional sewage treatment. It provides a wide measurement range of 2 to 12 pH with a resolution of 0.01 pH. It has a pressure resistance of up to 0.4 MPa and an operating temperature range of 0℃ to 60℃, which can operate reliably. SUCH electrode body is made of chemically resistant polyphenylene sulfide (PPS), and both the upper and lower parts are 3/4 NPT pipe threads, which are flexible to install and can be used in wastewater treatment, aquaculture, and industrial process control.

Feature

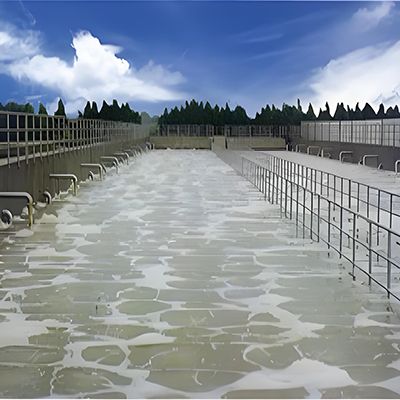

• Suitable for domestic sewage, tap water, environmental monitoring, and neutralization treatment of conventional wastewater.
• Offers high accuracy and durability for long-term pH measurement.

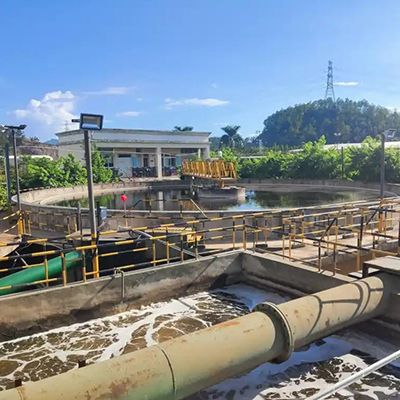

• Widely used in chemical processes such as water treatment, waste gas treatment, aquaculture, and dosing systems.
• Features an advanced large-section Teflon diaphragm for a stable and reliable liquid junction.
• Equipped with a special anti-interference wire and optimized production process to ensure strong noise resistance.
• The reference system is filled with high molecular polymer, minimizing reference liquid loss and enhancing stability.

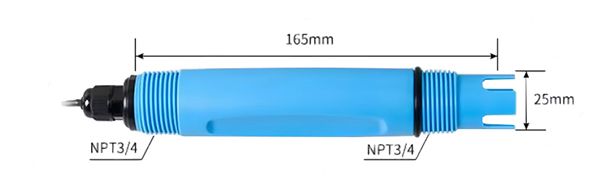

Dimensions (Unit: mm)

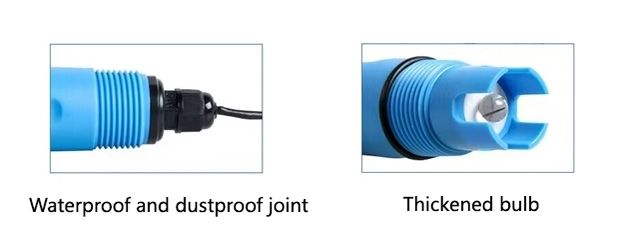

Detail

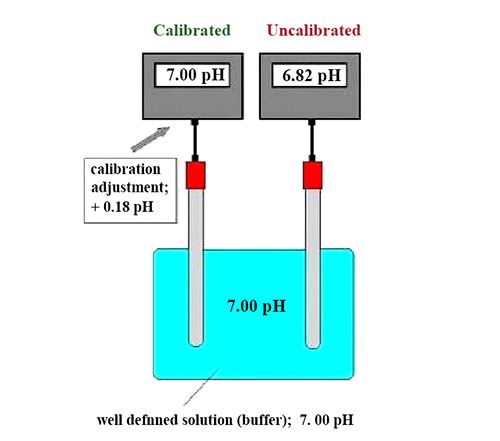

pH Calibration

1. A pH calibration is the procedure of adjusting the pH meter by measuring solutions of known pH values. The characteristic of a pH electrode will change with time due to electrode coating and aging. And even a pH electrode would be stable over time, pH electrodes cannot be produced with identical characteristics.
2. In practice the response of a real pH sensor does not exactly follow the Nernst equation. This difference between the theoretical and actual behavior of a pH electrode must be compensated for. A calibration is required to match the pH meter to the current characteristics of the used pH sensor.
