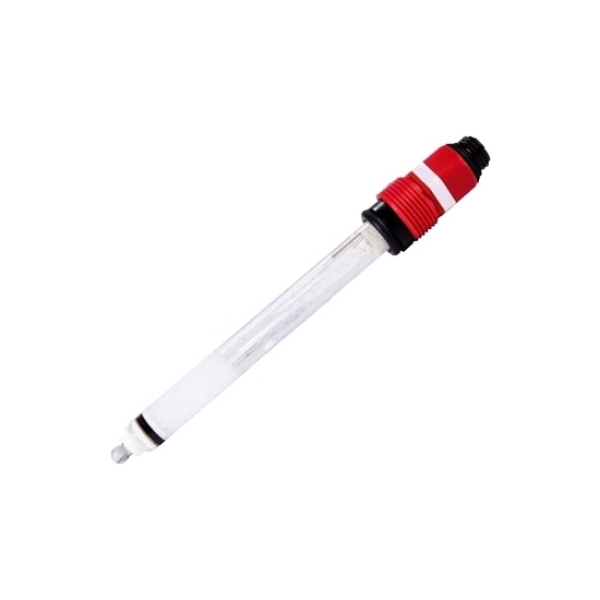

Online pH Glass Electrode for Laboratory

Good price online pH glass electrode is suitable for pH measurement in laboratories and special scenarios. It has a wide measurement range of 0-14 pH, a pressure resistance of 10 bar, and can work stably under temperature conditions of 0~135℃. The storage temperature is -5~30℃. SUCH pH electrode is suitable for suspensions, varnishes, media containing solid particles, and media containing fluoride (hydrofluoric acid). Its plug-in probe design is easy to install and replace.

Feature

• Made of high-toughness glass material, suitable for 0~135℃ environment, with a pressure resistance of 10 Bar, and is compatible with a variety of complex working conditions.
• The ductile annular protective diaphragm design effectively prevents medium deposition and clogging, and reduces maintenance frequency.
• Solid-state reserve salt ring structure with built-in electrolyte crystal ring is suitable for low ion concentration and high flow rate environment.
• Strong stability and long life ensure the accurate measurement performance of the electrode in long-term continuous operation.

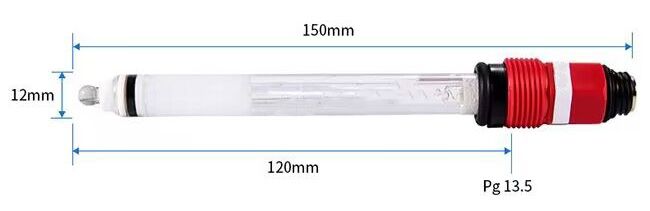

Dimension (Unit: mm)

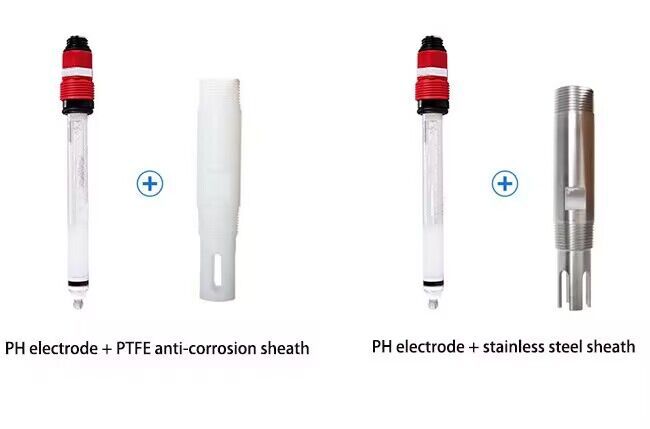

Optional Accessories

pH Calibration

1. A pH calibration is the procedure of adjusting the pH meter by measuring solutions of known pH values. The characteristic of a pH electrode will change with time due to electrode coating and aging. And even a pH electrode would be stable over time, pH electrodes cannot be produced with identical characteristics.
2. In practice the response of a real pH sensor does not exactly follow the Nernst equation. This difference between the theoretical and actual behavior of a pH electrode must be compensated for. A calibration is required to match the pH meter to the current characteristics of the used pH sensor.
