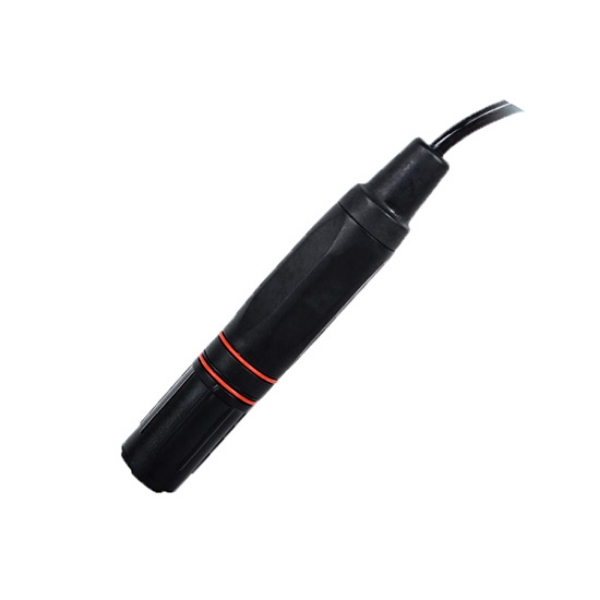

Digital pH Electrode for Water, RS485 Output

SKU: SUCH-PHS-PH8001
$261.46
● Measuring range 0-14pH, accuracy 0.02pH ● Temperature range 0~60℃ ● RS485 output, standard MODBUS-RTU protocol ● Power supply 6-30VDC, IP68
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

Digital pH electrode is suitable for a variety of water quality monitoring scenarios, using RS485 output, supporting standard MODBUS-RTU communication protocol, and achieving efficient data transmission. Its measurement range is 0-14pH, the temperature range is 0~60℃, and it has an accuracy of ±0.02pH and ±0.5℃. SUCH pH electrode has an IP68 protection level and can operate stably in underwater environments for a long time. It is widely used in aquaculture, water quality testing, environmental data collection and other fields.

Feature

  • Flat-head electrode design for enhanced impact resistance, suitable for long-term use in complex water environments.
  • Compatible with USA, NIST, and custom calibration solutions, meeting various industry standards and application needs.
  • Isolated power supply design with strong anti-interference capability, ensuring stable and reliable data transmission.
  • Supports automatic and manual temperature compensation, with a built-in temperature sensor for accurate pH measurement.

Detail

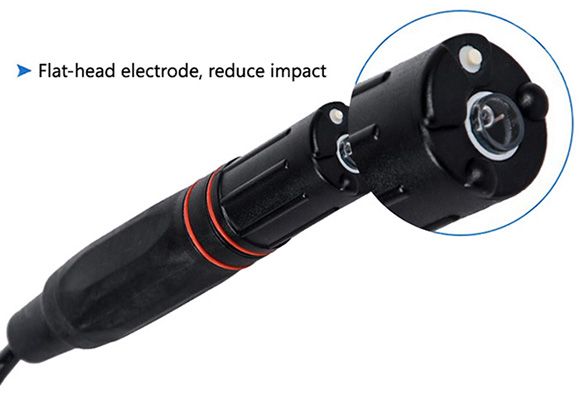

Digital ph electrode details

Wiring Instructions

Color Description
Red 12V+
Black GND
Green 485A
White 485B


PH electrod installation methods

  1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
  2. Flange mounted at the top
  3. Pipe installation
  4. Top installation
  5. Submersible installation
  6. Flow-through installation

 pH electrode installation

Specs
Measuring Range 0-14pH
Temperature Range 0~60℃
Measurement Accuracy 0.5℃, 0.02pH
Output Mode RS485
Communication Protocol Standard MODBUS-RTU protocol
Power Supply 6-30VDC
Cable Length 5m, others can be customized
Protection Level IP68
Application Aquaculture, water quality testing, information data collection, etc.
Application
Aquaculture industry

Aquaculture Industry

Water quality testing

Water Quality Testing

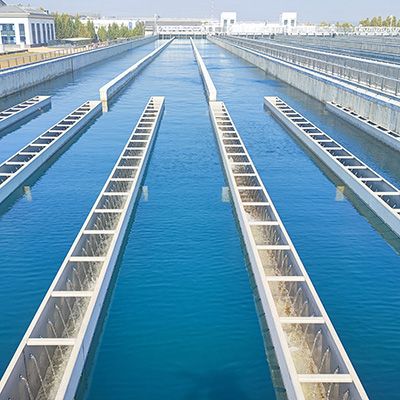

Water plant

Water Plant

FAQ

The electrode uses the standard MODBUS-RTU protocol on the RS485 bus, which can be easily integrated with the data acquisition system.

Yes, the electrode is IP68 rated and dustproof and waterproof.

The operating voltage range of the electrode is 6-30V DC, which can be flexibly deployed in different power supply environments.
