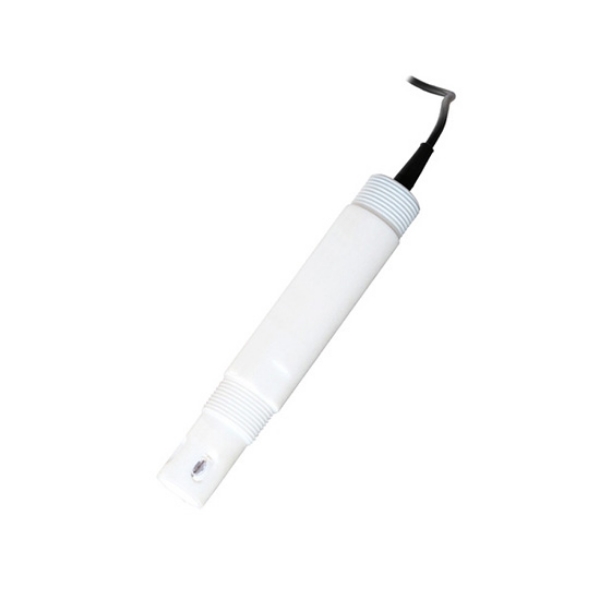

Industrial pH Electrode for Wastewater, PTFE Shell

SKU: SUCH-PHS-PH5013A
$189.73
● pH range 0-14, accuracy ±0.02 pH ● Temperature range 0~60℃ (32~140℉) ● Body material is PTFE ● Installation size: 3/4NPT in both ends
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

SUCH industrial pH electrode is used for highly corrosive wastewater. It uses a high-performance PTFE (polytetrafluoroethylene) shell, has excellent chemical corrosion resistance, and can work under strong acid and alkali conditions. The electrode measurement range covers 0 to 14 pH, with an accuracy of up to ±0.02 pH. Its applicable temperature range is 0-60℃ (32-140℉), which can meet the temperature control requirements of most industrial sites. PTFE pH electrode is widely used in environmental protection, chemical, textile, papermaking, metallurgy, electroplating and other industries.

Feature

  • Resistant to strong acids and alkalis with excellent corrosion resistance.
  • Low-impedance glass membrane ensures fast response and high accuracy.
  • Provides precise and stable measurements in complex wastewater environments.
  • High-quality low-noise cable supports long-distance signal transmission.
  • Ring-shaped PTFE salt bridge and PTFE liquid junction are clog-resistant and maintenance-free.
  • Durable polyester lead wire resists cracking and water ingress, suitable for harsh industrial conditions.

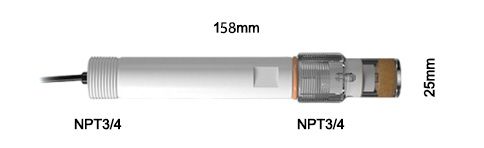

Dimension (Unit: mm)

Industrial pH electrode dimension

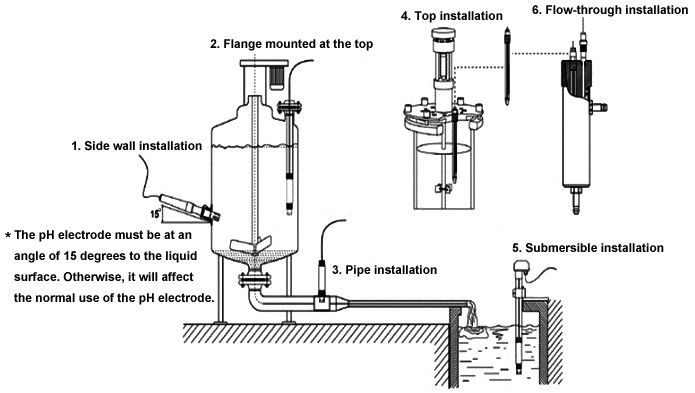

Installation Methods

  1. Side wall installation (*The pH electrode must be at an angle of 15 degrees to the liquid surface. Otherwise, it will affect the normal use of the pH electrode.)
  2. Flange mounted at the top
  3. Pipe installation
  4. Top installation
  5. Submersible installation
  6. Flow-through installation

Industrial pH electrode installation

Specs
Measuring range 0-14pH
Accuracy 0.02pH
Temperature range 0-60℃ (32-140℉)
Temperature compensation * Internal temperature sensor (NTC 10K)
Zero position 7±0.3pH
Pressure resistance 0.3MPa
Response time 15s
Installation size 3/4NPT in both ends
Shell material PTFE
Connection Direct lead
Cable length * 5m/10m/15m, or other length less than 50m (need customization)
Weight 1kg
Dimension Length: 158mm, diameter: 25.4mm
Application
Petroleum industry

Petroleum Industry

Chemical industry

Chemical Industry

Electroplating industry

Electroplating Industry

FAQ

This electrode is suitable for strong acid and alkali environments, especially for industrial wastewater with strong corrosiveness and complex components such as chemical waste liquid, dyeing and finishing wastewater, and electroplating wastewater.

This pH electrode uses high-quality low-noise cables, supports stable signal transmission of more than ten meters or even farther, has strong anti-interference performance, and is suitable for long-distance installation.

The recommended operating temperature range is 0~60℃. If higher temperature applications are required, please choose a high-temperature electrode model.
