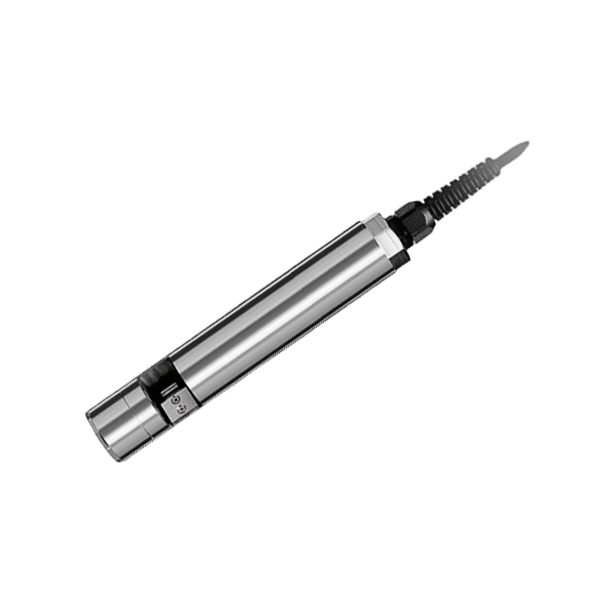

Water Quality Chroma Sensor, 0~500 NTU, 0~500 Hazen

High-performance water quality chroma sensor delivering precision and stability in water measurement. Wide 0–500 Hazen/NTU range covers diverse water conditions. ±2% FS accuracy meets user standards. Supports 12V/24V DC power and RS-485 communication. Combines optical absorption and dual-wavelength measurement technology for municipal water supply, wastewater treatment, industrial circulating water, and more.

Feature

• The water quality sensor is equipped with a self-cleaning function that removes deposits from water samples, thereby eliminating the need for maintenance.
• Coherent detection technology ensures high accuracy and stability, requiring no chemical reagents, causing no secondary pollution, and enabling rapid measurement.
• The SUCH chroma sensor features turbidity compensation to minimize the impact of turbidity in water samples on measurement results.
• The stainless steel housing boasts an IP68 waterproof rating, enabling long-term underwater operation.

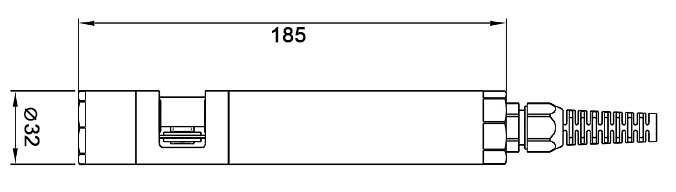

Dimension (unit: mm)

Detail

• High-Sensitivity Probe: Each probe undergoes sensitivity testing before shipment to ensure compliance with chroma sensor accuracy requirements.
• Threaded Connection: Precision-engineered with insulating materials to extend sensor service life.
