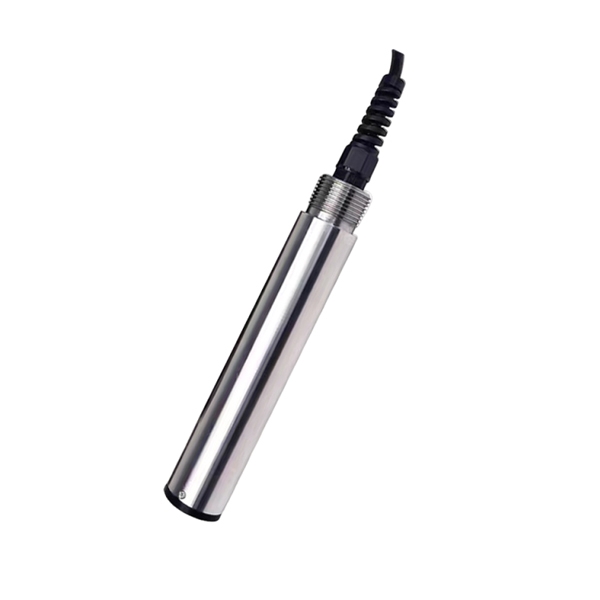

Water Quality Suspended Solids Sensor, 0.5~2000mg/L

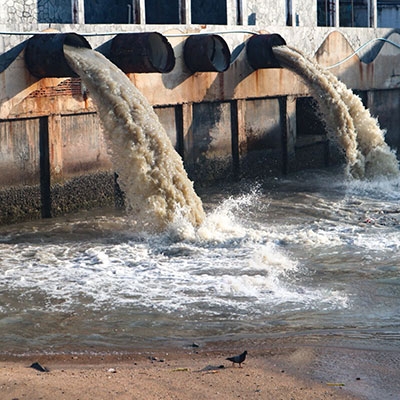

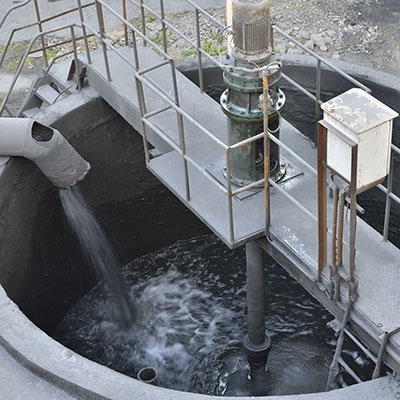

High performance water quality suspended solids sensor available for sale, with power consumption not exceeding 0.5W. Equipped with a detection range of 0.5–2000 mg/L and resolution as high as 0.1 mg/L, it can clearly capture minute changes in suspended solids in water bodies. The plug-and-play RS485 communication method facilitates user installation and integration, making it widely applicable for wastewater treatment, industrial circulating water, and online monitoring systems.

Feature

• The suspended solids sensor utilizes high-precision components, advanced manufacturing processes, and surface-mount technology. Featuring an IP68 waterproof rating and seawater-resistant cables, it can be directly submerged in water without requiring a protective housing, ensuring long-term stable operation.
• The water quality sensor probe employs fluorescent tracer measurement, capturing faint fluorescent signal intensity in water and comparing it to internal calibration values to calculate chemical concentration in water samples. Linearized processing ensures stable, high-precision signal output.
• SUCH suspended solids sensor features up to four isolation points, making it immune to ambient light interference and capable of withstanding complex on-site disturbances. Its electrodes utilize premium low-noise cables, enabling signal transmission distances exceeding 20 meters.

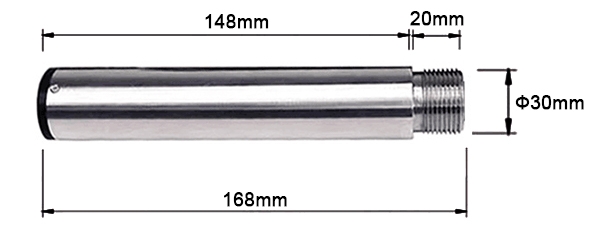

Dimension (unit: mm)

Usage Precautions

• To ensure accurate measurement by the suspended solids sensor electrodes in pipelines, prevent bubbles from forming in the measurement chamber to avoid data inaccuracies.
• Never connect power while wiring. Only apply power after wiring is complete and verified.
• Do not alter factory-welded components or wiring of the water quality sensor during use.
• As a precision device, do not disassemble the sensor or expose its surface to sharp objects or corrosive liquids to prevent damage.

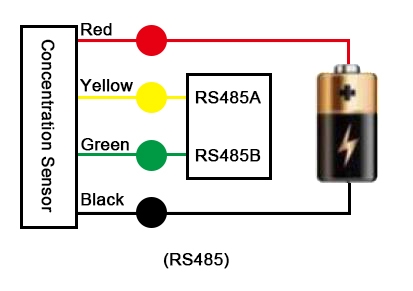

Wiring Diagram
