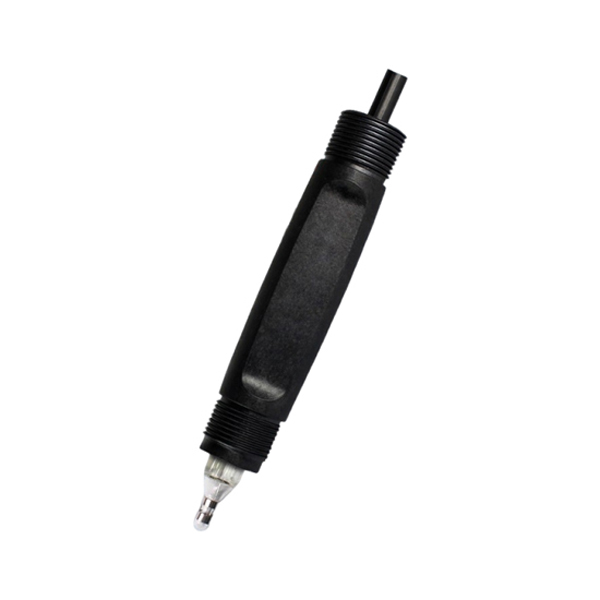

Water Quality Dissolved Ozone Sensor, 0~20 mg/L

The SUCH dissolved ozone sensor is on hot sale. Featuring high ozone detection accuracy with a measurement range of 0~20 mg/L, it incorporates an internal temperature measurement module covering −10°C to 110°C with automatic/manual temperature compensation. The water quality sensor supports an RS-485 interface and MODBUS-RTU communication protocol. It features PG13.5 / 20*1.5 threaded mounting for easy installation and maintenance, suitable for drinking water, wastewater treatment, circulating water, and disinfection equipment.

Feature

The SUCH water quality dissolved ozone sensor is a digital sensor integrating electronic circuits and a microprocessor within the sensor body, commonly referred to as a digital electrode. It features the following features:

• RS485 transmission interface with MODBUS-RTU communication protocol and bidirectional communication.
• Power supply and output isolation design ensures electrical safety.
• Built-in protection circuit enhances anti-interference capability to adapt to complex environments.
• Simple and user-friendly communication protocol, capable of outputting more electrode diagnostic information for enhanced intelligence.
• Low-power design accommodates a wider range of applications; internal memory retains calibration and configuration data during power loss.

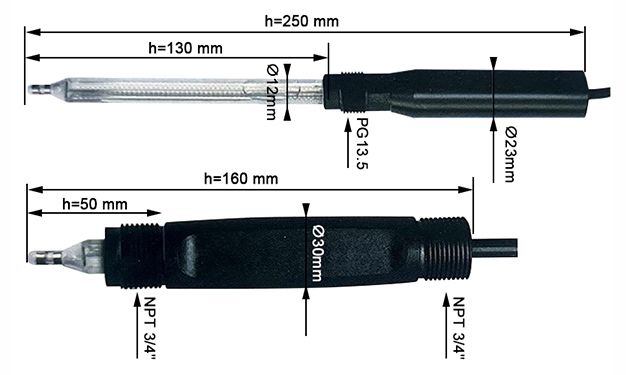

Dimension (unit: mm)

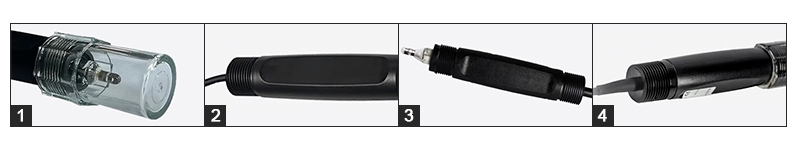

Detail

1. The three-electrode measurement method requires no reagents, is pollution-free, more environmentally friendly, and delivers more stable and accurate data.
2. The top and bottom 3/4 NPT threads facilitate easy installation. The electrodes utilize high-quality low-noise cables with a standard 5m length, while custom lengths are available upon request.
3. The water quality sensor supports RS485 signal output.
4. The dissolved ozone sensor features low-voltage power supply and low power consumption, with power consumption as low as 0.5W.

Wiring Diagram
