    Picture of Water Quality Oil in Water Sensor, 0~40 mg/L Picture of Water Quality Oil in Water Sensor, 0~40 mg/L Picture of Water Quality Oil in Water Sensor, 0~40 mg/L

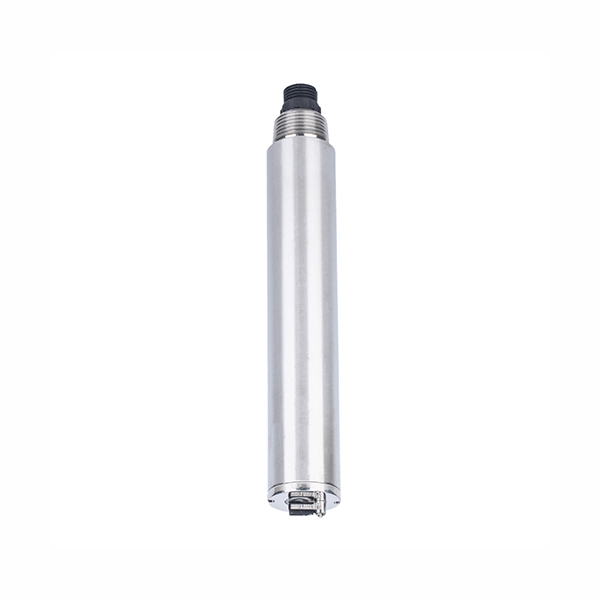

    Water Quality Oil in Water Sensor, 0~40 mg/L

    0 review(s) | Add your review
    SKU: SUCH-WQS-406
    $1,825.39
    ● 0~40 mg/L ● 0.01 mg/L resolution ● RS485, 4-20mA ● Fluorescence method
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The professional oil-in-water sensor has a high-precision detection range of 0–40 mg/L with a resolution of 0.01 mg/L and an accuracy of ±3%, enabling stable monitoring of trace oil contamination. The water quality sensor supports RS485 and 4–20 mA output for easy integration into monitoring platforms. Constructed with 316L stainless steel housing and IP68 protection rating, it is designed for long-term submerged operation.

    Feature

    Oil in water sensor feature

    • Water quality oil-in-water sensors utilize advanced UV LED light sources, delivering high stability, extended lifespan, and minimal drift for reliable, precise long-term monitoring.
    • These sensors feature simple installation and user-friendly operation, supporting RS-485 (Modbus/RTU) and 4-20mA outputs for seamless integration into various water quality monitoring systems.
    • The AC-driven design of the SUCH oil-in-water sensor effectively filters out natural light interference, guaranteeing consistent readings.
    • The entire unit operates rapidly, stably, and is easy to maintain, making it a high-quality online water quality monitoring sensor that combines performance with reliability.

    Dimension (unit: mm)

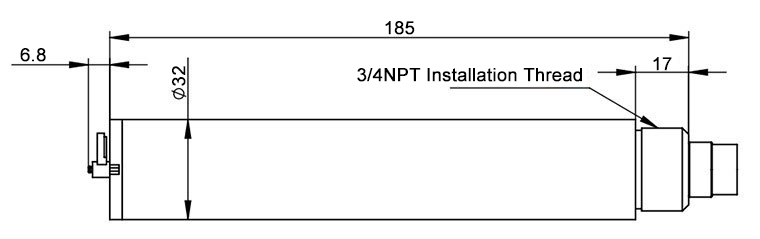

    No Cleaning Brush

    Oil in water sensor dimension

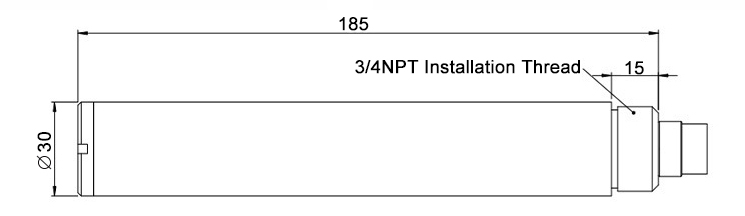

    With Cleaning Brush

    Oil in water sensor with cleaning brush dimension

    Wiring Diagram

    Function Line Color Specifications
    Power Supply Red Power Supply (12~24VDC)
    Power Supply Black GND
    Communication Blue 485-A
    Communication White 485-B
    Communication Yellow Current Output (Optional, leave floating if not used)

    Note

    Installation Distance Requirements: Maintain a minimum clearance of 2 cm from side walls and 10 cm from the bottom.

    Wiring Instructions: Considering cables may be submerged in water (including seawater) or exposed to air for extended periods, all wiring connections must be waterproofed. User cables should possess adequate corrosion resistance.

    Troubleshooting and Solutions

    Issue Possible Causes Solution
    The operating interface cannot connect or display measurement results Controller connection error with cable Reconnect the controller and cables
    Cable malfunction Please contact us
    Measurement values are excessively high, excessively low, or persistently unstable Foreign object adhering to sensor window Clean the sensor window surface
    Specs
    Measurement Principle Fluorescence method
    Range and Resolution 0~40 mg/L
    Resolution 0.01 mg/L
    Accuracy ±3% of reading
    Response Time T90<30s
    Min Detection Limit 0.4 mg/L
    Calibration Method Two-point calibration
    Cleaning Method None/with cleaning brush (optional)
    Temperature Compensation Automatic temperature compensation (Pt1000)
    Output Method RS485 (Modbus RTU), 4–20 mA (optional)
    Storage Temperature -5 to 65°C
    Operating Conditions 0 to 50°C, ≤0.2 MPa
    Housing Material 316L
    Mounting Method Submersible installation, 3/4 NPT
    Power Consumption 0.2W @ 12V
    Power Supply 12 to 24V DC
    Protection Rating IP68
    Application

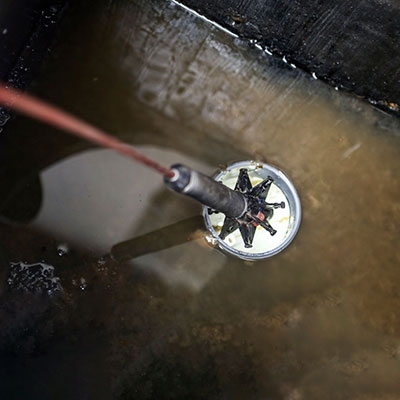

    Monitoring of oily wastewate

    Monitoring of Oily Wastewater

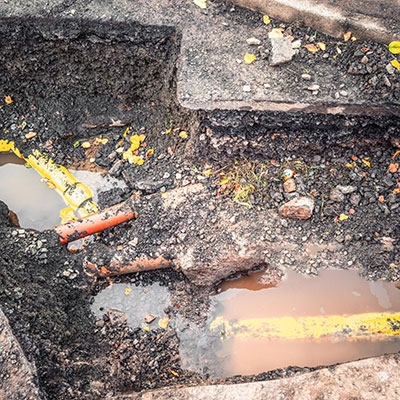

    Oil spill in groundwater

    Oil Spill in Groundwater

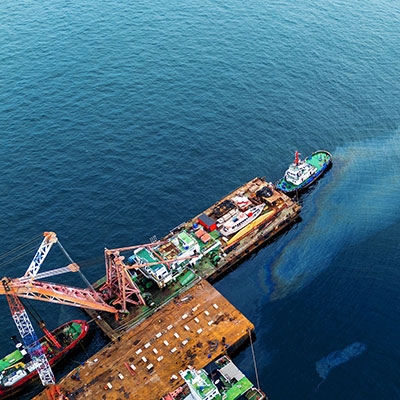

    Ship engine room waste oil

    Ship Engine Room Waste Oil

    FAQ
    ❯

    Oil-in-water sensors utilize the characteristic that soluble oils exhibit absorption and emission peaks in their spectra. When monochromatic light matching the absorption peak of soluble oils is irradiated into water, the soluble oils absorb the monochromatic light energy and release monochromatic light at another wavelength corresponding to their emission peak. The intensity of light emitted by the soluble oils is directly proportional to their concentration in the water.

    ❯

    Oil-in-water sensors detect oil content in water in real time, identifying different forms such as emulsified oil, dispersed oil, and dissolved oil. This enables users to monitor water quality changes and prevent pollution spread. These sensors are widely used in industrial wastewater, oilfield produced water, and ship discharge monitoring to ensure water quality meets environmental discharge standards.

    ❯

    Most oil-in-water sensors feature an IP68 or equivalent protection rating, enabling long-term submerged operation and adaptability to complex environments like sewage or seawater. Their corrosion-resistant structural design ensures stable performance in demanding settings such as mining sites and chemical plants.
