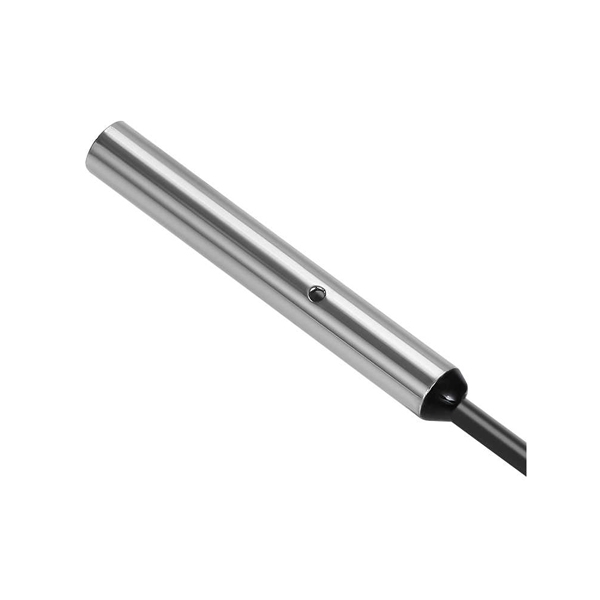

4mm 2 Wire Inductive Proximity Sensor, NPN/PNP, NO/NC

SKU: SUCH-IPS-I4

$39.95

● NPN/PNP/2 wire output methods ● Red LED indicates sensor status ● High repeat positioning accuracy ● Shockproof, dustproof, waterproof, oil-proof

Specification Selection *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

4mm inductive proximity sensor for magnetic metals (for non-magnetic metals, the detection range is reduced). With a long lifespan, shielded type installation, anti-interference capability, 1mm detection distance, and IP67 protection rating, the miniature proximity switch is suitable for the precise positioning of molds, precision machine tools, and robots.

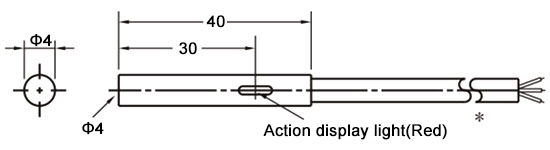

Dimension (Unit: mm)

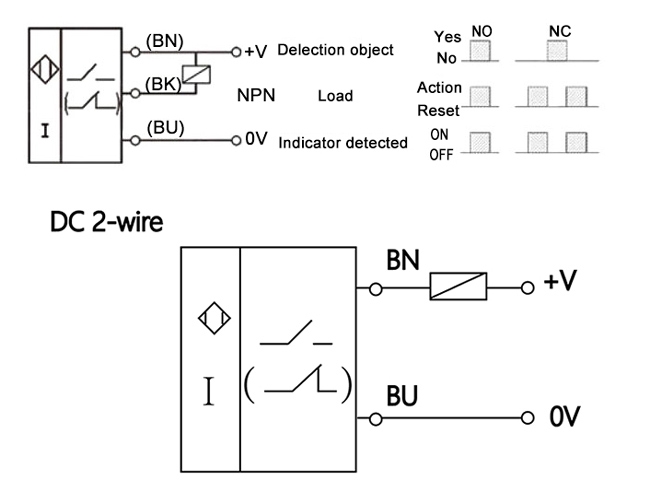

Wiring Diagram

Specs

Installation type			Shielded
All the output methods	DC type	NPN	NO
			NC
		PNP	NO
			NC
		2 wire	NO
Detection range			1mm±10%
Setting distance			0-0.7mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 551mm
Response frequency			DC: 2kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Application

Automated Production

Machinery and Machine Tool Industry

Automotive Manufacturing

FAQ

Q1: What types of metal objects can the 4mm 2-wire inductive proximity sensor detect? ❯

The inductive proximity sensor is designed to detect all types of metal targets, including steel, iron, aluminum, and other conductive metals. Detection distance may vary depending on the material and size of the target.

Q2: How do I choose between NO and NC output modes on this 2-wire inductive sensor? ❯

The inductive sensor supports both normally open (NO) and normally closed (NC) configurations. You can select the mode based on your control system requirements—NO is typically used for general detection, while NC is preferred for safety-critical applications.

Q3: Can the 4mm inductive proximity sensor work with both NPN and PNP control systems? ❯

Yes. Although it is a 2-wire sensor, it is designed to be compatible with both NPN and PNP inputs, making it easy to integrate into a wide range of PLCs and automation controllers.
